CAME AGTLHSAKIT Headset Intercom Kit (8K40CA-030)

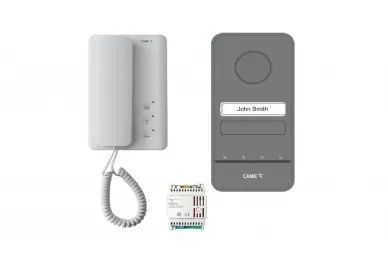

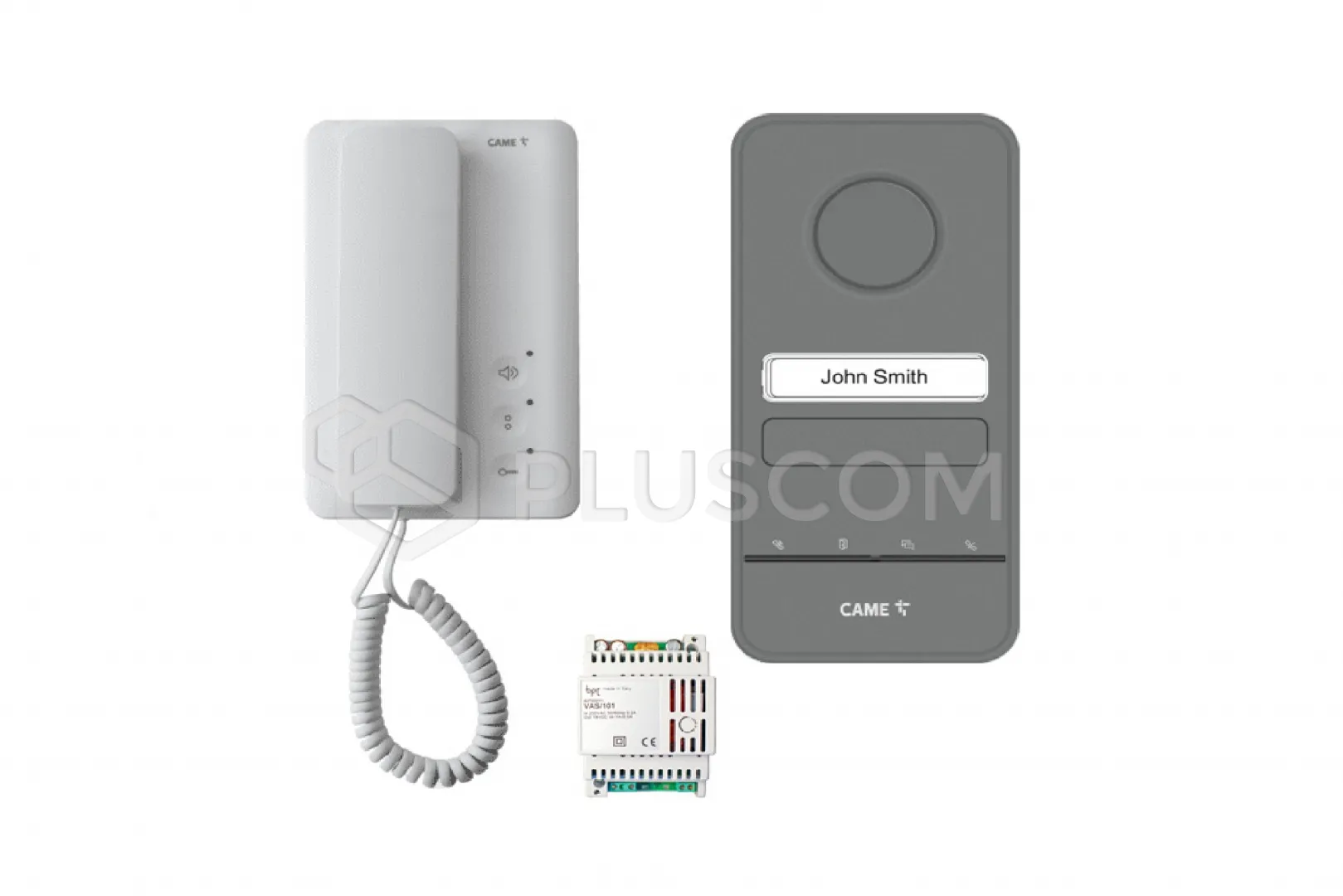

The kit includes:
- AGT A Headset Audio Receiver
- LHS A Audio Input Panel

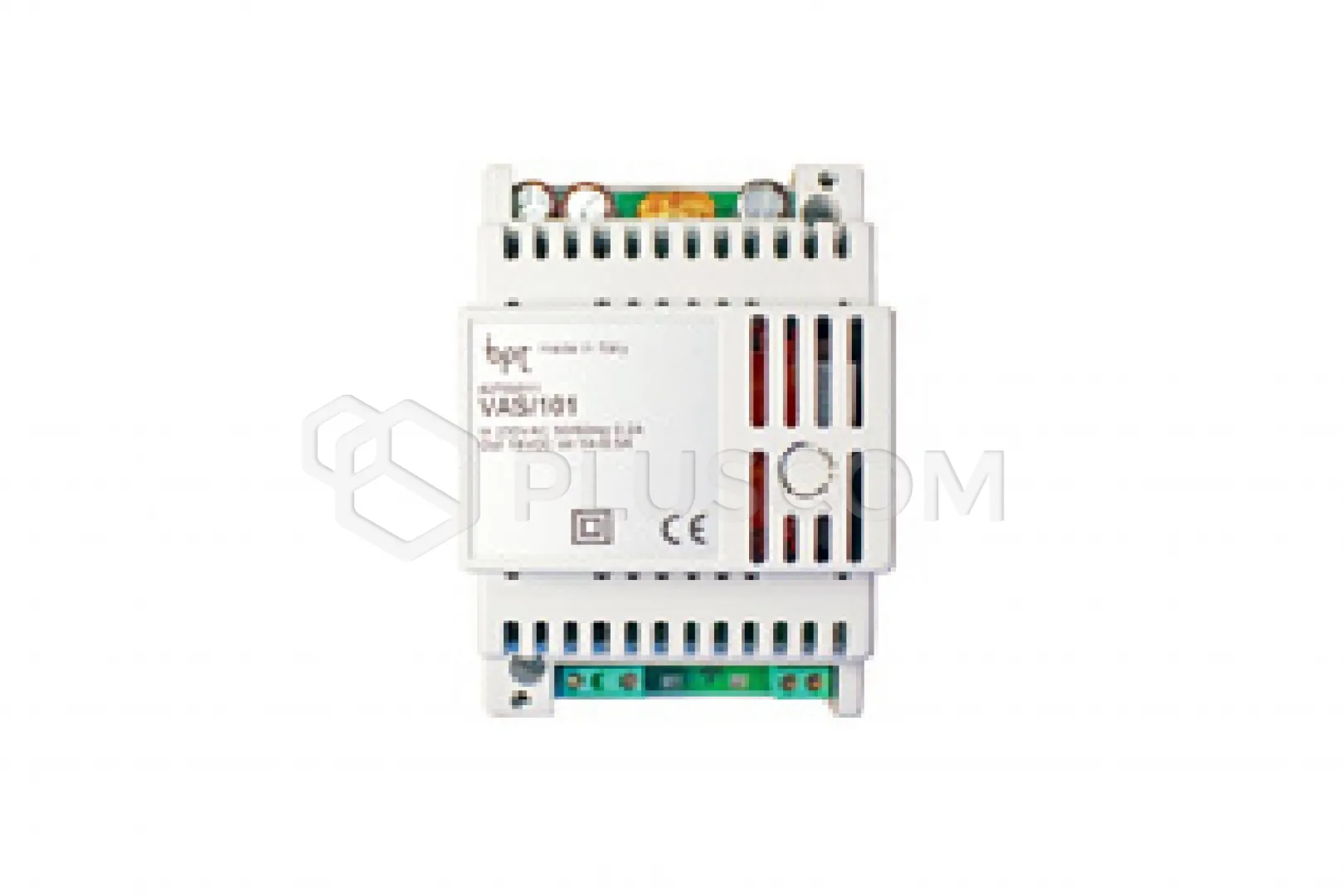

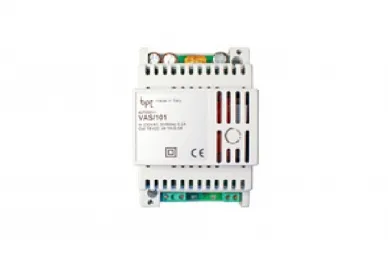

- VAS/101 0.6 A Power Supply
|
CAME AGTLHSAKIT Intercom headset (8K40CA-030)
|
Headset intercom with Soft-Touch buttons, white. Equipped with a button
to adjust/turn off the ringer.
A surface-mounted intercom equipped with 3 main Soft-Touch buttons for opening
the door, programmable auxiliary command and adjusting/switching off the bell
(with LED signaling when it is off).
Allows you to manage the "open gate" function and display the status
of the controlled gate using a signaling LED.
Compatible with the X1 and XIP systems.
The LHS series external panel is an ideal solution for single-family houses and
small multi-apartment estates.
The construction made of a zinc aluminum alloy (ZnAl) guarantees excellent
resistance to impact and weather conditions.

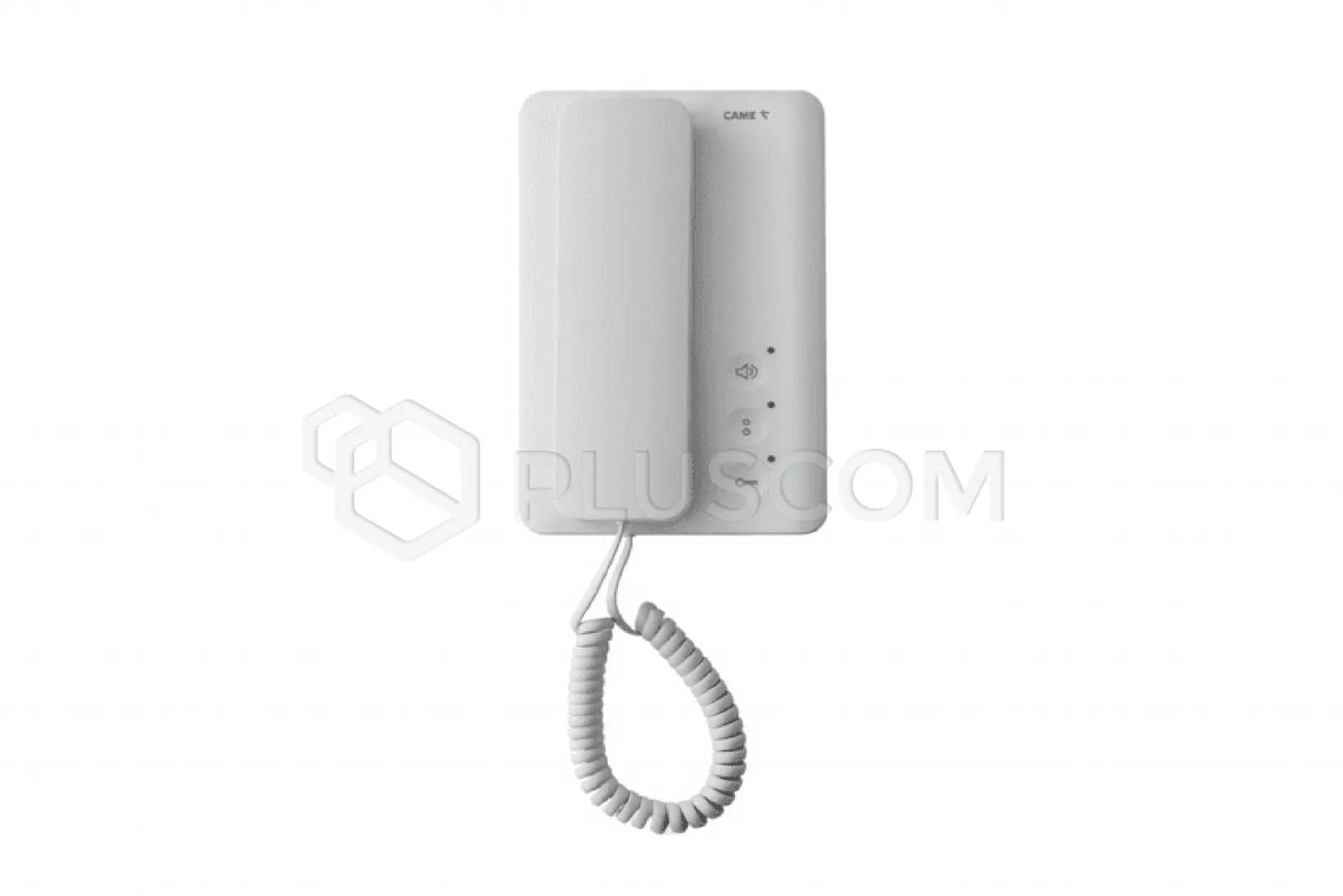

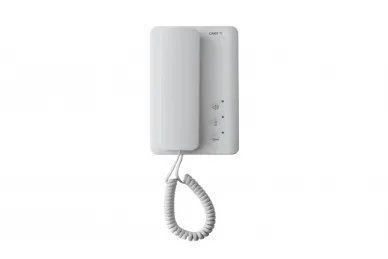

Headphone panel
AGT A (840CA-0040) - Headphone internal audio panel
with Soft-Touch buttons, 1 programmable AUX button, white. Equipped with a
button for adjusting/switching off the bell. Surface-mounted intercom equipped
with 3 main Soft-Touch buttons allowing you to open the door, programmable
auxiliary command and adjust/turn off the bell (with LED signaling when it is
off).

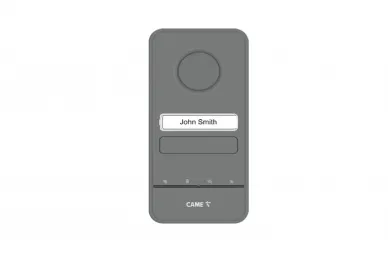

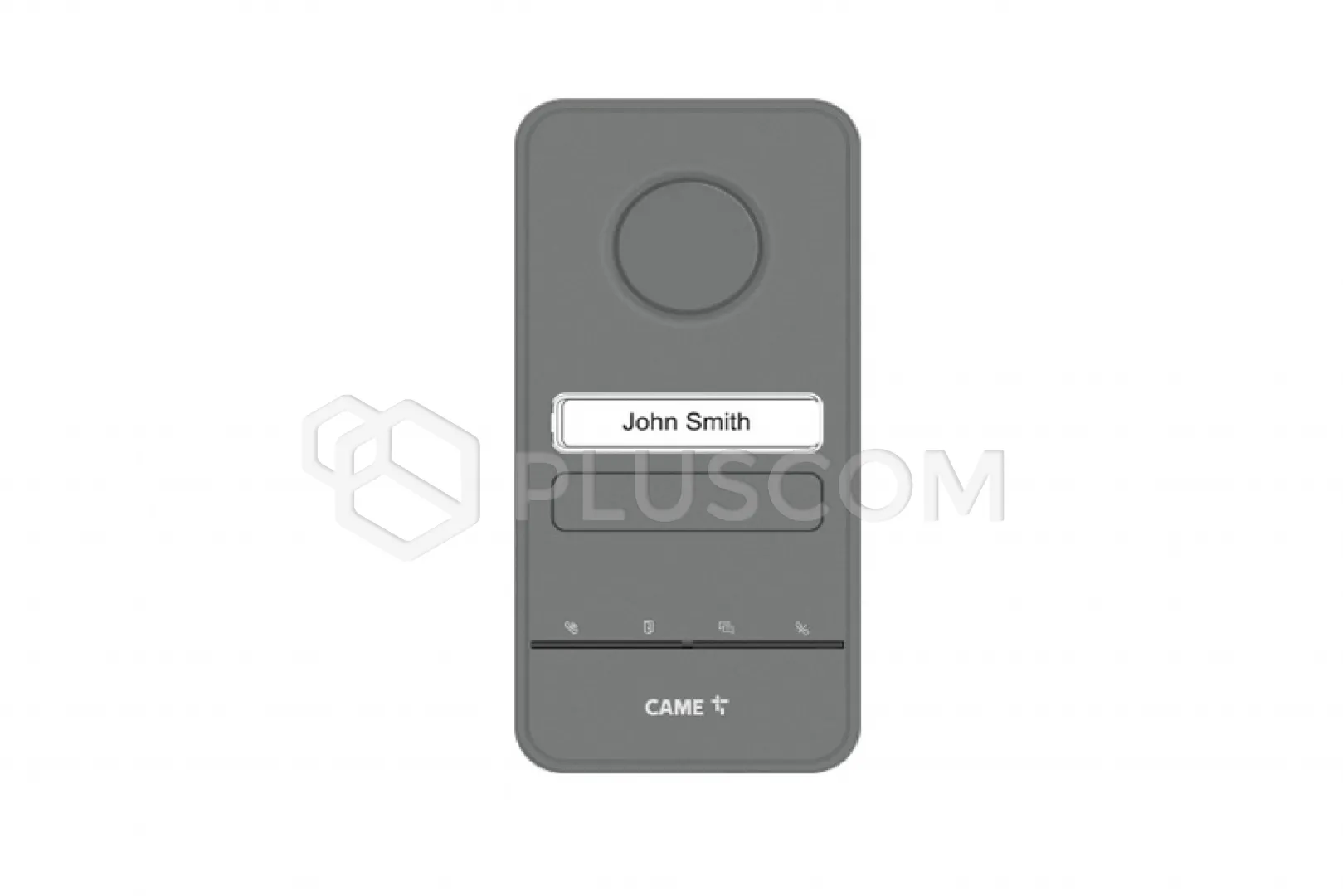

External panel
LHS A/01 (840AA-0060) - The LHS series external panel is
an ideal solution for single-family houses and small multi-apartment estates.
The construction made of a zinc-aluminum alloy (ZnAl) guarantees excellent
resistance to impacts and atmospheric factors. LHS series panels provide a very
high level of vandal resistance (IK09) and resistance to water and dust
penetration (IP54).
FEATURES:
- Headphone receiver
- Surface mounting (thickness with handset 44.5 mm) or on a desk stand
- Colour white, matte finish
- LATCH function - gate opening signalling with LED diode
- Programmable call melodies
- Call sound volume adjustment (only call sound signalled by LED
diode)
- AUX2 function button (Porter call)
- Dimensions of the audio version: 116 x 190 x 44.5 mm
LHS series panels provide a very high level of vandal resistance (IK09)
and resistance to water and dust penetration (IP54).
Technical data:
- Dimensions (mm): 116 x 190 x 44.5
- Power supply from the bus (V): 15 ÷ 20 DC
- Current consumption from the bus (mA): 30
- Current consumption in stand-by mode [mA]: 1
- Operating temperature (°C): +5 ÷ +40
- Protection class: IP30
- Color: white
Suitable for surface mounting in a 503 housing (vertical or horizontal)
and in a Ø 60 mm round housing.
Characteristics:
- Monolithic external panel made of ZnAL casting
- Manually programmed or via the CAME SetUp application (Adndroid / iOS)
via the CAME KEY interface
- Expandable to 4 call buttons
- Intercom call support
- Call buttons with white LED backlight
- Voltage output for electric strike
- Relay output for gate automation control
- Mechanical resistance IK09
- IP54 water and dust protection level
- Dimensions in flush mounting: 135x243x11
- Dimensions in surface mounting: 97x205x23
