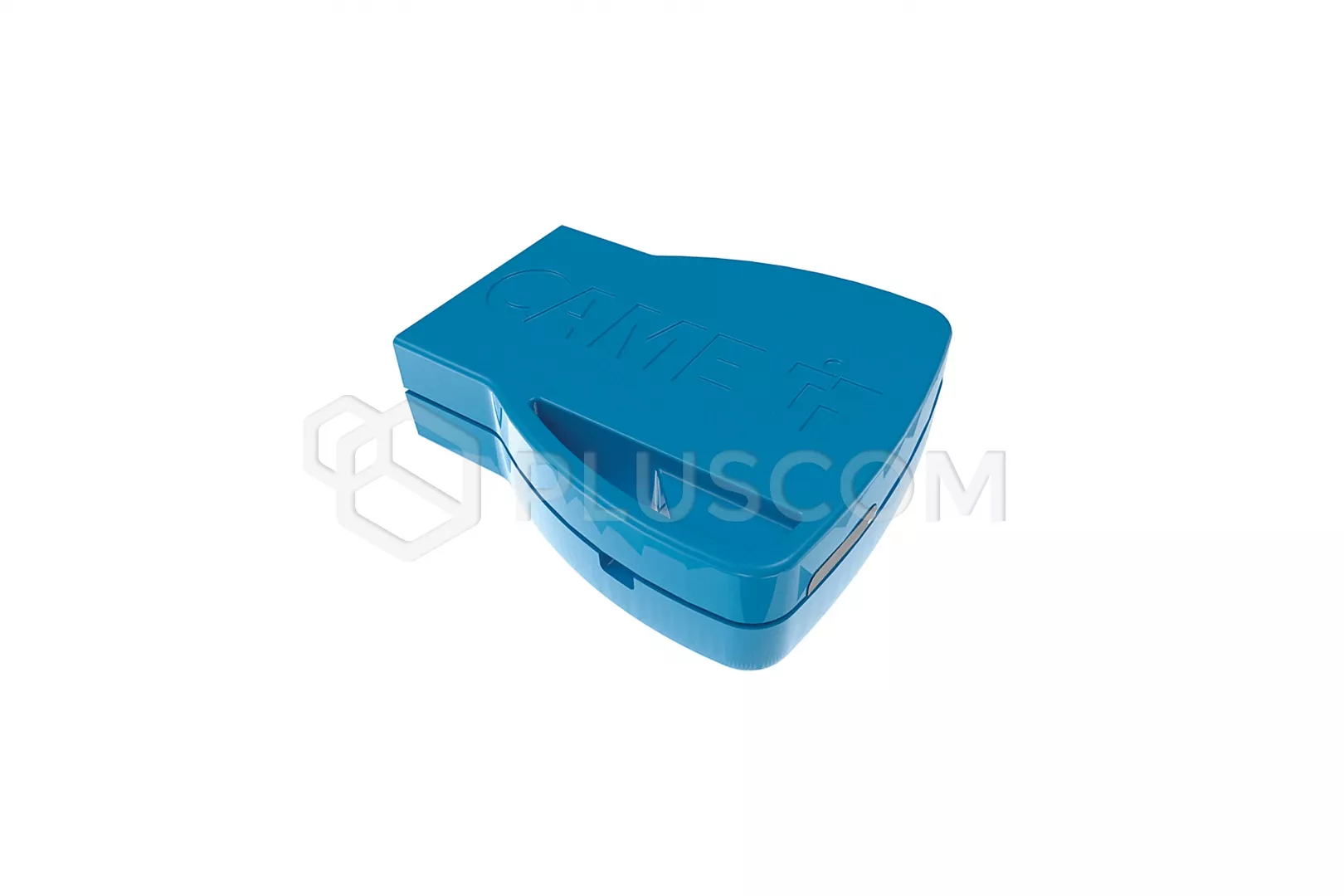

Came 806SA-0150 Came KEY Radio executive module

Came 806SA-0150 Radio module for remote management of automation 869.5 MHz

Executive module for controlling CAME drives via CAME Connect (phone, tablet, web control).
CAME CONNECT user, thanks to the application for the phone or tablet he can manage devices connected to the cloud, check their status remotely operate them (e.g. opening gates and roller shutters using the application), implement and change the assumed scenarios. The devices themselves inform the user and installer about the failure or necessity review.
The module is equipped with a quick coupler, thanks to which the installation is extremely easy and fast. It can only be used on CAME drives with a connector RSE and CAME Connect that supports connectivity. They work in a similar way as RSLV modules, however the KEY Slave can only control one drive, to which it is connected to.

CAME KEY Slave requires an internet gateway, i.e. a master module, e.g. RGSM001, QBE or RETH, with which it communicates wirelessly on a frequency 868MHz. Within one master module, you can use up to 5 devices executive (RSLV or KEY Slave).

Technical data:

• Power supply: 5V DC
• Current consumption: 500mA
• Radio signal strength at 869.5 MHz: 14dBm
• Radio signal range 869.5 MHz: 100m
• Degree of protection: 30IP
• Working temperature: -20 ° C to + 70 ° C
