CAME 801MV-0010 VER10DMS 24V actuator with control unit for a maximum gate area of ​​18m2

343,92 EUR including 23.00% VAT
Product code: #26087
Manufacturer: CAME
  • Gate area: up to 18m2
  • Power supply: 230V
  • Engine power supply: 24 V
  • Thrust force: 1000 N
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came V 0688 Rail with strap 4.02m Came V 0686 Rail with strap 3.52m Came V 0685 Rail with strap 3.02m Came V 0683 Chain rail 4.02m Came V 0682 Chain rail 3.52m Came V 0679 Chain rail 3.02m long Came V005 Chain Rail Extension 1.45 m Came V122 Transmission arm for sectional doors Came V121 External actuator release with 3 m cable Came PL0243 Key operated emergency release mounted on the gate

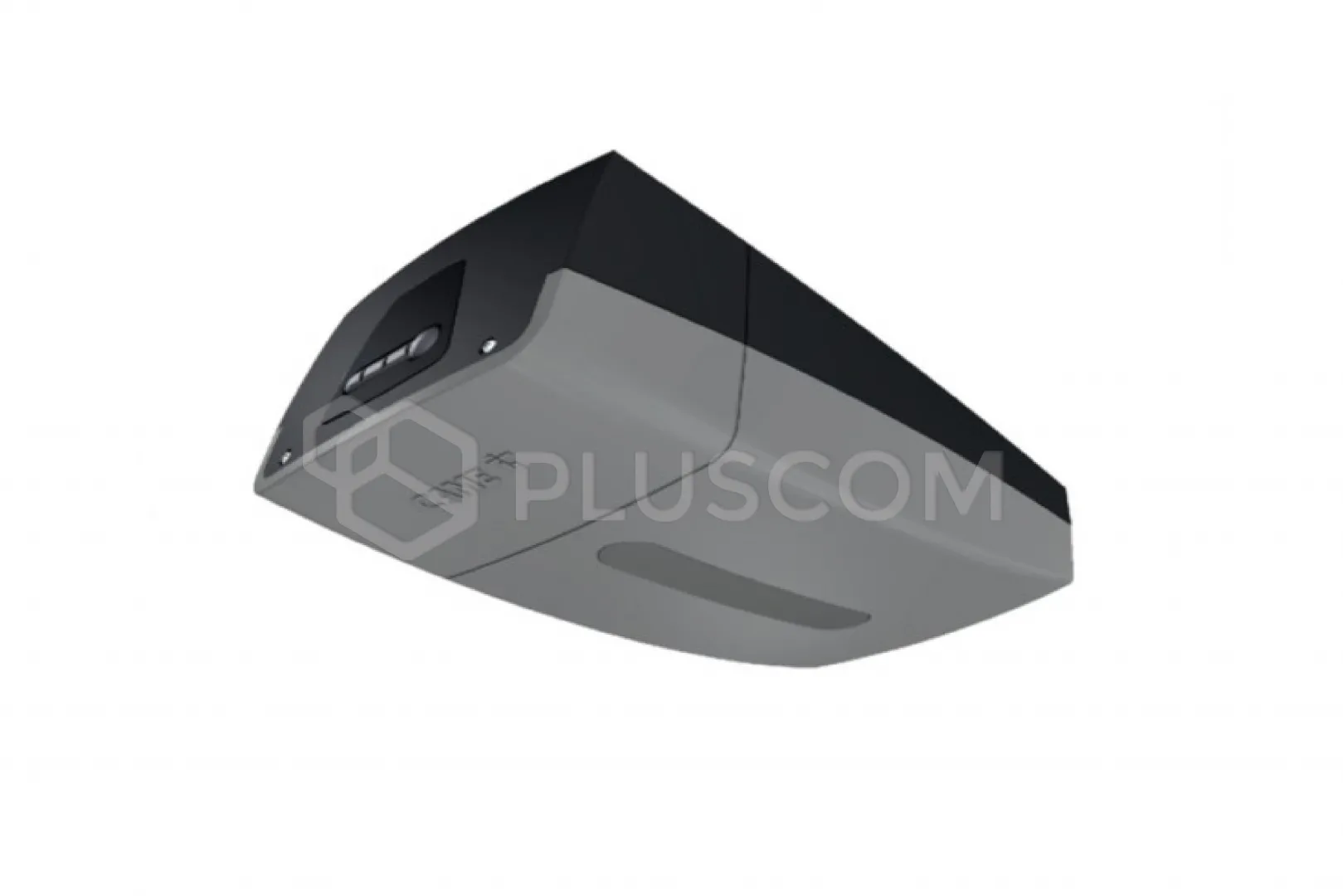

CAME 801MV-0010 VER10DMS 24V actuator with control unit for a maximum gate area of ​​18m2


VER PLUS 10 VER10DMS Motors - Thanks to the VER system, garage door automation has become very simple. Simply connect the drive rail to the motor, and the operator is ready for installation.
VER is quick to install and requires no modifications to the door, as it is mounted to the lintel and ceiling, halfway across the door's width.

All VER series motors are powered by 24V, making them not only affordable but also very safe. The motor is simple to design and install.
The drive rails (available in several versions) are also ready for use. We supply them in lengths suitable for various door heights.

FEATURES:

  • Self-coding between transmitter and receiver
  • Amperometric obstacle detection: adjustable with a trimmer
  • Stops gate movement with the remote control
  • Moving gate safety. Open/close commands are ignored if an obstacle is in the gate opening.
  • Emergency power supply thanks to the connected V0670 card

Inside the actuator housing, there is space for installing the card and emergency batteries that power the motor during power outages. 24V total safety. The control board built into the unit powers the motor and all accessories with low voltage.

Technical Specifications:

  • Protection Rating: IP40
  • Power Supply: 230V AC 50/60Hz
  • Motor Power Supply: 24V DC
  • Maximum Current Consumption: 6A
  • Maximum Motor Power (W): 180
  • Operating Temperature (°C): -20 - +55
  • Travel Speed: 7m/min.
  • Thrust Force: 1000N
