BFT 2614874 Set of self-locking actuators for swing gates KUSTOS BT B40 INT

1243,39 EUR including 22.00% VAT
Product code: #38810
Manufacturer: BFT
  • Max. leaf length: 4m
  • Max. leaf weight: 700kg
  • Engine power supply: 24V
  • Included with remote controls, lamp, control unit and photocells
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2614874 Set of self-locking actuators for swing gates KUSTOS BT B40

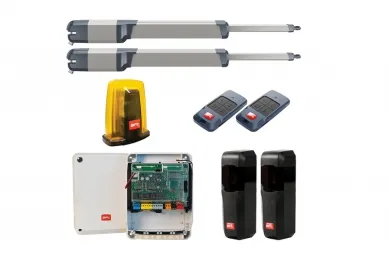

SET INCLUDES:

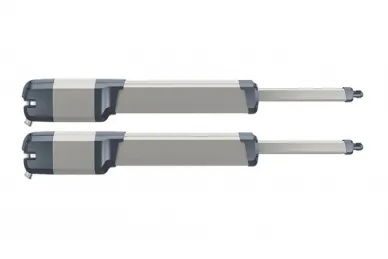

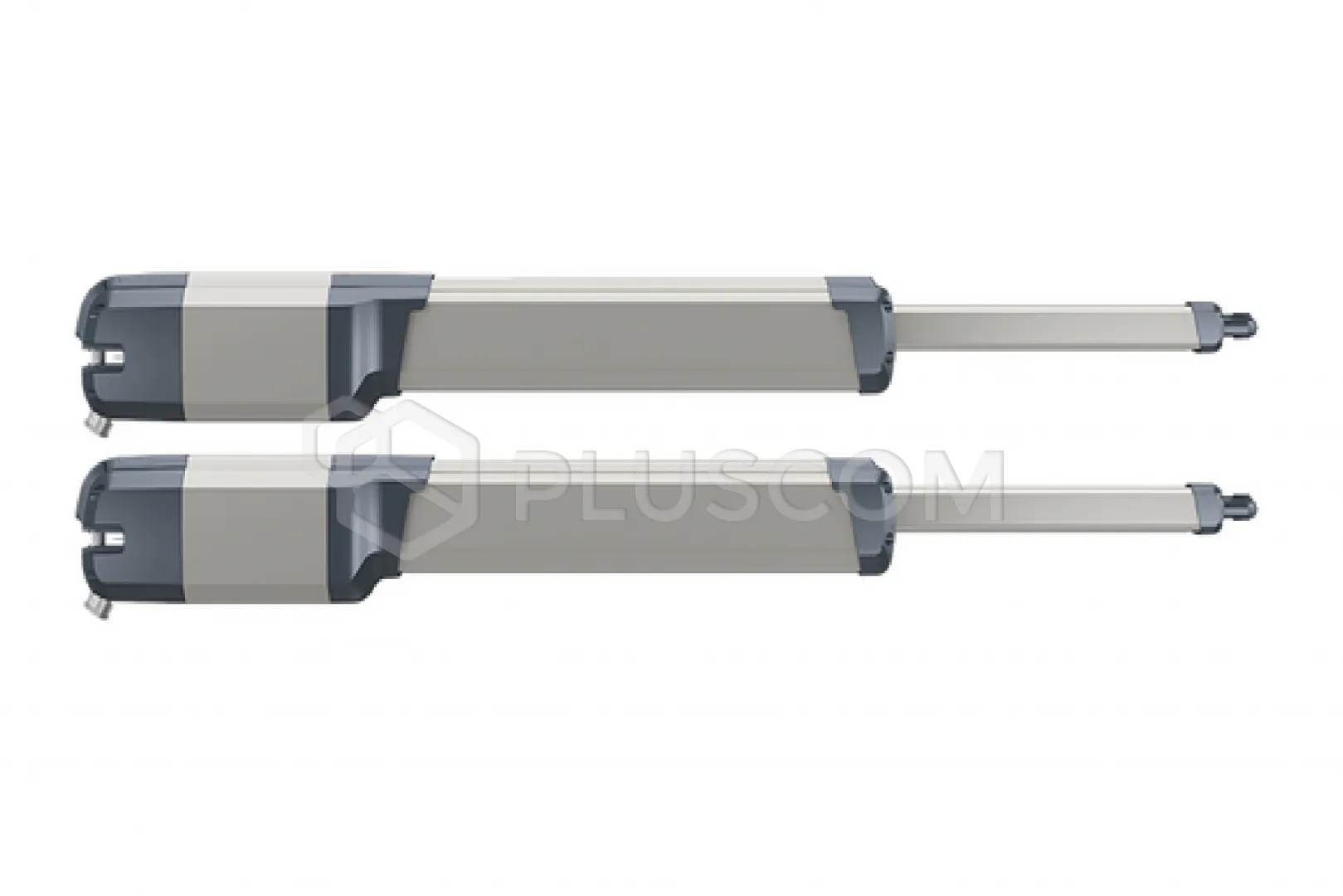

  • 2 x KUSTOS Ultra BT B40 actuator

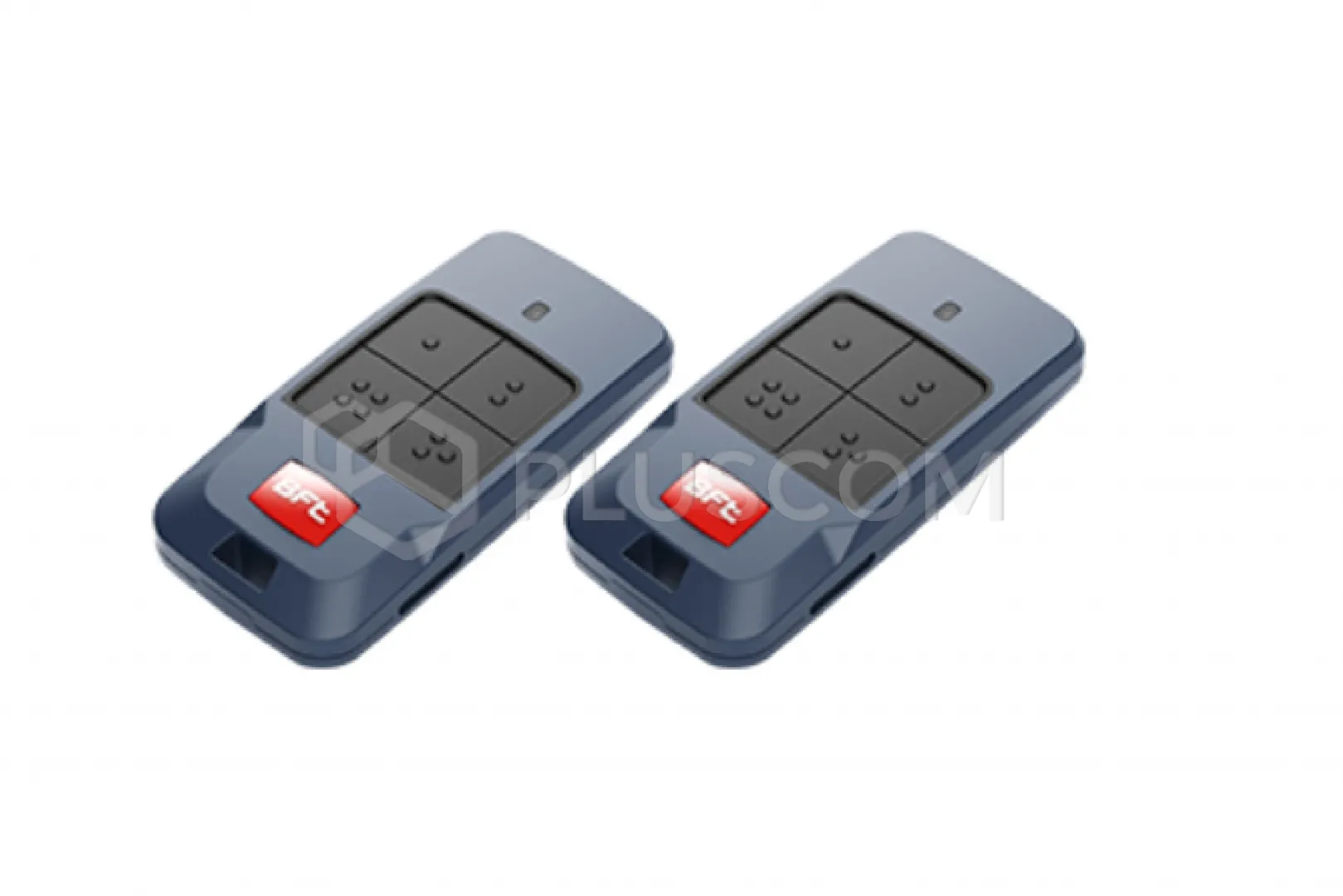

  • 2 x MITTO COOL C4 remote control

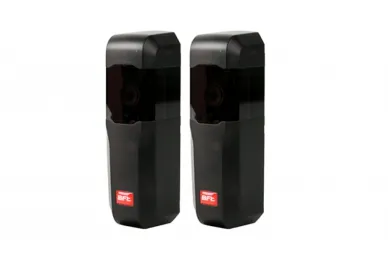

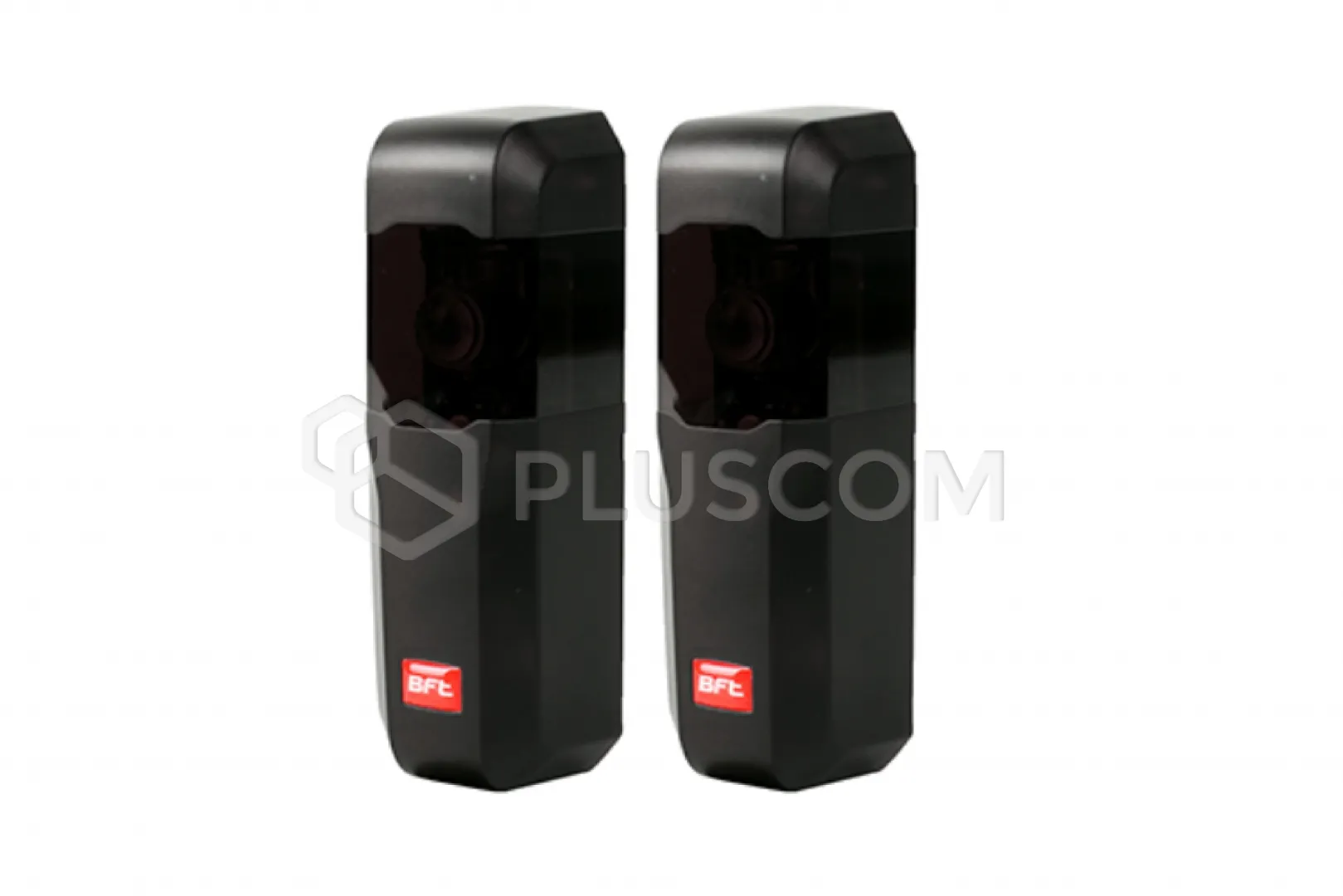

  • 1 set. COMPACTA Photocells

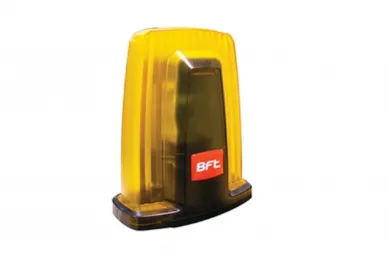

  • 1 x RADIUS LED Lamp BT A R1

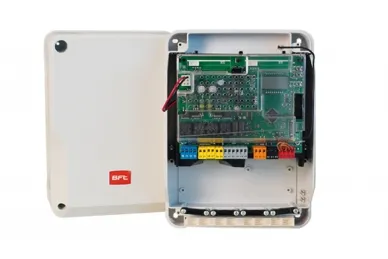

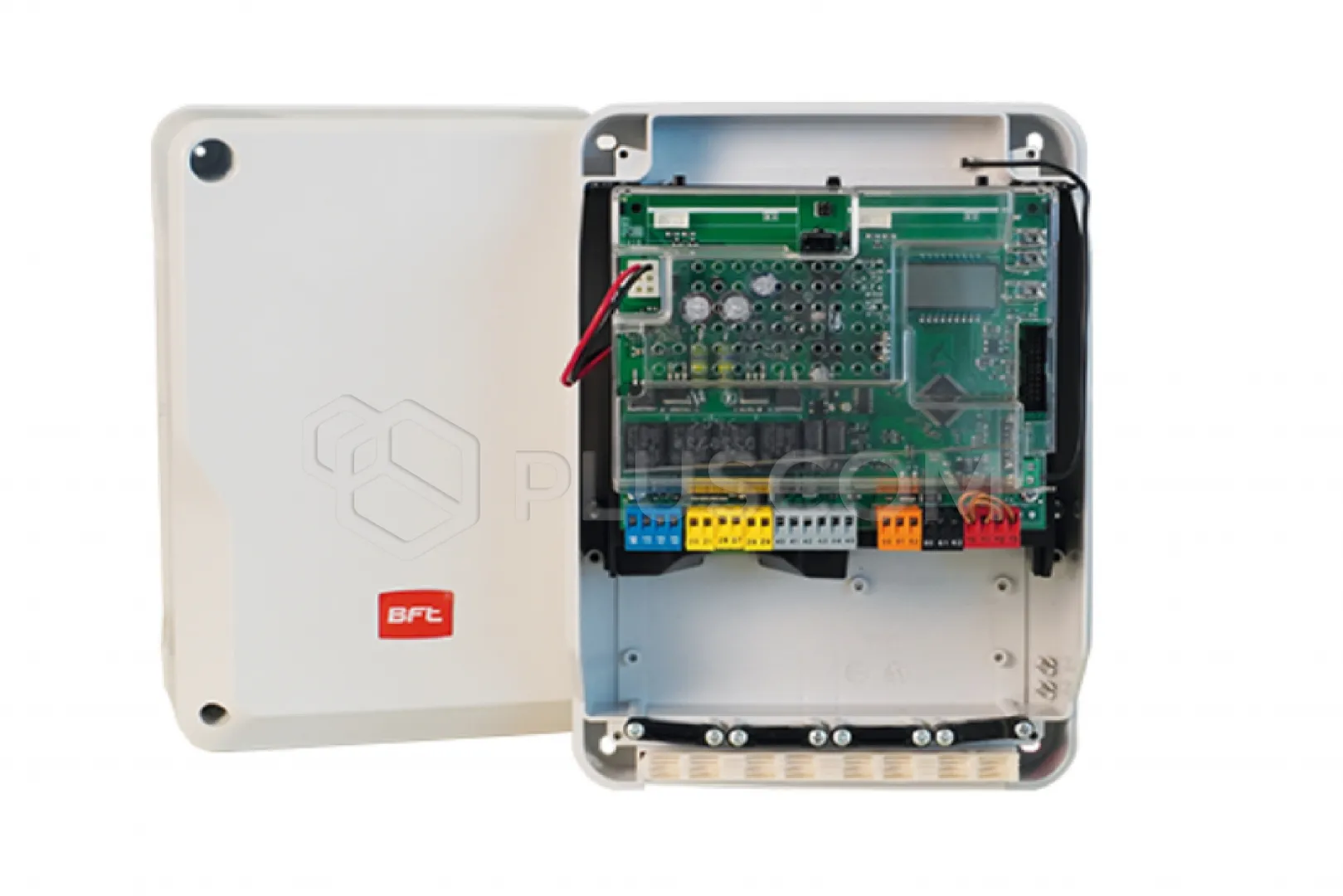

  • 1 x THALIA BT A80 Control Unit
BFT 2614874 Set of self-locking actuators for swing gates KUSTOS BT B40

BFT 2614874 Set of self-locking actuators for swing gates KUSTOS BT B40
The BFT KUSTOS BT B40 kit is a comprehensive solution designed to automate swing gates in single-family homes. Thanks to its solid construction and advanced technologies, it ensures reliable and safe operation for many years.

FEATURES:

  • The motors have been designed to ensure a high degree of protection for the motor, including in particularly dusty areas, thanks to the covered worm gear.
  • Obstacle detection: the torque management and control system through D-Track technology maximizes the safety of people and property, and also facilitates system certification.
  • Emergency release option to manually open the gate.
  • Automatic closing.
  • Slowdowns during opening and closing.
24V technology and electronic control help protect people from impacts without the need for additional safety devices.

The limit switches located on the top of the motor are easy to adjust thanks to the exclusive vibration feedback or flashing light function (patented). The built-in mechanical limiter prevents the use of a ground limiter.

Technical data:

  • Environmental conditions -20 ÷ 55 °C
  • Limit switch type Magnetic
  • Max. gate panel length without electric lock 3 m
  • Protection class IP44
  • Release Yes
  • Motor voltage 24 V
  • Control unit THALIA
  • Impact response D-Track
  • Power consumption 40 W
  • Board power supply 230 V
  • Locking Mechanical
  • Push and pull force 2000 N
  • Drive type swing gates controlled electromechanically
  • Release Personal key
  • Usable rod stroke 355 mm
  • Max. door/gate leaf weight 700 kg
  • Movement time (90°, without slowing down, at maximum gate size and weight) approx. 16 s
  • Max. opening cycles per hour 30
  • Max. angle 124 °
  • Max. door/gate leaf width 4 m
  • Interconnection Yes
