BFT 2614868 Set for swing gates VELOCE BT B35 SMART KIT INT

1242,36 EUR including 23.00% VAT
Product code: #38808
Manufacturer: BFT
  • Max. leaf length: 3m
  • Max. leaf weight: 450kg
  • Engine power supply: 24V
  • For intensive use
  • Magnetic limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2614868 Set for swing gates VELOCE BT B35 SMART KIT INT

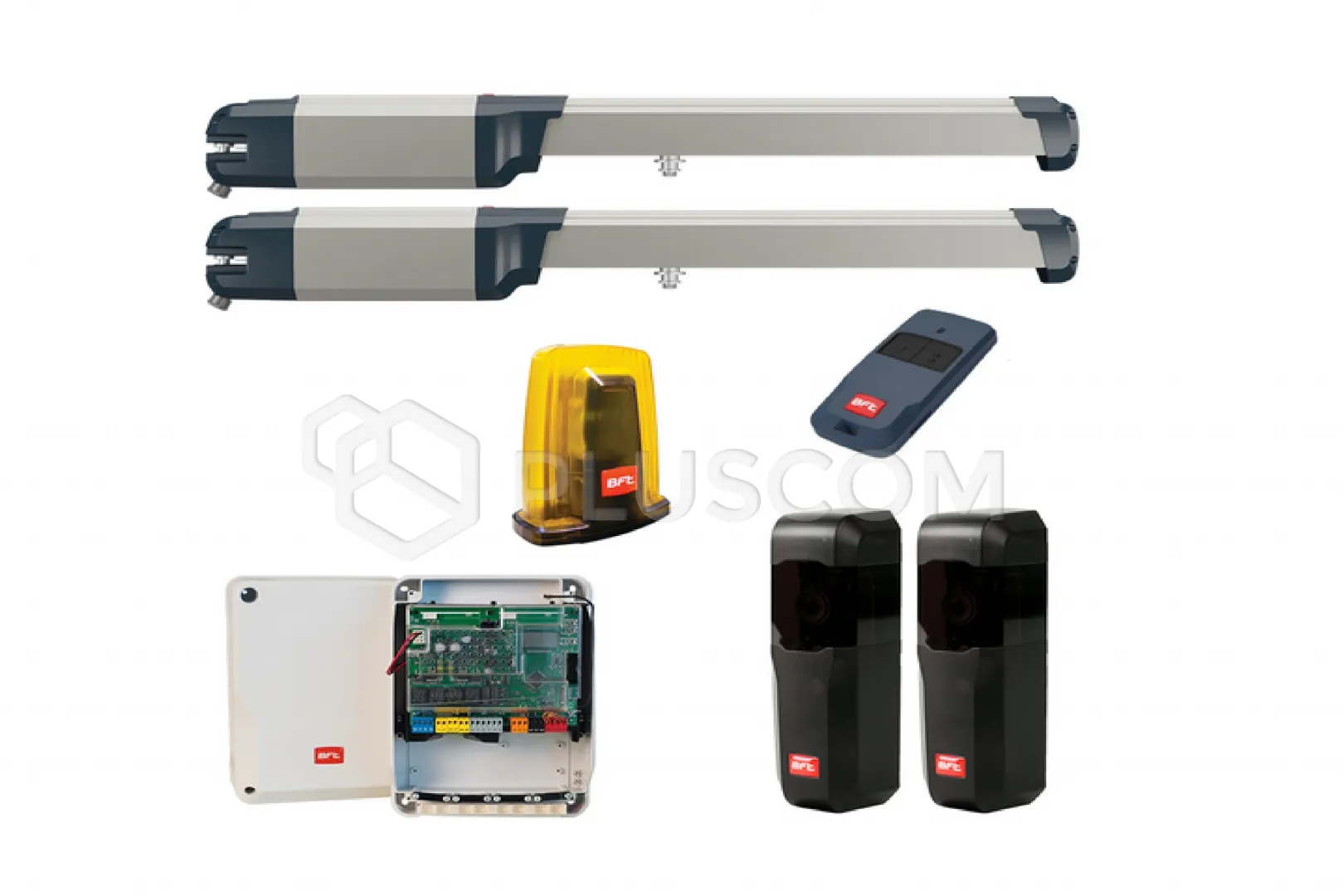

KIT INCLUDES:

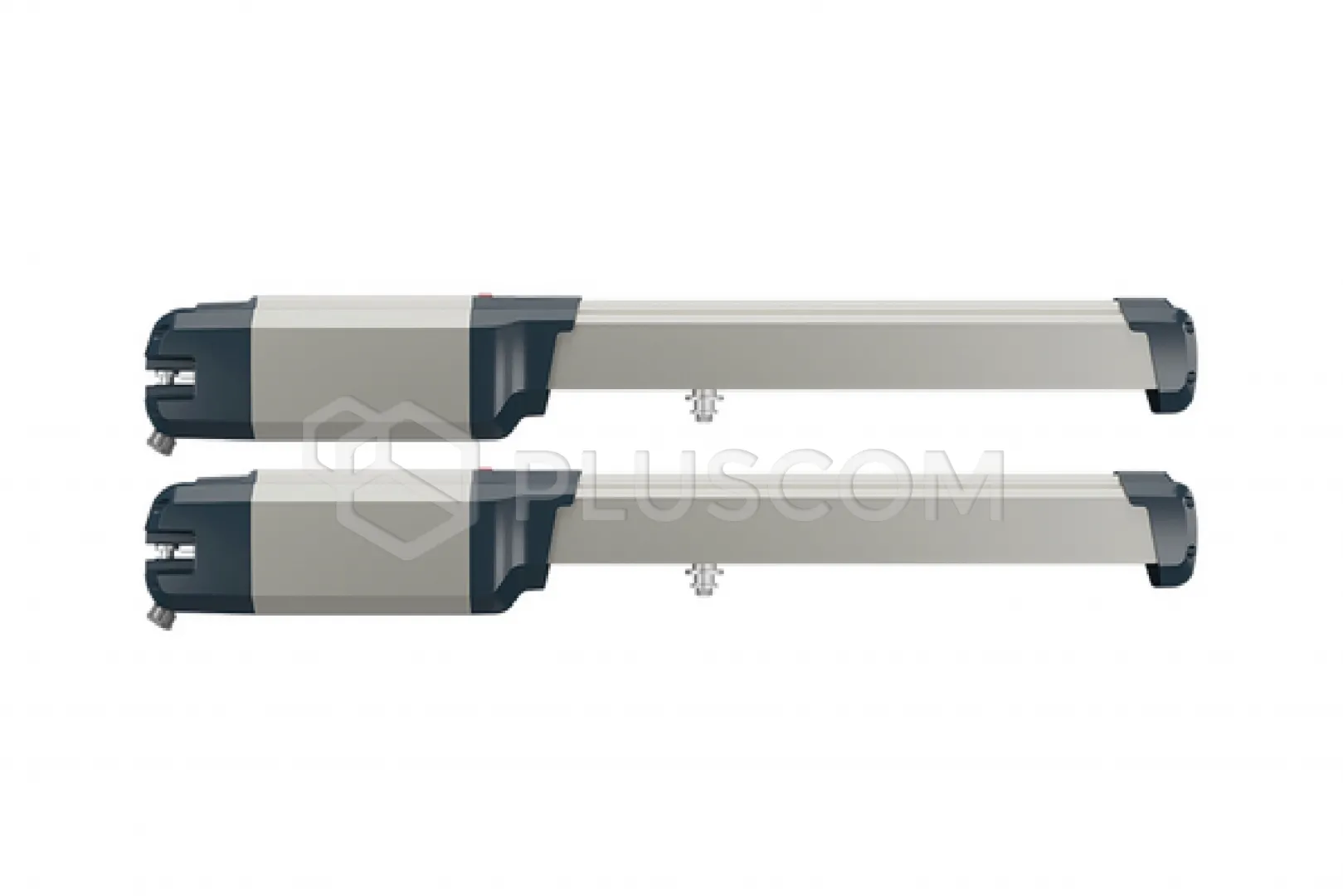

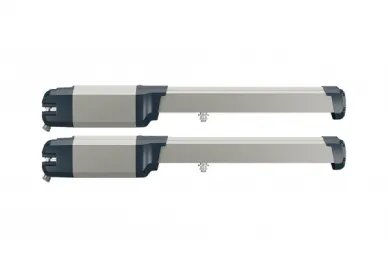

  • 2 x PHOBOS BT B35 Veloce actuator

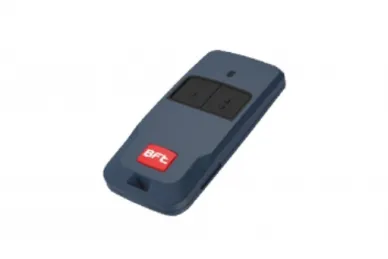

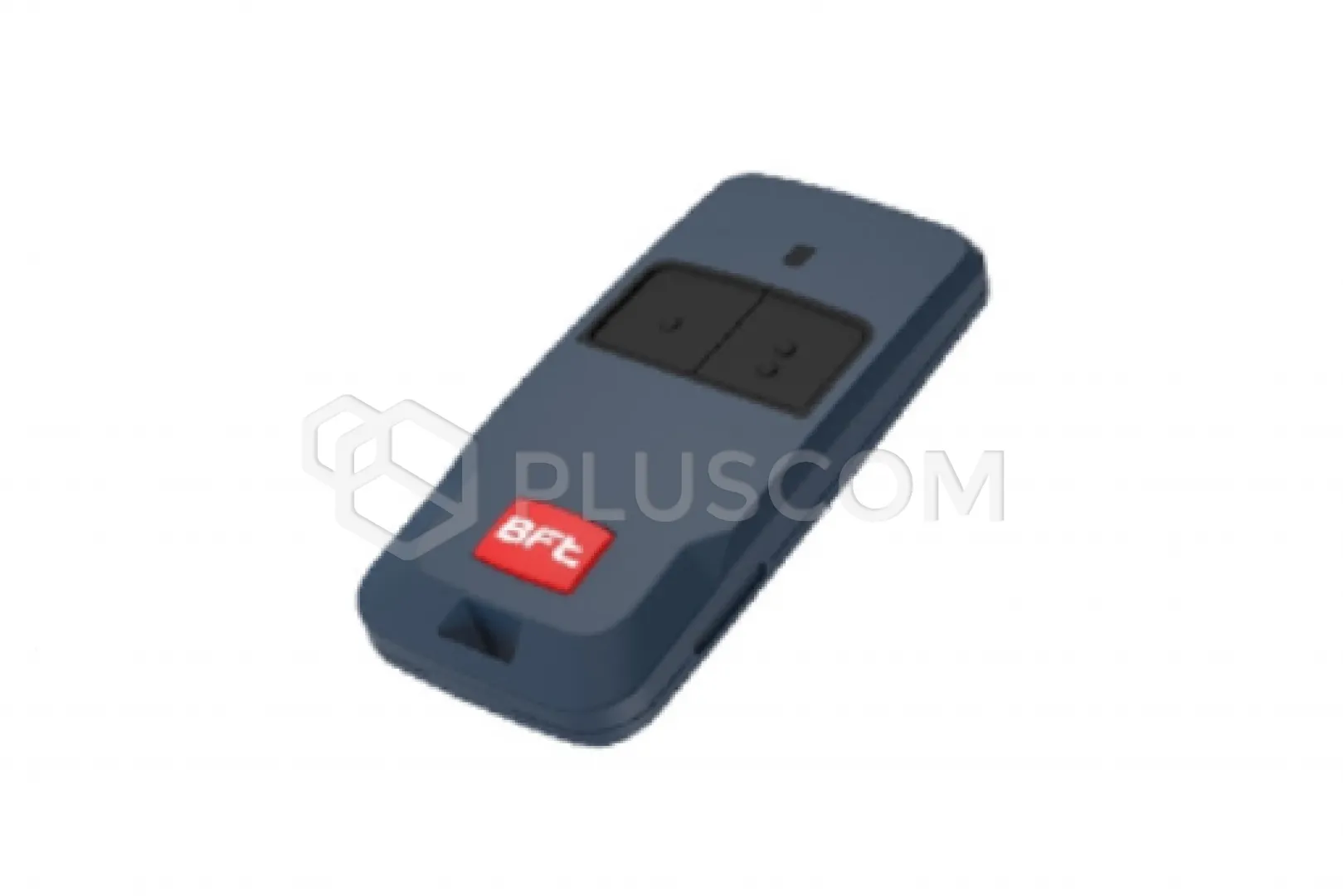

  • 1 x MITTO COOL C4 remote control

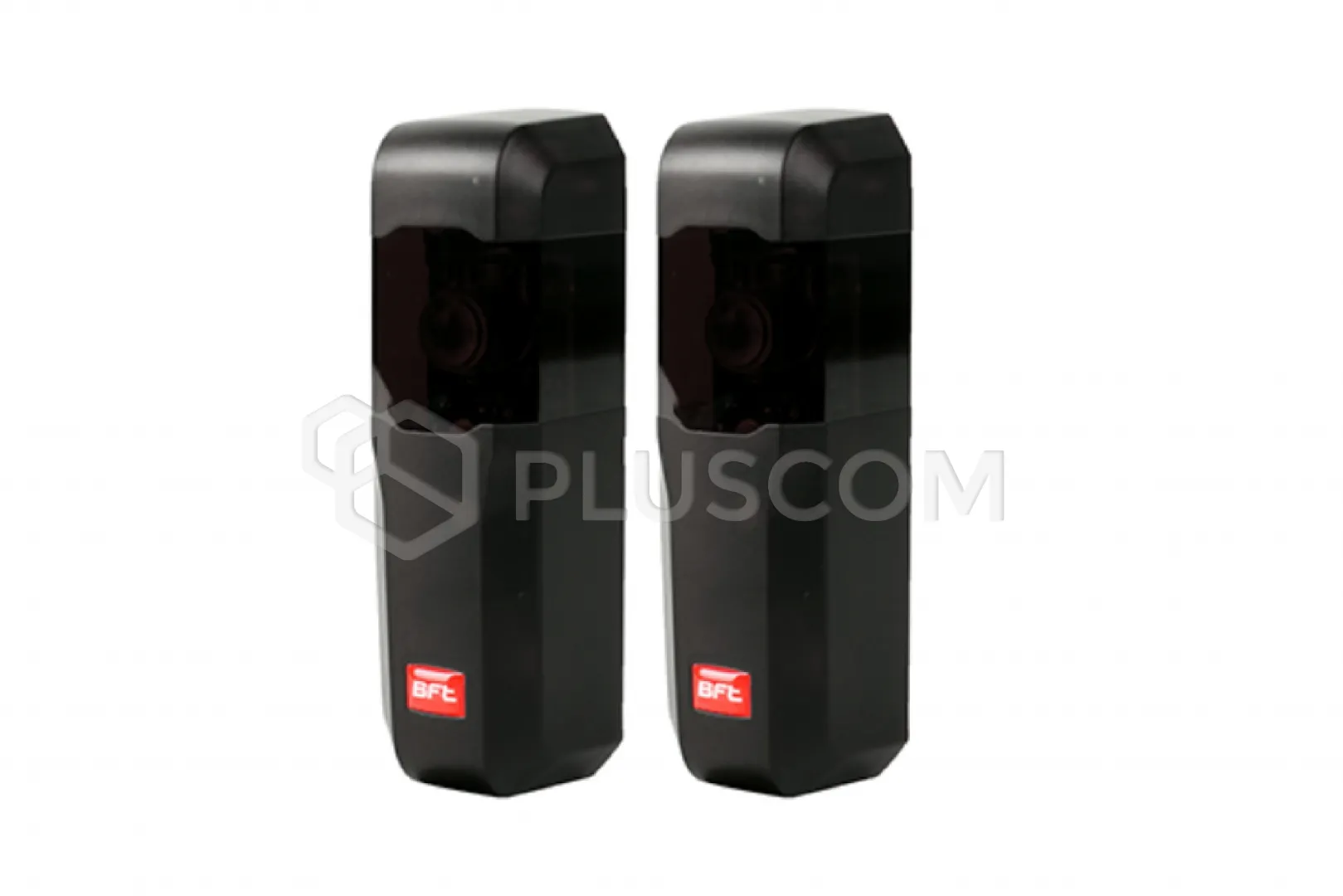

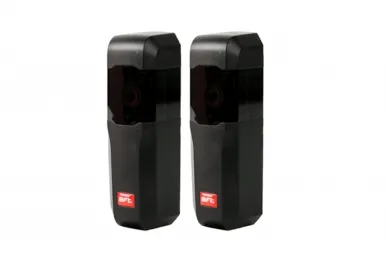

  • 1 set. COMPACTA Photocells

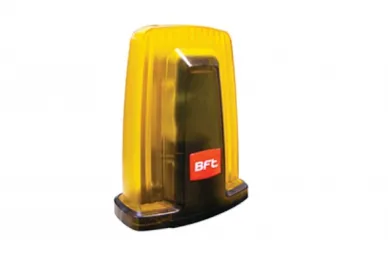

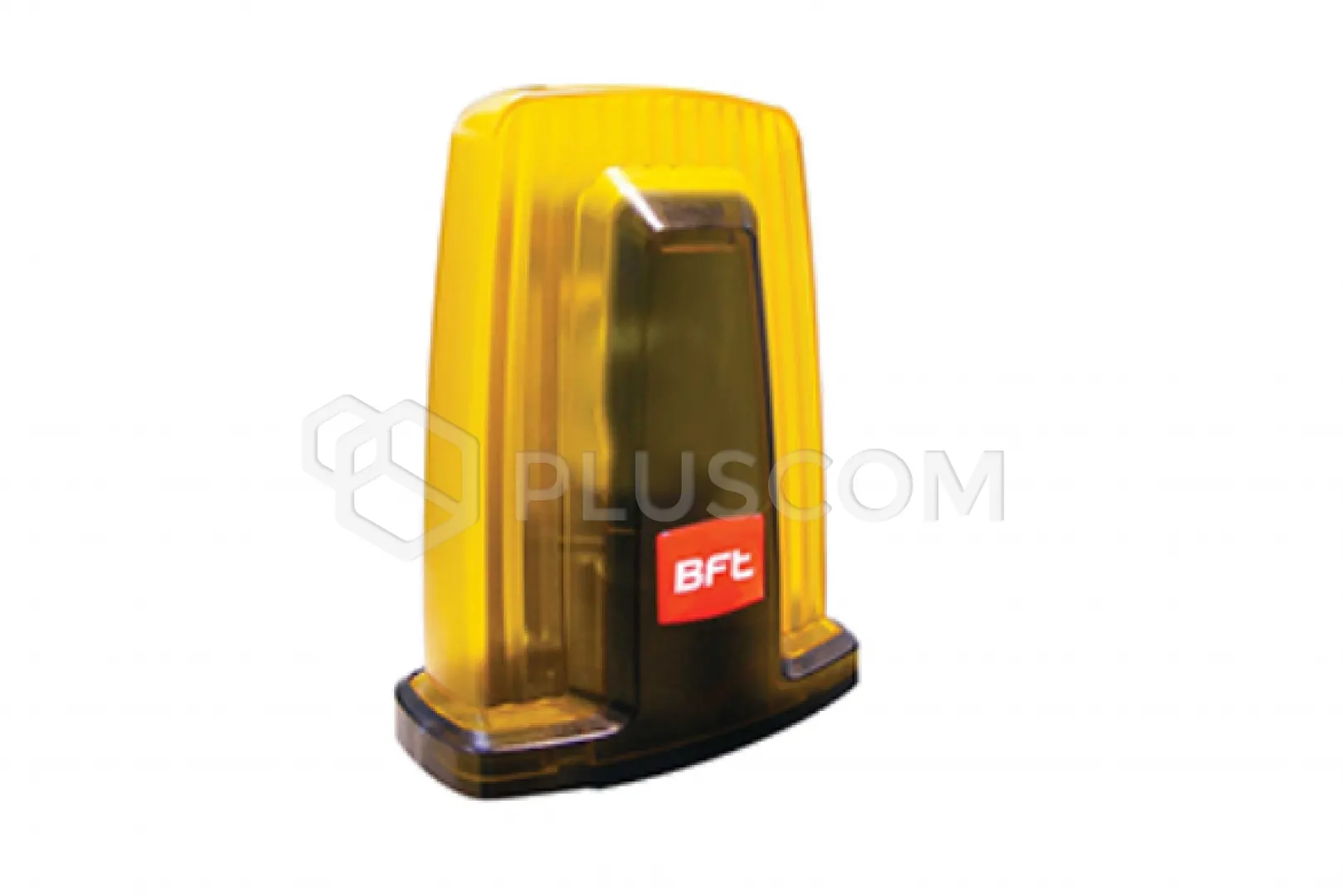

  • 1 x Warning Light RADIUS LED BT A R1

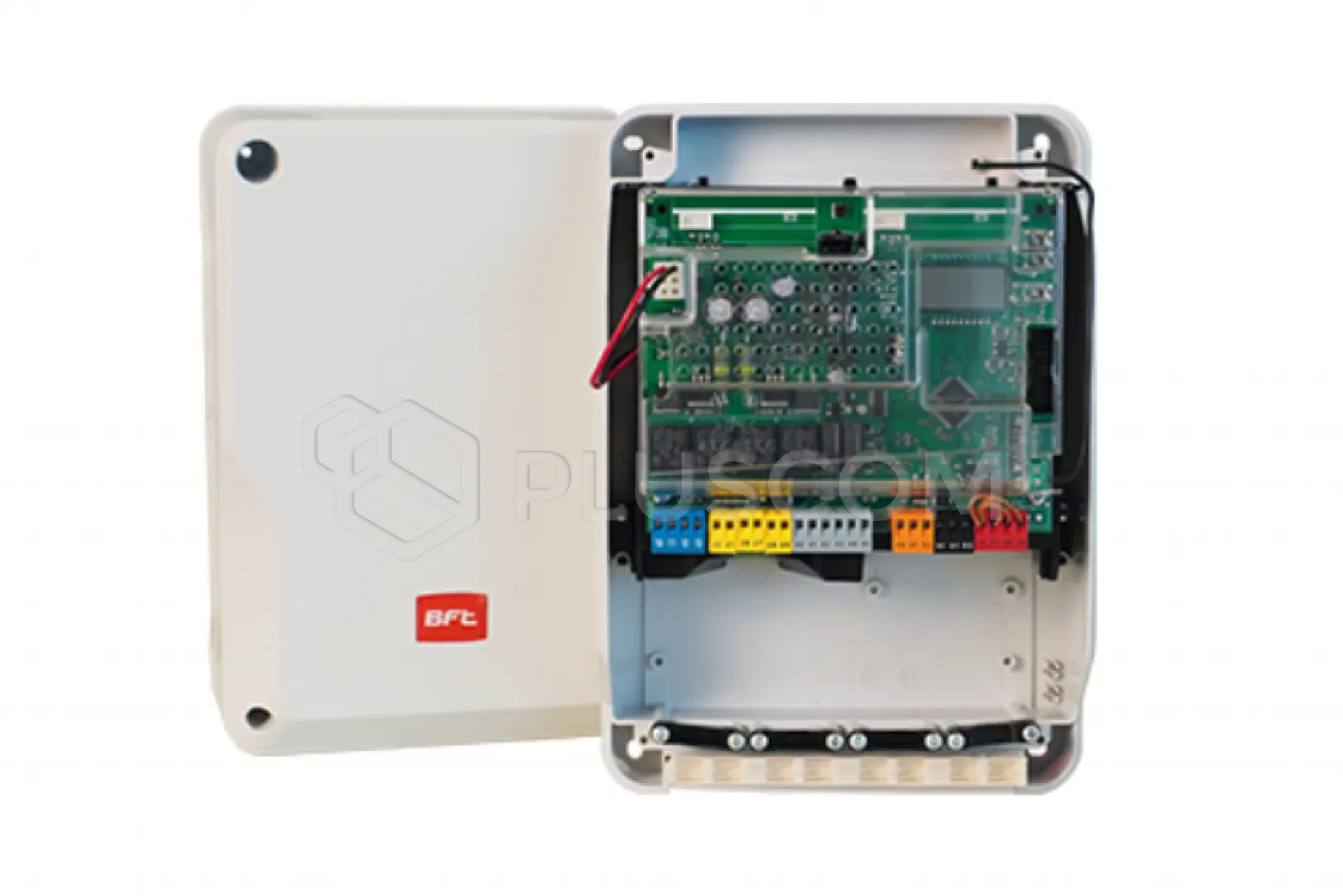

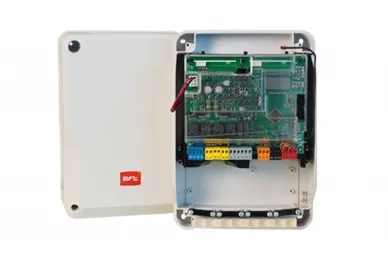

  • 1 x Control Unit THALIA BT A80
BFT 2614868 Self-locking swing gate actuator VELOCE BT B35 SMART KIT INT

BFT 2614868 Self-locking swing gate actuator VELOCE BT B35 SMART KIT INT
BFT VELOCE BT B35 SMART KIT INT is an advanced, self-locking actuator designed for the automation of swing gates. It is a comprehensive set, which contains all the necessary elements for efficient and safe operation of the gate opening and closing system.

FEATURES:

  • Obstacle detection: torque management and control system via D-Track technology maximizes the safety of people and property and facilitates system certification
  • Opening time to 90 degrees in 10 seconds in B35 Veloce - maximum opening angle of 119°/ 130°
  • Possibility of emergency release to manually open the gate
  • Automatic closing
  • Slowdowns in the opening and closing phases
One of the most compact actuators on the market, which can be universally used in a wide range of installation conditions, even with limited space or thick pillars.

The limit switches located on the top of the motor can be easily adjusted thanks to the exclusive feedback function in the form of vibration or flashing light (patented).

Technical data:

  • Max. opening cycles per hour 25
  • Movement time (90°, without slowing down, with maximum gate size and weight) approx. 10 s
  • Max. door/gate leaf weight 450 kg
  • Board power supply 230 V
  • Environmental conditions -20 ÷ 55 °C
  • Limit switch type Magnetic
  • Motor voltage 24 V
  • Control unit THALIA BT A80. ZARA BT A80
  • Protection class IP44
  • Slowdown Yes
  • Power consumption 50 W
  • Drive type swing gates controlled electromechanically
  • Impact response D-Track
  • Pulling and traction force 1300 N
  • Drive weight 5.2 kg
  • Locking Mechanical
  • Usable rod stroke 470 mm
  • Max. door/gate leaf width 3 m
  • Release Personal key
  • Max. angle 130 °
  • Max. gate panel length without electric lock 2.5 m
  • Interconnection no
