BFT 2614863 Set for swing gates PHOBOS BT B40 KIT

BFT 2614863 PHOBOS BT B40 KIT swing gate kit

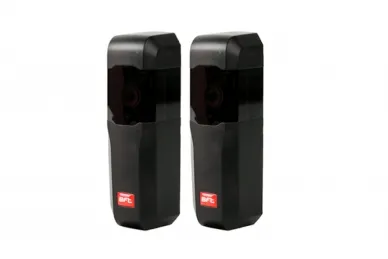

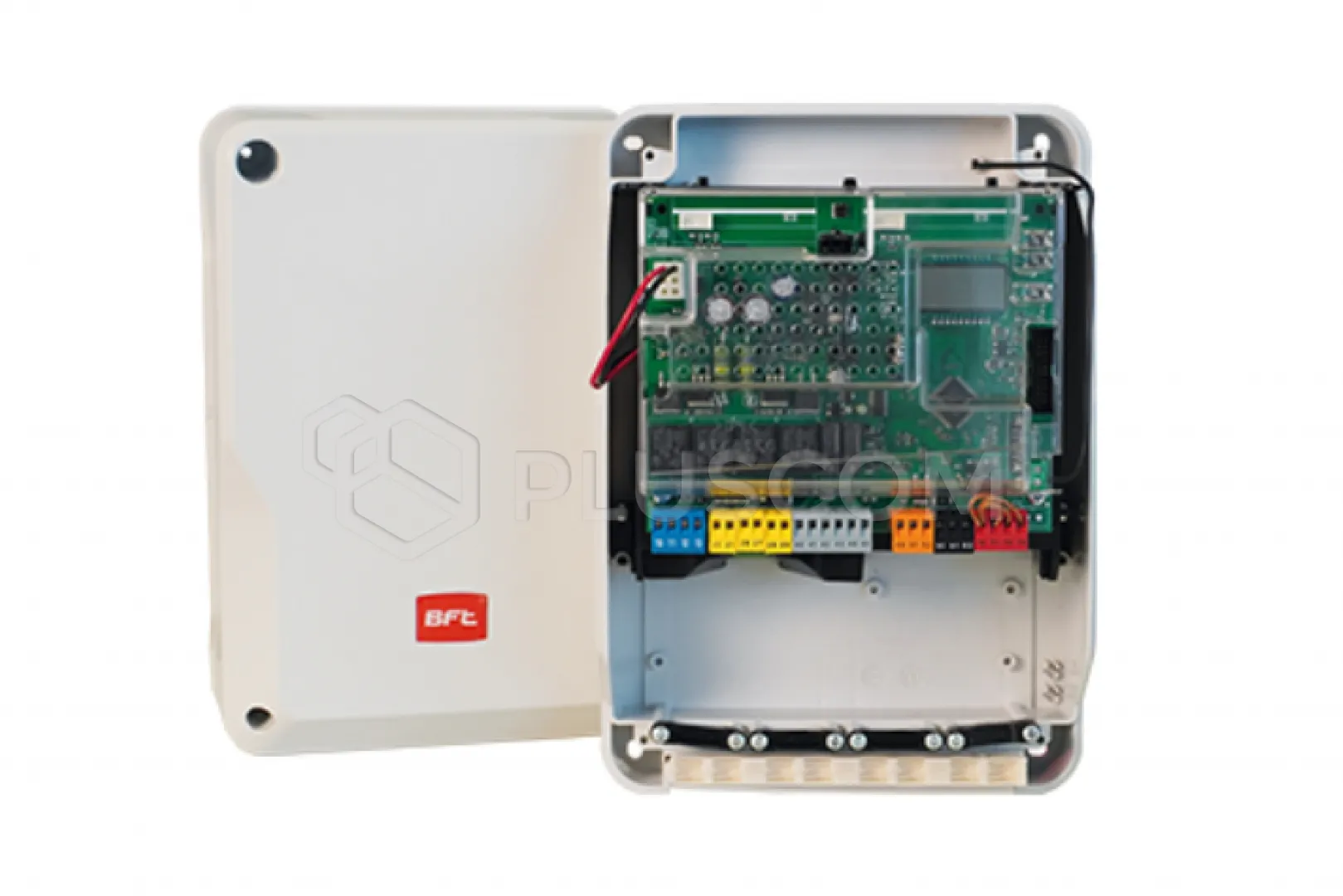

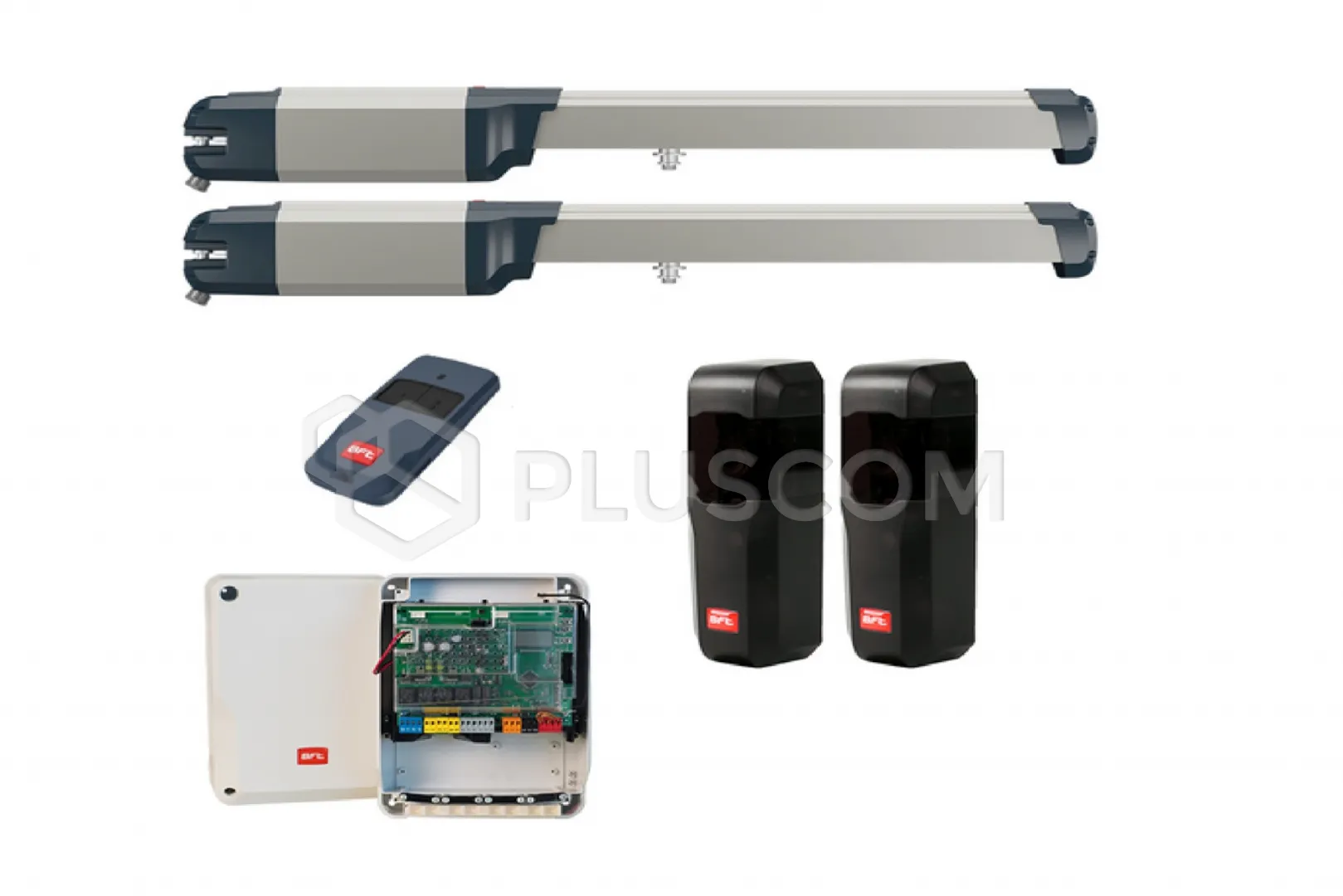

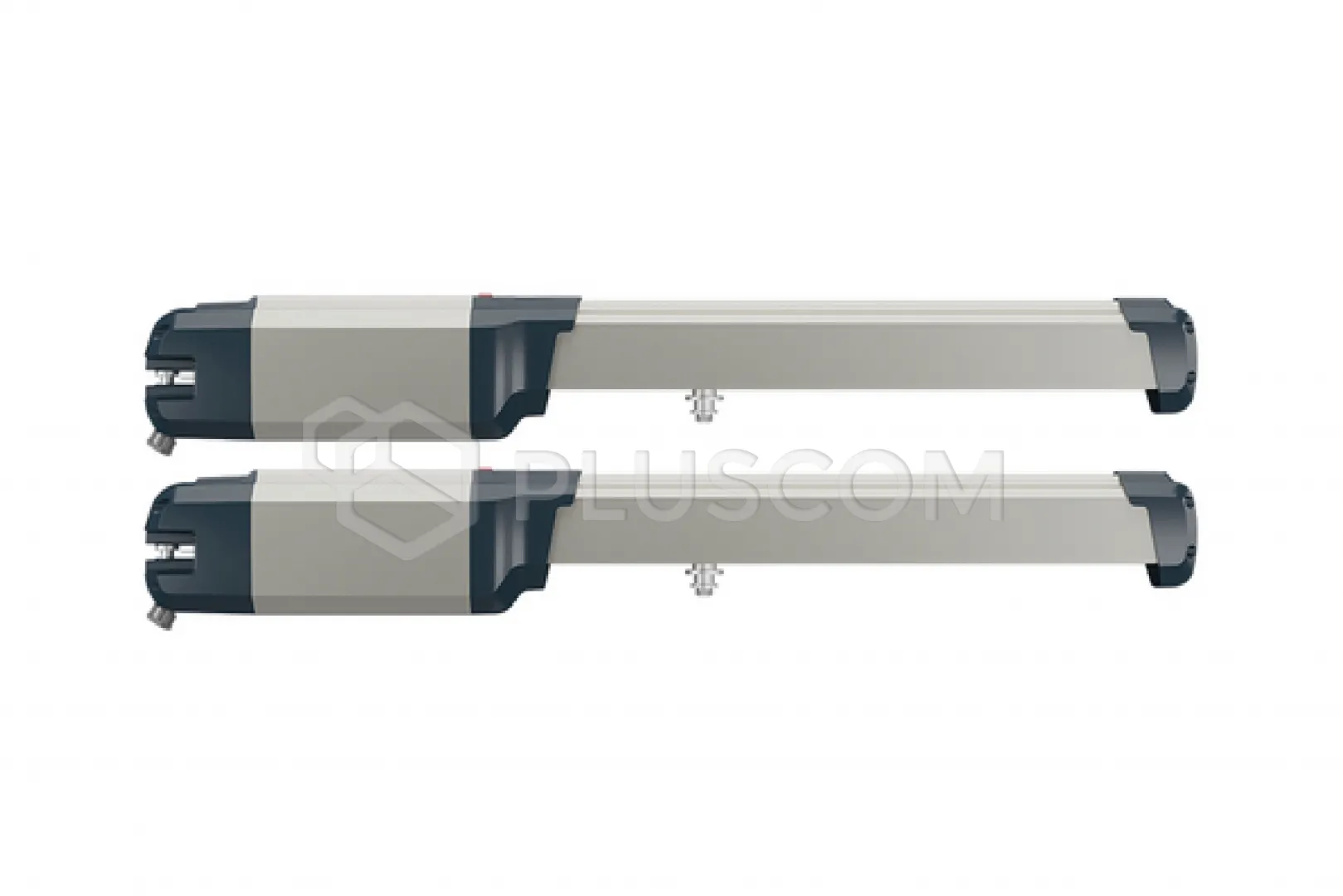

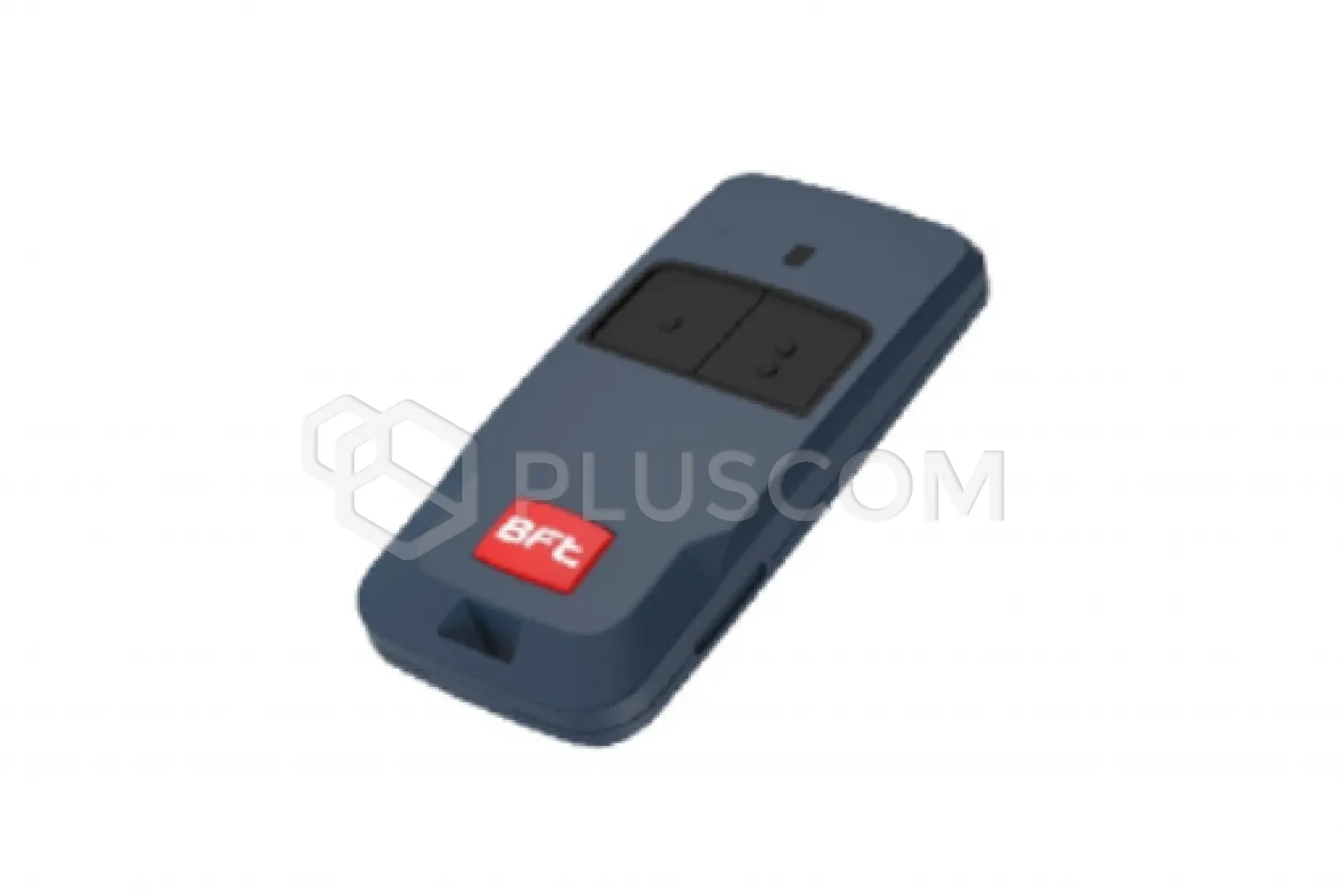

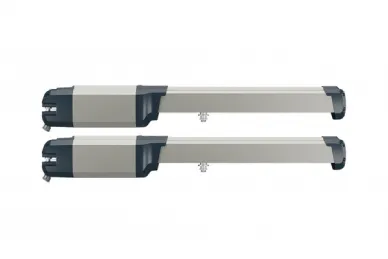

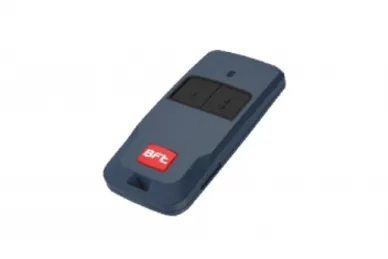

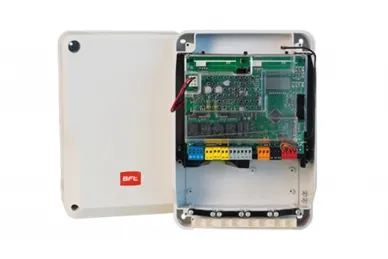

KIT INCLUDES: 2 x PHOBOS BT B40 PL KIT actuator 1 x MITTO COOL C4 remote control 1 set. COMPACTA Photocells 1 x THALIA BT A80 Control Unit

BFT 2614863 Set for swing gates PHOBOS BT B40 KIT

The BFT PHOBOS BT B40 KIT is a comprehensive solution designed to automate swing gates in private properties. This advanced kit provides not only convenience of use, but also a high level of security.

It has been designed with the highest functionality, durability and easiness of installation in mind, making it an ideal choice for both private homes and commercial properties.

FEATURES:

• Obstacle detection: torque management and control system mnthrough D-Track technology maximizes the safety of people and property and facilitates system certification
• Opening time up to 90 degrees in 10 seconds in B35 Veloce - maximum opening angle 119°/ 130°
• Possibility of emergency release to manually open the gate
• Automatic closing
• Slowdowns in the opening and closing phase

Thanks to advanced technology and a solid construction, the drive kit ensures reliable operation in all weather conditions, while guaranteeing smooth and silent opening and closing of the gate.

Technical data:

• Max. opening cycles per hour 30
• Movement time (90°, without slowing down, at maximum gate size and weight) approx. 16 s
• Max. door/gate leaf weight 700 kg
• Board power supply 230 V
• Environmental conditions -20 ÷ 55 °C
• Limit switch type Magnetic
• Motor voltage 24 V
• Control unit THALIA BT A80. ZARA BT A80
• Protection class IP44
• Slowdown Yes
• Power consumption 40 W
• Type of drive swing gates controlled electromechanically
• Impact response D-Track
• Drive weight 8 kg
• Locking Mechanical
• Max. door/gate leaf width 4 m
• Release Personal key
• Max. angle 130 °
• Max. gate panel length without electric lock 4 m
• Interconnection no
