BFT 2614858 Set for swing gates PHOBOS BT B25 PL

BFT 2614858 Set for swing gates PHOBOS BT B25 PL

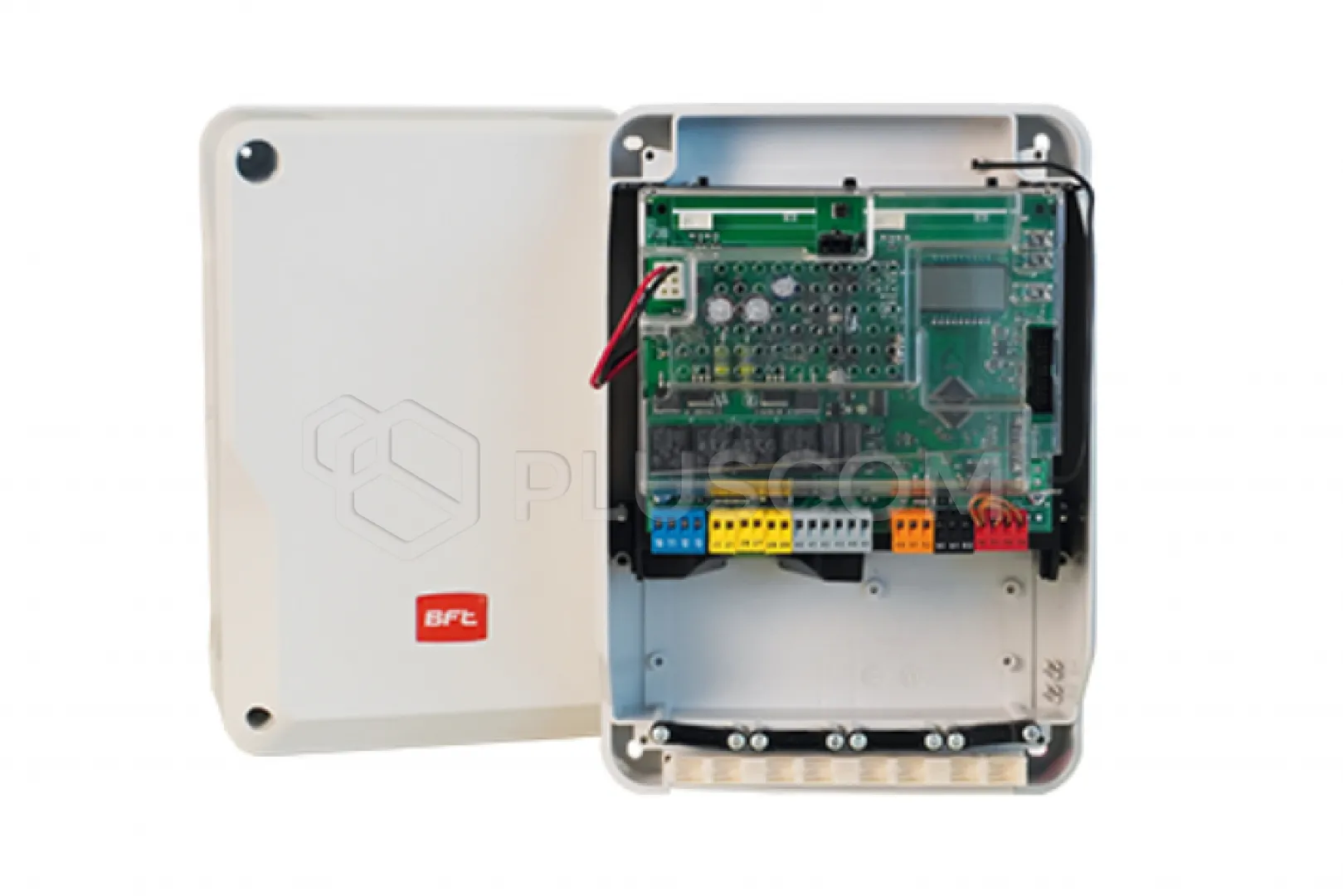

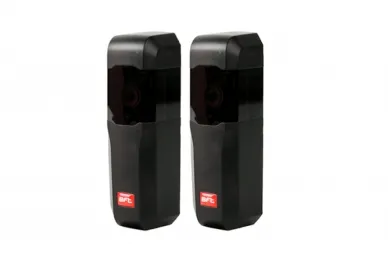

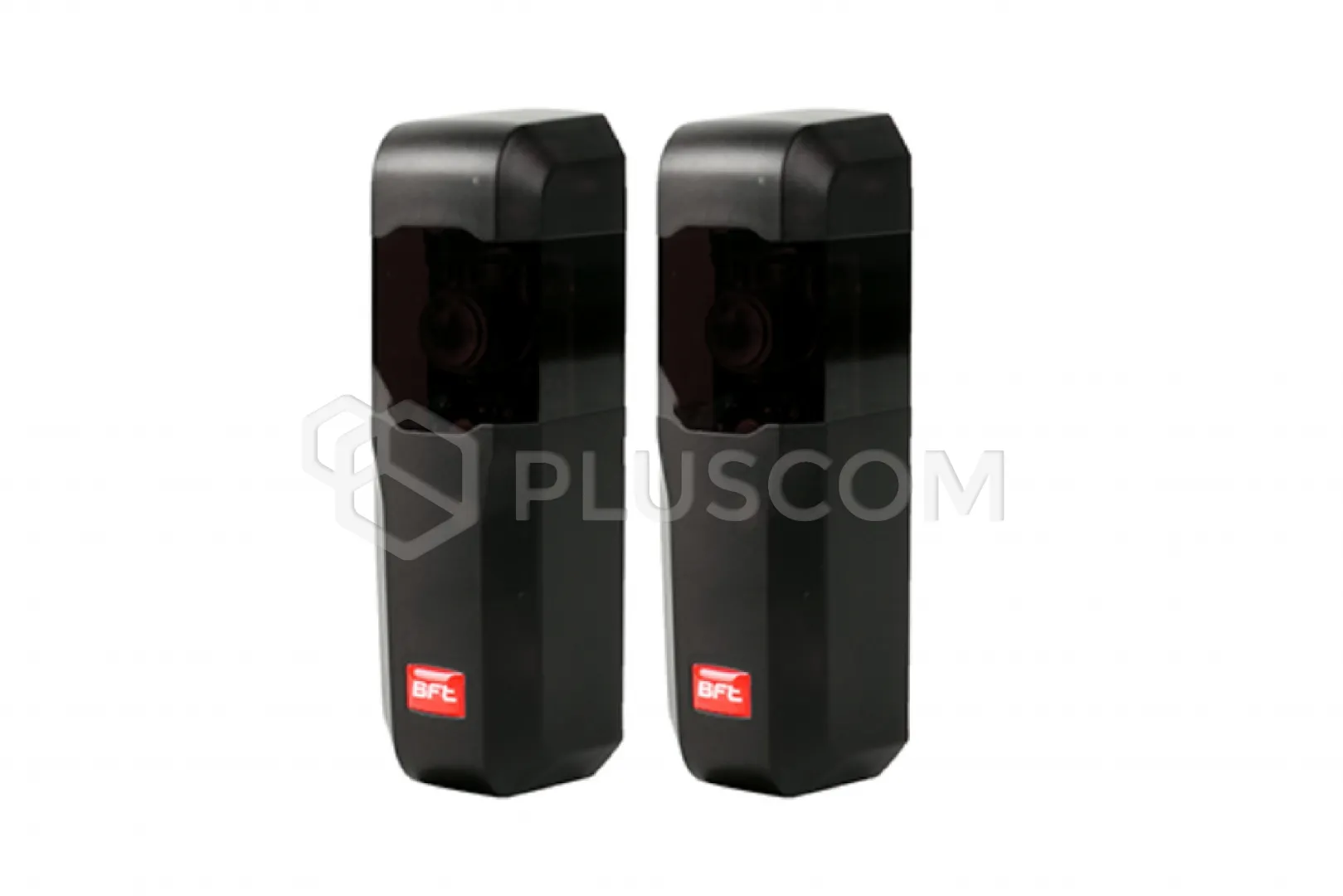

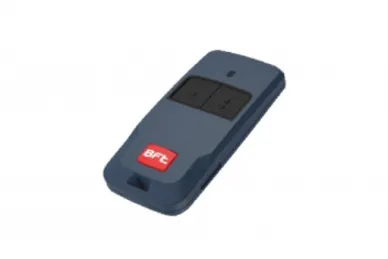

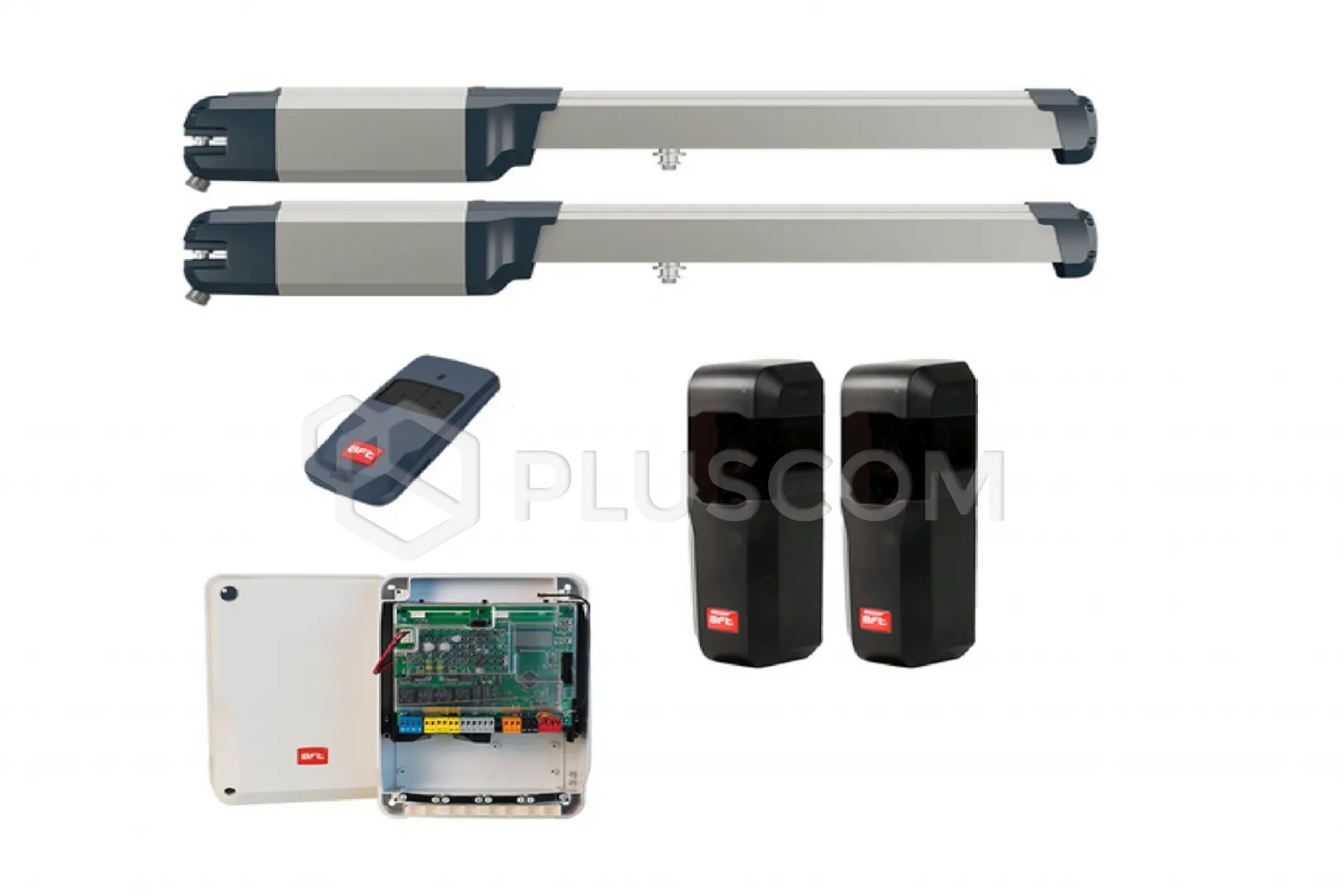

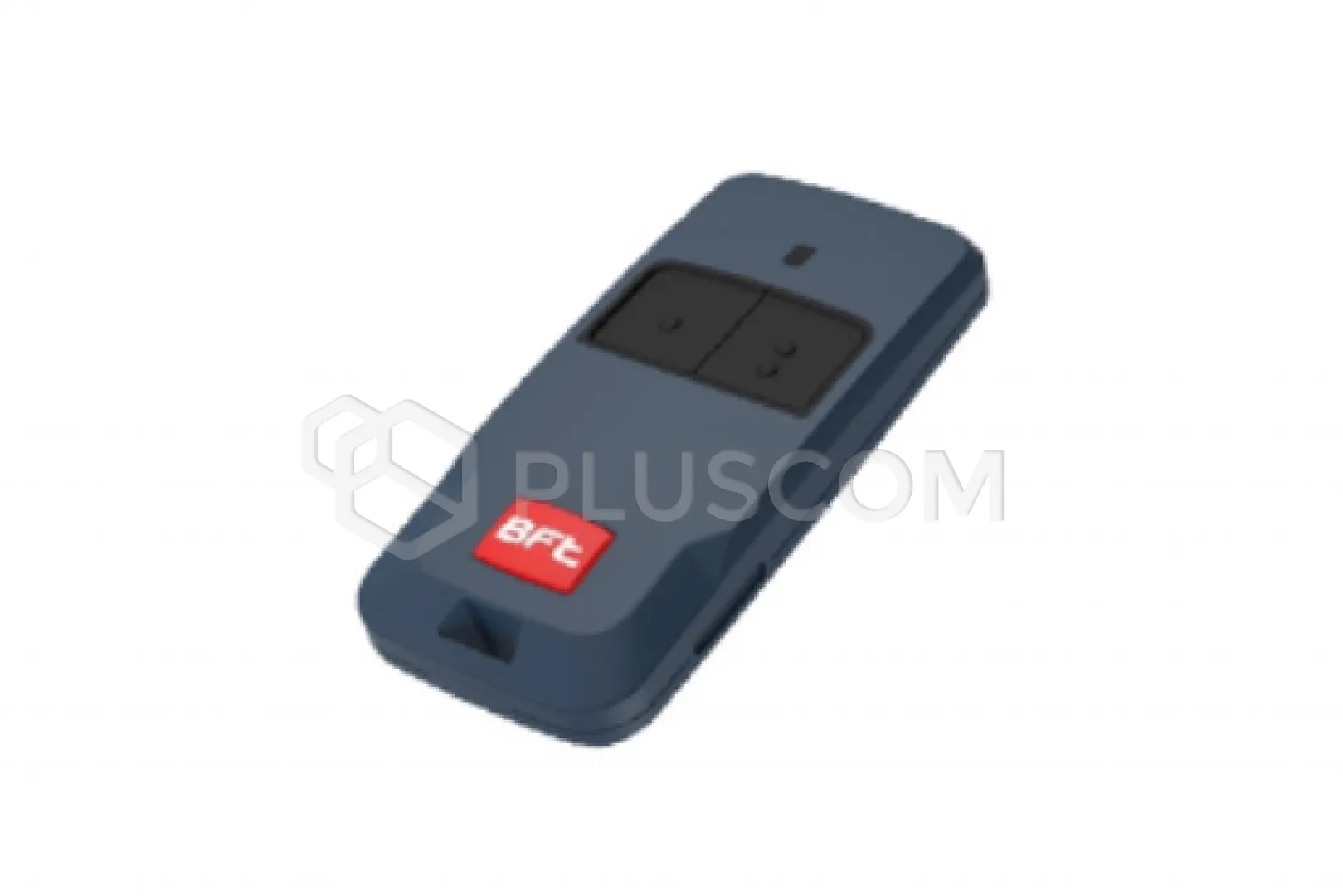

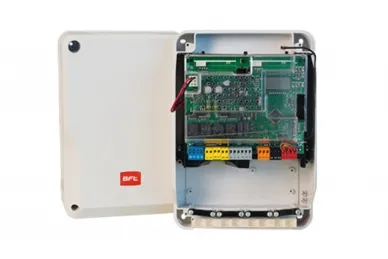

SET INCLUDES: 2 x PHOBOS BT B25 actuator 1 x MITTO COOL C4 remote control 1 set. COMPACTA Photocells 1 x THALIA BT A80 Control Unit

BFT 2614858 Set for swing gates PHOBOS BT B25 PL

BFT VELOCE BT B35 SMART KIT INT is an advanced, self-locking actuator designed for the automation of swing gates. It is a comprehensive set, which contains all the necessary elements for efficient and safe operation of the gate opening and closing system.

FEATURES:

• Obstacle detection: torque management and control system via D-Track technology maximizes the safety of people and property and facilitates system certification
• Opening time to 90 degrees in 13 seconds in BT B25 - maximum opening angle of 119°
• Possibility of emergency release to manually open the gate
• Automatic closing
• Slowdowns in the opening and closing phases

Designed for the automation of swing gates, this kit combines modern technology, solid construction and ease of installation, making it the ideal choice for both private homes and commercial properties.

Thanks to high-quality components and innovative functions, Phobos BT B25 guarantees reliability and long-term operation, meeting the expectations of even the most demanding users.

Technical data:

• Max. opening cycles per hour 25
• Movement time (90°, without slowing down, at maximum gate size and weight) approx. 10 s
• Max. door/gate leaf weight 400 kg
• Board power supply 230 V
• Environmental conditions -20 ÷ 55 °C
• Limit switch type Magnetic
• Motor voltage 24 V
• Control unit THALIA BT A80. ZARA BT A80
• Protection class IP44
• Slowdown Yes
• Motor type swing gates controlled electromechanically
• Impact response D-Track
• Locking Mechanical
• Max. door/gate leaf width 3 m
• Release Personal key
• Max. angle 119 °
• Interconnection no
