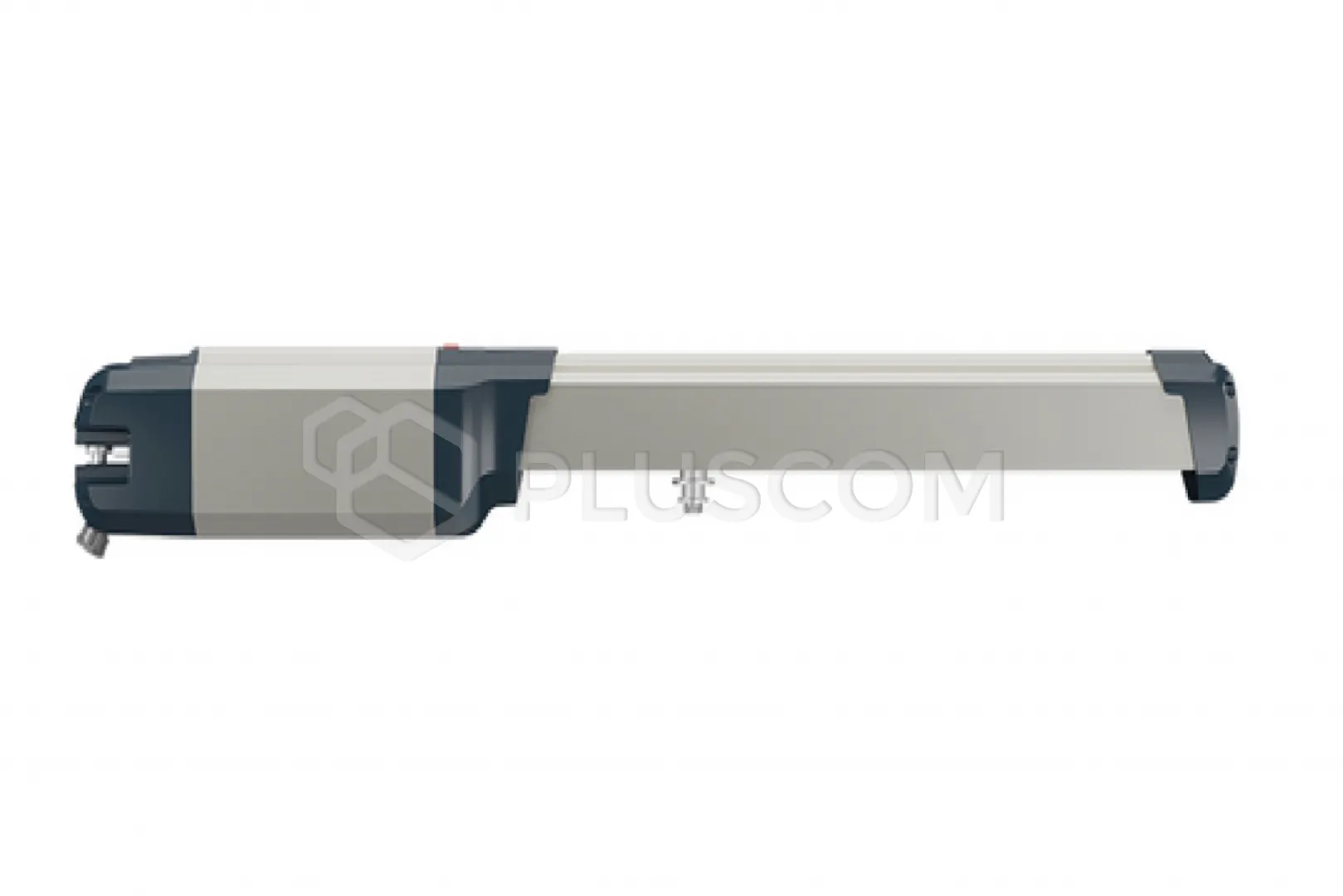

BFT 2614567 Self-locking actuator for swing gates PHOBOS BT B35 VELOCE

BFT 2614567 Self-locking actuator for swing gates PHOBOS BT B35 VELOCE

BFT 2614567 PHOBOS BT B35 VELOCE is an advanced, self-locking actuator designed for the automation of swing gates in home applications.

FEATURES:

• Obstacle detection: torque management and control system via D-Track technology maximizes the safety of people and property and facilitates system certification
• Opening time up to 90 degrees in 10 seconds on B35 Veloce - maximum opening angle 119°/ 130°
• Possibility of emergency release to manually open the gate
• Automatic closing
• Slowdowns in the opening and closing phases

24V technology and electronic control help protect people from impacts without the need for additional safety devices.

The Easy Set application helps the installer to determine the correct installation positions to obtain the required opening angle and smooth movement.

Technical data:

• Board power supply 230 V
• Control unit THALIA BT A80. ZARA BT A80
• Drive type swing gates controlled electromechanically
• Drive weight 5.2 kg
• Max. door/gate wing width 3 m
• Max. gate panel length without electric lock 2.5 m
• Max. door/gate leaf weight 450 kg
• Motor voltage 24 V
• Power consumption 50 W
• Pulling and pulling force 1300 N
• Usable rod stroke 470 mm
• Maximum angle 130 °
• Movement time (90°, without deceleration, at maximum gate size and weight) approx. 10 s
• Limit switch type Magnetic
• Slowdown Yes
• Impact response D-Track
• Locking Mechanical
• Release Personal key
• Max. opening cycles per hour 25
• Environmental conditions -20 ÷ 55 °C
• Protection class IP44
• Interconnection no
