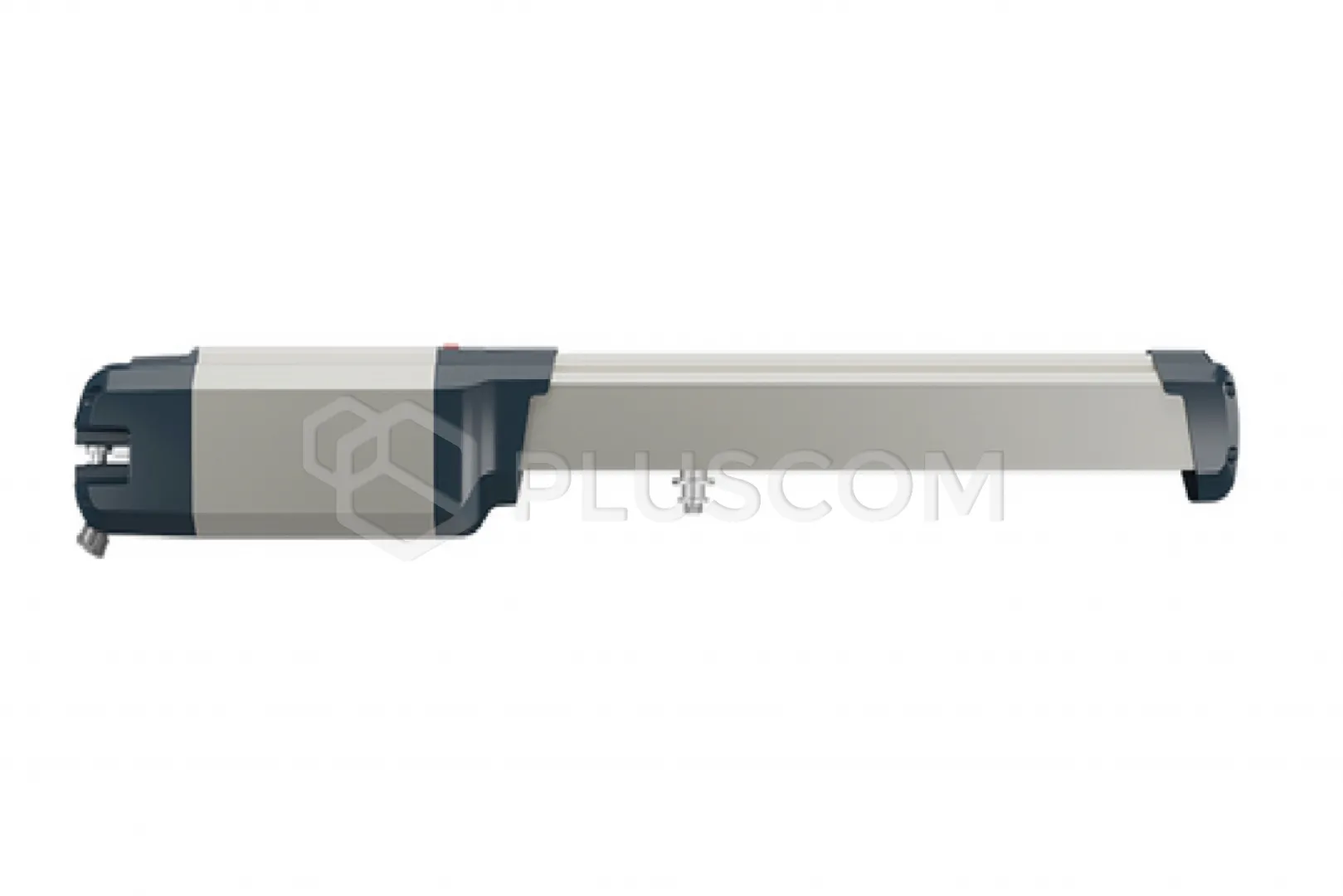

BFT 2614566 Self-locking actuator for swing door PHOBOS BT B40

391,08 EUR including 23.00% VAT
Product code: #38802
Manufacturer: BFT
  • Max. leaf length: 4m
  • Max. leaf weight: 700kg
  • Engine power supply: 24V
  • For intensive use
  • Magnetic limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2614566 Self-locking actuator for swing gates PHOBOS BT B40


BFT 2614566 PHOBOS BT B40 is an advanced electromechanical actuator, designed specifically for swing gate automation. Its solid construction and advanced technologies make it a reliable solution for both home and commercial users.

FEATURES:

  • Self-locking: Ensures the safety and stability of the gate in any position, even in the absence of power
  • Efficient: Designed for gates weighing up to 700 kg and up to 4 meters long, making it suitable for a wide range of applications
  • Safety: D-Track torque management and control system ensures maximum safety of use by detecting potential obstacles
  • Easy installation: Intuitive assembly and adjustment, thanks to the magnetic limit switch
  • Silent and smooth movement: Ensures comfortable use
  • High quality: Made of durable, weather-resistant materials

The upper position limit switches can be easily adjusted thanks to the unique feedback function vibration or light (patented)

The exclusive Easy Set application helps the installer to determine the correct installation dimensions to obtain the desired opening angle and smooth movement.

24V technology and electronic control work for the safety of people in relation to impacts without the need for additional safety devices.

Technical data:

  • Working environment (max.) -20 ÷ 55 °C
  • Type of limit switch Magnetic
  • Motor voltage 24 V
  • Control unit THALIA BT A80. ZARA BT A80
  • Protection class IP44
  • Slowdown YES
  • Power consumption 40 W
  • Type of actuator leaf electromechanical
  • Connectivity no
  • Impact response D-Track
  • Push and pull force 2000 N
  • Actuator weight 5.2 kg
  • Mechanical lock
  • Usable piston stroke 470 mm
  • Max. door/gate leaf width 4 m
  • Unlocking Personalized key
  • Maximum angle 130 °
  • Max. gate panel length without electric lock 3 m
  • Max. opening cycles per hour 30
  • Manoeuvring time (90°, without deceleration, with maximum leaf and maximum weight) approx. 16 s
  • Max. door/gate leaf weight 700 kg
  • Board power supply 230 V
Download
User manual 4.9 MB
