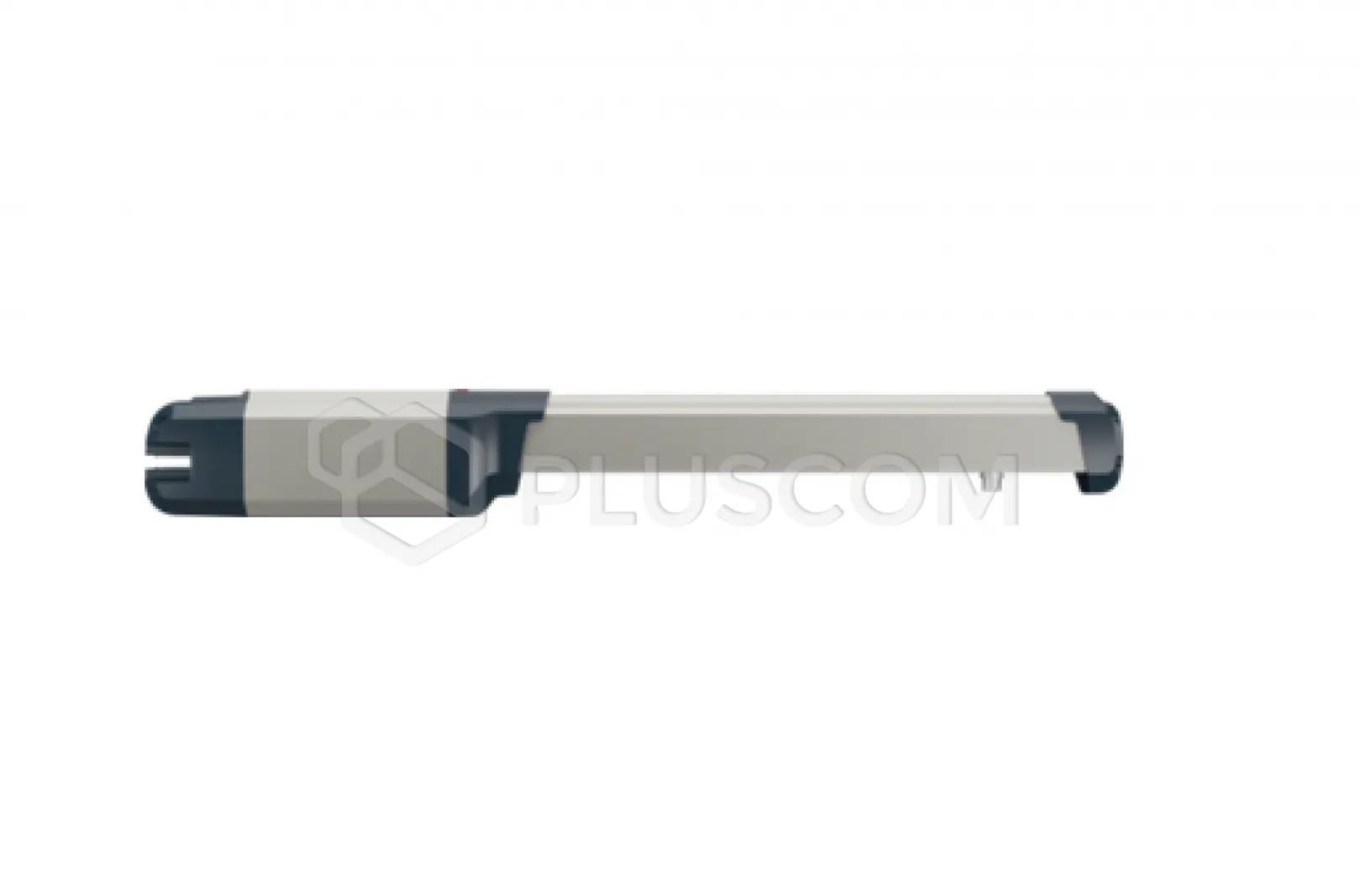

BFT 2614565 Self-locking actuator PHOBOS BT B25

372,71 EUR including 23.00% VAT
Product code: #38801
Manufacturer: BFT
  • Max. leaf length: 3m
  • Max. leaf weight: 400kg
  • Engine power supply: 24V
  • For intensive use
  • Magnetic limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2614565 Self-locking actuator PHOBOS BT B25


Electromechanical, self-locking, 24 V actuator for swing gates weighing up to 400 kg and up to 3 m long.

FEATURES:

  • Thanks to the opening speed, PHOBOS BT B VELOCE significantly shortens the waiting time and allows for the fastest possible snow removal from the roadway, making entry to the property safer. Thanks to its closing speed, it closes the gate quickly, reducing the risk of break-ins
  • 24V technology and electronic control work for the safety of people in the event of impacts without the need for additional safety devices
  • The exclusive D-Track technology increases the safety of the automation, ensuring a minimum thrust sufficient to guarantee movement and enabling adaptive force management to changing conditions of use and environment
  • One of the most compact operators on the market, it can be flexibly used in wide installation conditions even in the case of limited space or deep columns

Technical Data:

  • Unlocking Personalised key
  • Maximum angle 119 °
  • Max. gate panel length without electric lock 2 m
  • Max. opening cycles per hour 30
  • Manoeuvring time (90°, without deceleration, with maximum leaf and maximum weight) Approx. 13 s
  • Max. door/gate leaf weight 400 kg
  • Board power supply 230 V
  • Working environment (max.) -20 ÷ 55 °C
  • Limit switch type Magnetic
  • Motor voltage 24 V
  • Control unit THALIA BT A80. ZARA BT A80
  • Protection class IP44
  • Slowing down YES
  • Power consumption 40 W
  • Type of actuator electromechanical wings
  • Connectivity no
  • Impact response D-Track
  • Push and pull force 2000 N
  • Actuator weight 4.8 kg
  • Mechanical lock
  • Usable piston stroke 360 ​​mm
  • Max. door/gate leaf width 3 m
