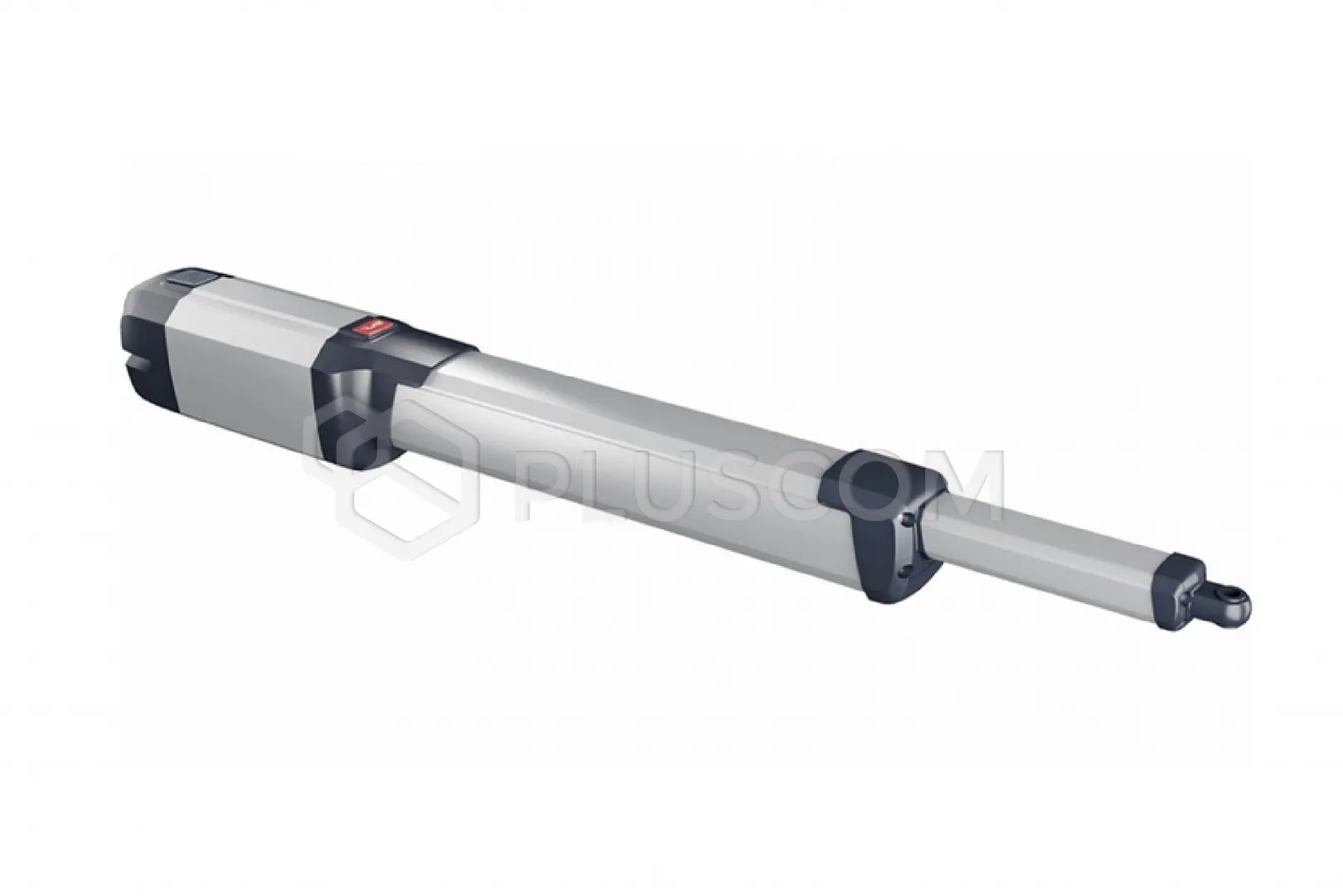

BFT 2614563 Self-locking actuator for swing gates KUSTOS BT B40

BFT 2614563 Self-locking actuator for swing gates KUSTOS BT B40

FEATURES:

• Strength and efficiency: The actuator ensures smooth and quiet operation of the gate, even with intensive use. Thanks to its design, it can handle heavy gates up to 4 meters long.
• Safety: Built-in safety features such as obstacle detection and self-locking ensure safe gate operation.
• Easy installation: Intuitive assembly and detailed user manual make installing the actuator simple and do not require specialist skills.
• High-quality workmanship: The actuator is made of durable materials, ensuring its long life.
• Compatibility: The KUSTOS BT B40 actuator is compatible with a wide range of BFT accessories and control units, allowing you to create a comprehensive gate automation system.

  24 V technology and electronic control ensure people's safety in the event of an impact without the need for additional safety devices.

  One of the most compact drives on the market, can be flexibly used in wide installation conditions even in the case of limited space or deep columns.

  Technical data:

  • Power consumption 40 W
  • Plate power supply 230 V
  • Mechanical lock
  • Push and pull force 2000 N
  • Sash actuator type electromechanical
  • Unlocking Personalised key
  • Usable piston stroke 355 mm
  • Max. door/gate wing weight 700 kg
  • Maneuvering time (90°, without releases, at maximum wing and maximum weight) approx. 16 s
  • Max. opening cycles per hour 30
  • Maximum angle 124 °
  • Maximum door/gate leaf width 4 m
  • Working environment (max.) -20 ÷ 55 °C
  • Limit switch type Magnetic
  • Maximum gate panel length without electric lock 3 m
  • Protection class IP44
  • Slowdown YES
  • Motor voltage 24 V
  • Control unit THALIA
  • Connectivity no
  • Impact response D-Track
