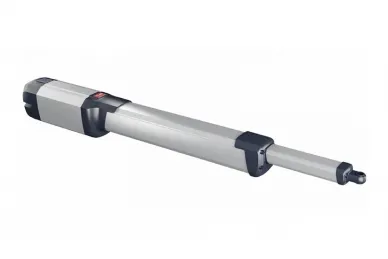

BFT 2614562 Self-locking actuator for swing gates KUSTOS BT B25

442,15 EUR including 23.00% VAT
Product code: #38799
Manufacturer: BFT
  • Max. leaf length: 3m
  • Max. leaf weight: 400kg
  • Engine power supply: 24V
  • For intensive use
  • Magnetic limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2614562 Self-locking actuator for swing gates KUSTOS BT B25


BFT KUSTOS BT B25 is an advanced electromechanical actuator, designed specifically for swing gate automation. The model marked with the code 2614562 is distinguished by its solid construction and a number of innovative solutions that guarantee reliable operation and long service life.

FEATURES:

  • Self-locking: Thanks to this function, the gate remains safely closed even in the event of a power failure, ensuring a high level of safety.
  • Power supply voltage: 24V DC, which translates into low energy consumption and greater resistance to interference.
  • Intended use: Ideal for swing gates weighing up to 400 kg and up to 3 meters long.
  • Efficiency: Fast and smooth gate movement, making everyday operation convenient and comfortable.
  • Functionality:
    • Magnetic limit switches: Facilitate precise setting of the gate's open and closed positions.
    • Key release: Allows manual opening of the gate in the event of a power failure or other problems.
    • Amperometric obstacle detection function: Ensures maximum safety of use by stopping the gate when it encounters obstacles.
24 V technology and electronic control work for the safety of people in relation to impacts without the need for additional safety devices.

One of the most compact drives on the market, can be flexibly used in wide installation conditions even in the case of limited space or deep columns.

Technical data:

  • Max. opening cycles per hour 30
  • Maximum angle 119 °
  • Maximum door/gate leaf width 3 m
  • Manoeuvring time (90°, without releases, at maximum leaf and maximum weight) approx. 12 sec
  • Operating environment (max.) -20 ÷ 55 °C
  • Limit switch type Magnetic
  • Max. gate panel length without electric lock 2 m
  • Protection class IP44
  • Slowdown YES
  • Motor voltage 24 V
  • Control unit THALIA
  • Connectivity no
  • Impact response D-Track
  • Power consumption 40 W
  • Board power supply 230 V
  • Mechanical lock
  • Push and pull force 2000 N
  • Wing actuator type electromechanical
  • Unlocking Personalized key
  • Usable piston stroke 250 mm
  • Max. door/gate wing weight 400 kg
Download
User manual 1.12 MB
