Bft 2614324 Control unit Bft THALIA BT A80 DUO

311,35 EUR including 23.00% VAT
Product code: #38790
Manufacturer: BFT
  • Power supply: 24V
  • Board power supply: 230 V
  • For use with: PHOBOS N BT, N L BT, IGEA BT, ELI 250 N BT
  • Maximum number of remotes loaded: 63
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

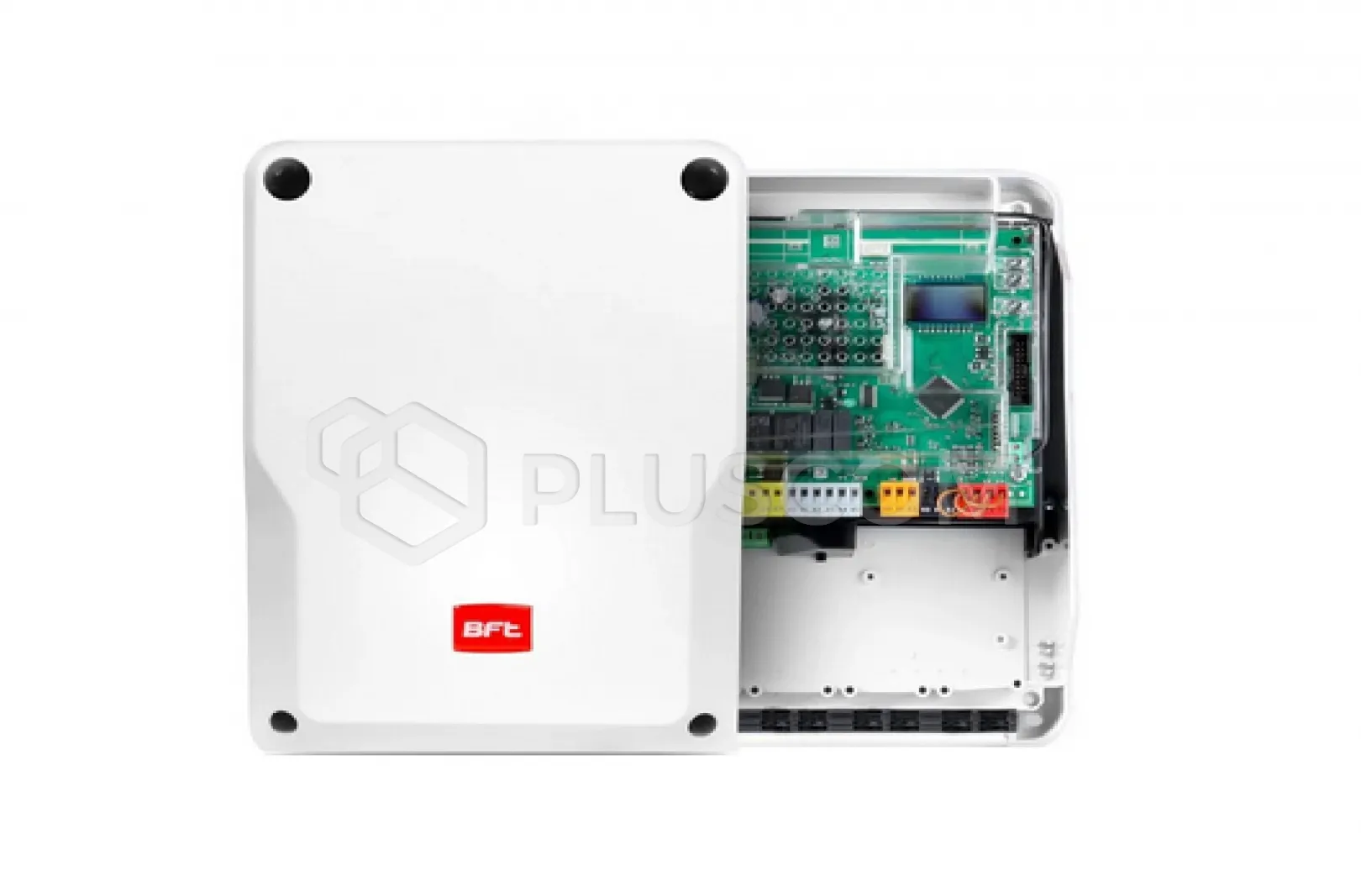

BFT 2614324 Bft THALIA BT A80 DUO Control Unit


24 V control unit with LCD display for PHOBOS N BT, N L BT, IGEA BT and ELI 250 N BT actuators.
Built-in radio receiver with rolling code, memory for 63 remote controls.
Programmable inputs-outputs, supports 2 independent photocell lines.

FEATURES:

  • Modularity: thanks to additional modules you can enrich your installation offer, satisfying the requirements of a wide range of customers. The new smart card, if necessary, will be able to have more electrical power to drive larger engines or those that operate in difficult conditions
  • Connectivity: thanks to the double connector, you can connect the gateway and leave it always connected, and also use the second slot to fully exploit the potential of the b-eba family cards
  • Portability: the memory capacity of the remote controls has been increased from 64 to 128 positions, but if necessary, you can choose a 2048-position module to manage installations with a large number of saved remote controls

Technical data:

  • Power supply: 230Vac ±10% 50Hz
  • Mains/low voltage insulation: > 2MOhm 500Vdc
  • Operating temperature: -10°C +55°C
  • Thermal protection: software
  • Dielectric stiffness: mains/LV 3750Vac for 1 minute
  • Motor output current: 7.5A+7.5A max
  • Motor relay switching current: 10A
  • Maximum motor power: 180W + 180W (24Vdc)
  • Auxiliary circuit power supply: 24Vac (180mA max consumption); 24Vac safe (180mA max consumption)
  • AUX 3: N.O. contact (24Vac/max.1A)
  • Light indicator: 24Vac max. 25W
  • Dimensions: 194x236x100 mm
  • Number of combinations: 4 billion
  • Maximum number of remotes to be loaded: 63
Download
