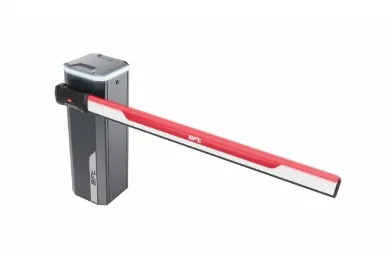

BFT 2613364 MAXIMA ULTRA 36 XL 230V EX4 Barrier column up to 4m

4630,69 EUR including 23.00% VAT
Product code: #38732
Manufacturer: BFT
  • Permissible arm lengths: 4m
  • Gear type: reversible
  • Opening time: 0.8 - 1.2 s
  • Motor type: asynchronous, three-phase
  • Automatic opening in the event of a power cut
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2605230 EBB KIT ATML BFT 2601387 MAXIMA U36 - Barrier arm holder detachable outside BFT 2601378 MU36 and GIOTTO ULTRA - (BOOM PS50) Aluminum arm L= 5m BFT 2601327 Top cover of the barrier without LED lighting - CROWN MAXIMA U36 BFT 2601279 MAXIMA ULTRA 36/GIOTTO ULTRA 36 - Curtain (apron) for the barrier arm BTM-SKIRT BFT 2601277 MU36 and GIOTTO ULTRA - Aluminum arm L= 6m BFT 2601276 ALLU 2 MAXIMA ULTRA LED lighting power supply module BFT 2601264 DIMA PRO 36 mounting base BFT 2605244 LIGHT PS60-IP67 LED Lighting Kit BFT 2601263 OMEGA PS MAXIMA U36 - Arm holder with cover and mounting screws

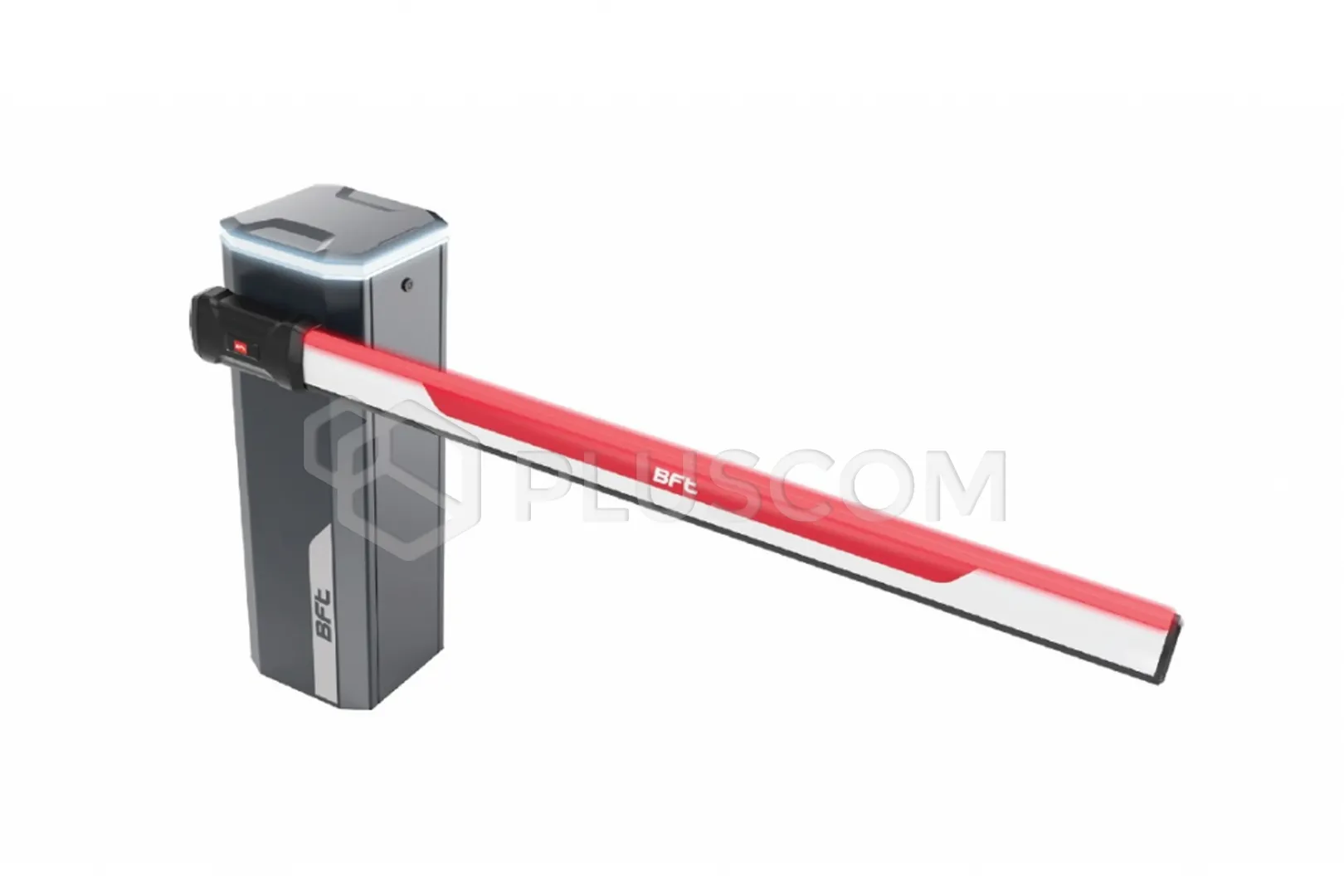

BFT 2613364 MAXIMA ULTRA 36 XL 230V EX4 CENTRAL UNIT FOR 4m ARM (P940094 00012)


Electromechanical barrier for 230V with inverter and asynchronous three-phase motor for very intensive work.
It allows to manage gates up to 4m with a fully equipped arm in one model.

Suitable for installation in areas with high traffic frequency and frequent reversal of the barrier's movement direction (e.g. toll gates on highways, car parks with high traffic frequency, etc.).

Electromechanical barrier 230V with automatic opening in the event of power failure, without additional UPS.

FEATURES:

  • opening time from 0.8 to 1.2 seconds with slow-down function
  • three-phase asynchronous motor
  • designed for continuous operation
  • mechanical lock
  • housing made of stainless steel
  • built-in encoder
  • maintenance available from three different points - from the top of the barrier, through the front door or the back
  • three arm mounting points - for different loads
The ROD & CRANK solution used provides protection against vandalism, preventing unauthorized opening of the barrier. At the same time, it provides mechanical acceleration and deceleration of the arm with smooth movement.

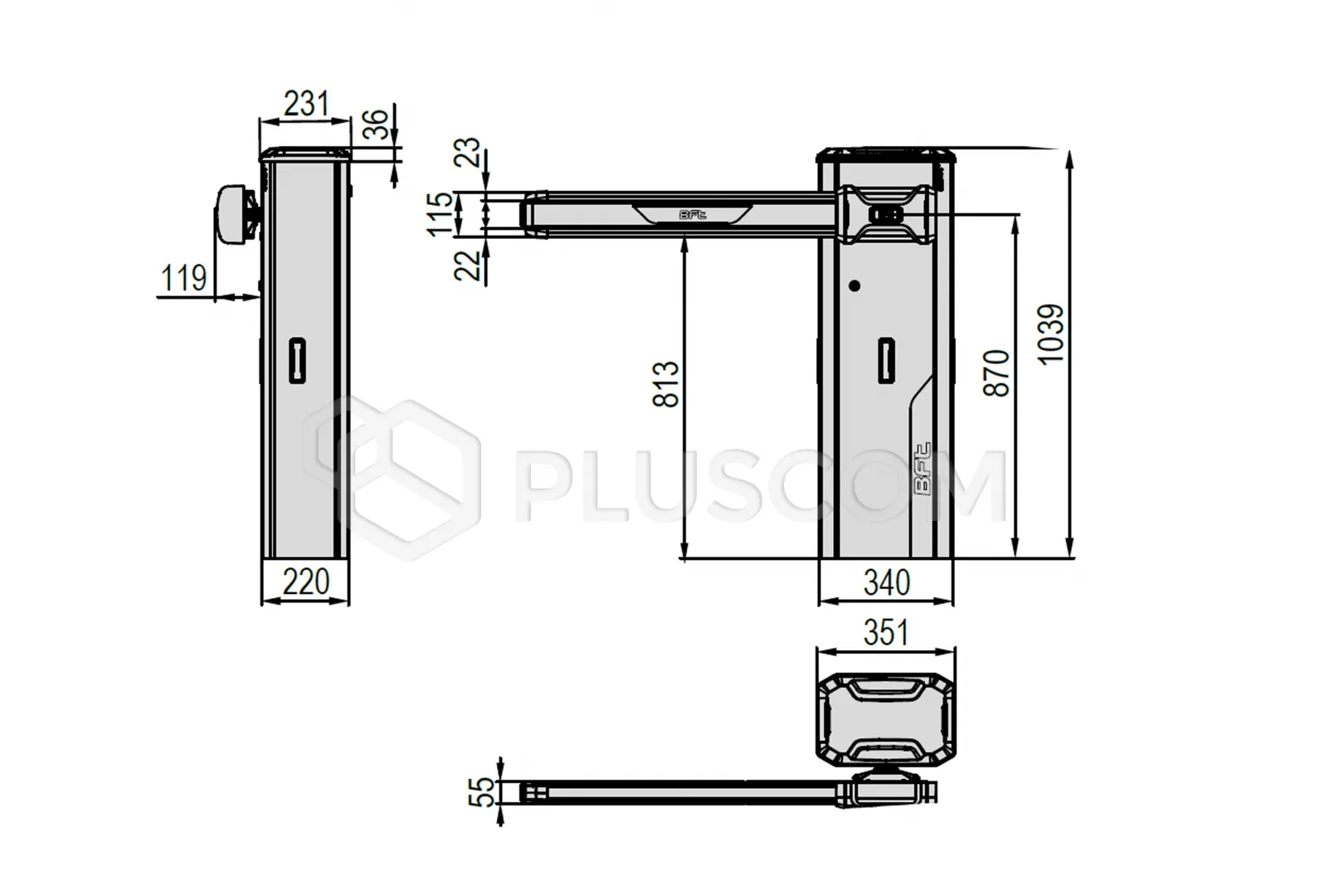

Dimensions:

Dimensions:

TECHNICAL DATA:

  • Motor power supply: 230V
  • Control unit: CSB-XT
  • Usable passage light: up to 3m
  • Use frequency: 5,000 cycles per day
  • Open/close time: 0.8 to 1.2 s
  • Motor type: asynchronous 3-phase
  • Gear type: reversible
  • Operating temperature range: -40°C - +60°C
  • Tightness class: IP55
Download
User manual 5.89 MB
