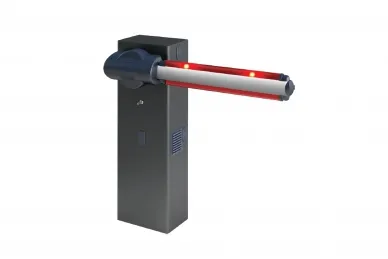

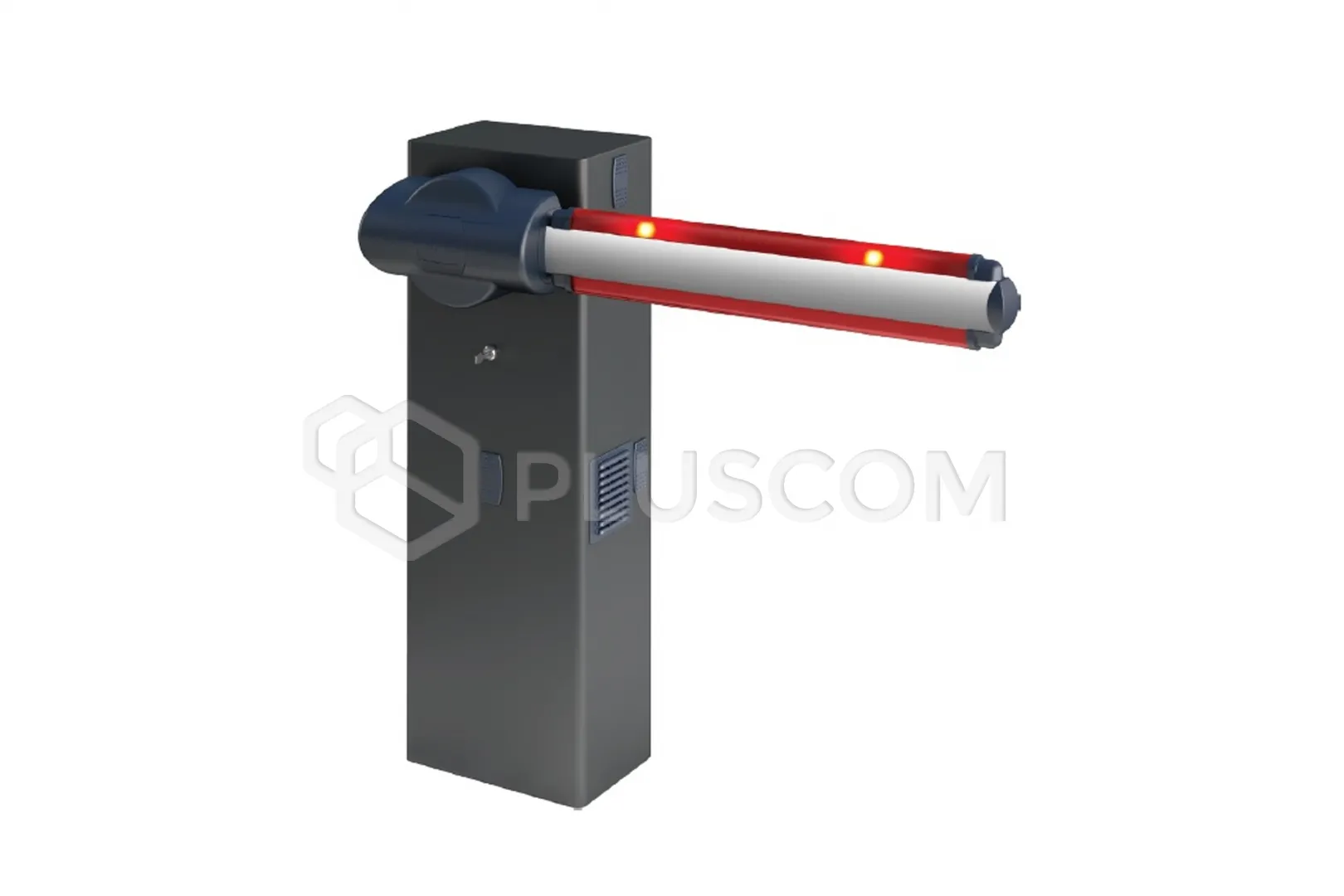

BFT 2613233 MOOVI 60 RAL Barrier column up to 6m

BFT 2613233 Barrier MOOVI 60 RAL 230V up to 6m (P940065 00102)

The MOOVI 30 barrier is designed for entrances up to 6m wide.
It has a 230 V motor with its own cooling system. It has a built-in SHYRA AC BA control unit with an eeLink connector, an integrated 2-channel receiver for 63 remote controls and an additional comb connector for connecting the CLONIX receiver (pluggable). It has the ability to control OPEN-CLOSE (TW trimmer), emergency STOP and automatic closing time adjustment via the TCA trimmer. The opening/closing point is set on microswitches and mechanical limiters.
Both flat and tube arms can be used with the unit. The barrier is factory-fitted for mounting on the left side, looking from the property.
RAL color on individual request.
Safety is ensured by the obstacle detection function implemented via an optical encoder. After hitting an obstacle, the barrier immediately stops and reverses movement.

TECHNICAL DATA:

• Power supply voltage: 230V ±10% 50 Hz
• Power consumption: 300 W
• Control unit: SHYRA AC BA
• Type of limit switches: Electromechanical
• Opening time: 8s
• Use frequency: 600 cycles per day
• Slowdowns: No
• Lock: Mechanical
• Unlock: Personalized key
• Reaction to obstacle: Sensitive edge strip
• Usable passage light: 6 m
• Use frequency: medium intensive
• Class tightness: IP24
• Coating: RAL color on individual request
• Operating temperature range: from -20°C to +55°C
