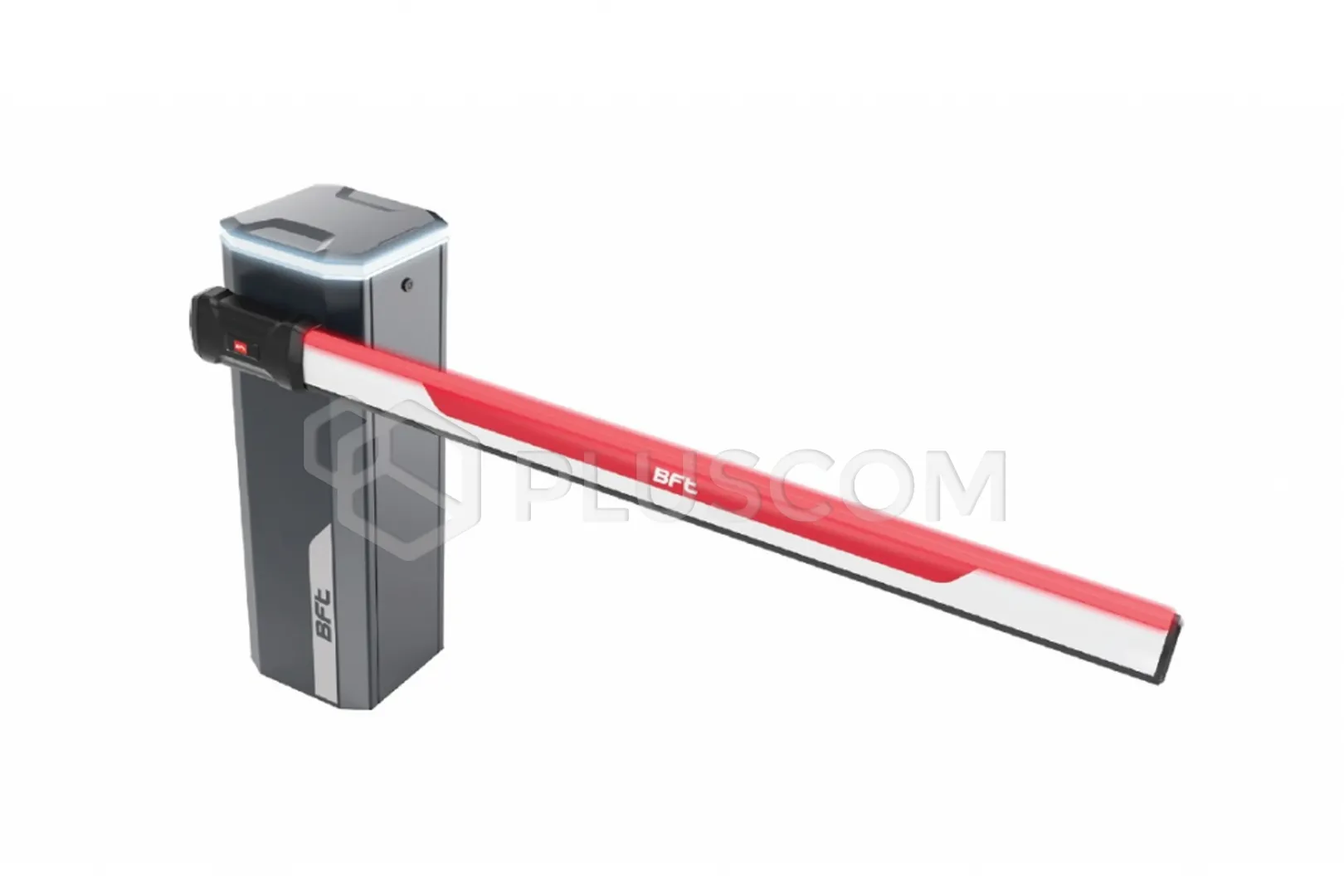

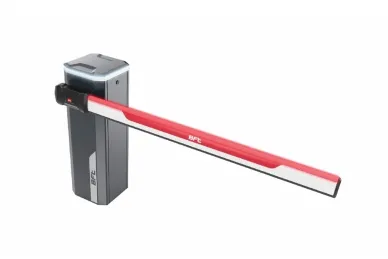

BFT 2613062 MAXIMA ULTRA 36 XL 230V Barrier up to 6m

4189,48 EUR including 23.00% VAT
Product code: #38722
Manufacturer: BFT
  • Steel casing RAL 7015 + extra strong spring
  • Bar length up to 6m
  • Opening time: 0.7 - 3.9 s
  • Motor type: asynchronous, three-phase
  • Top cover not included
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2605241 LIGHT PS/ES 30-IP67 LED lighting kit BFT 2601378 MU36 and GIOTTO ULTRA - (BOOM PS50) Aluminum arm L= 5m BFT 2601377 MU36 and GIOTTO ULTRA - (BOOM PS40) Aluminum arm L= 4m BFT 2601376 MU36 and GIOTTO ULTRA - (BOOM PS30) Aluminum arm L= 3m BFT 2601327 Top cover of the barrier without LED lighting - CROWN MAXIMA U36 BFT 2601277 MU36 and GIOTTO ULTRA - Aluminum arm L= 6m BFT 2614120 MITTO COOL C4 remote BFT 2601276 ALLU 2 MAXIMA ULTRA LED lighting power supply module BFT 2614118 MITTO COOL C2 remote control BFT 2601264 DIMA PRO 36 mounting base

BFT 2613062 MAXIMA ULTRA 36 XL 230V CENTRAL UNIT FOR ARM 2-6m, VERSION WITH STRONGER SPRING


Electromechanical barrier for 230V with inverter and asynchronous three-phase motor for very intensive work.
It allows to manage passages from 2 to 6 meters with an arm fully equipped with accessories in one model.

The barrier unit should be equipped with one of the following top cover options:
  • top cover without lamps
  • top cover with RGB lamps with flashing, traffic signal, diagnostics functions

FEATURES:

  • opening time from 0.7 to 4 seconds with slow-down function
  • three-phase asynchronous motor
  • designed for continuous operation
  • mechanical lock
  • stainless steel housing
  • built-in encoder
  • maintenance available from three different points - from the top of the barrier, through the front door or the rear
  • three arm mounting points - for different loads
The ROD & CRANK solution used provides protection against vandalism, preventing unauthorized opening of the barrier. At the same time, it provides mechanical acceleration and deceleration of the arm with smooth movement.

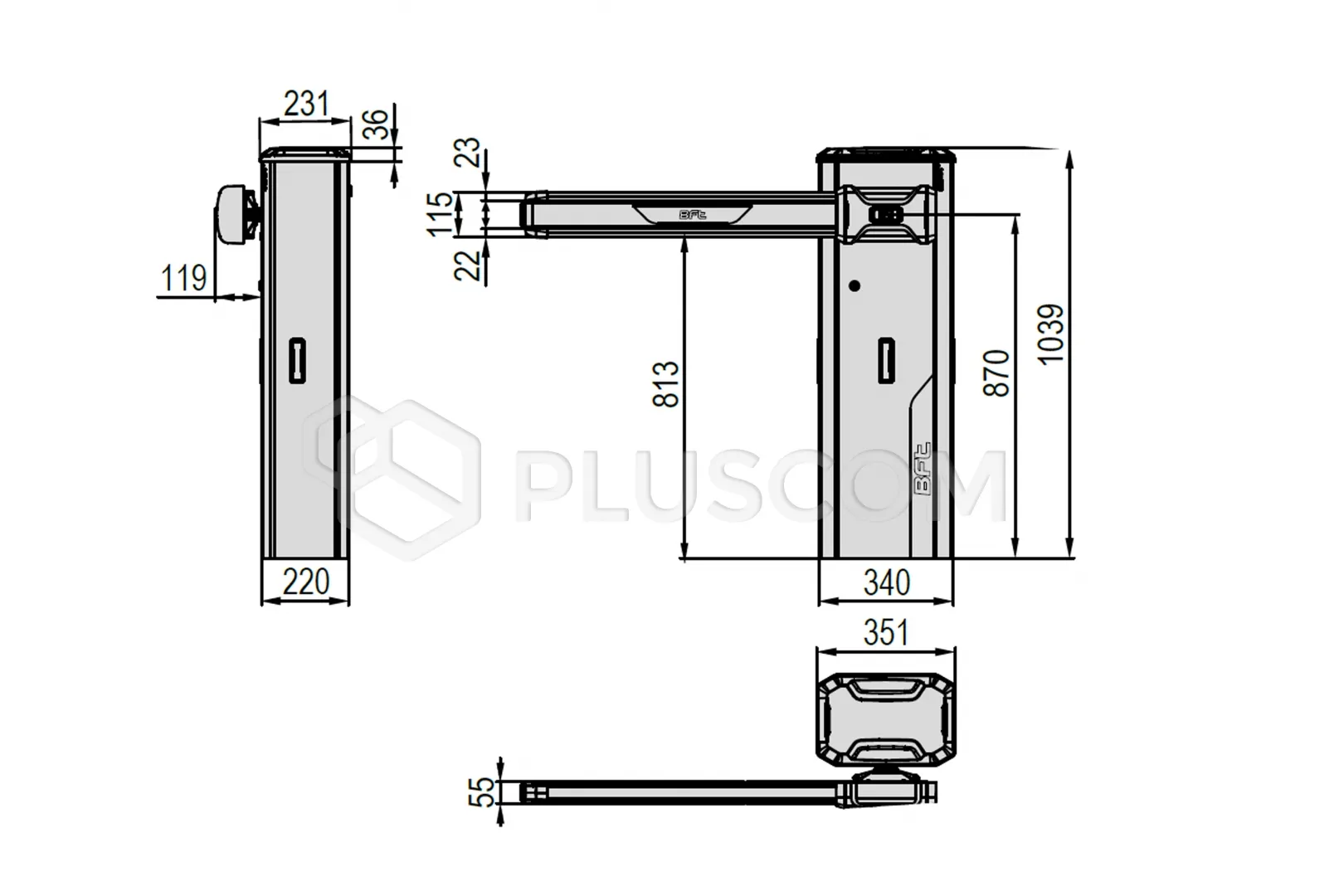

Dimensions:

Dimensions:


TECHNICAL DATA:

  • Control unit: CSB-XT
  • Usable passage light: from 2m to 6m
  • Use frequency: 5,000 cycles per day
  • Open/close time: 0.7 to 3.9 s
  • Motor type: asynchronous 3-phase
  • Gear type: in oil bath
  • Inverter: yes
  • Impact response: optical encoder
  • Mechanical lock, ROD & CRANK gear(anti-vandal)
  • Unlocking: inside the structure, special crank
  • Powder coated steel housing RAL 7015
  • Operating temperature range: -40°C - +60°C
  • Tightness class: IP55
Download
User manual 5.89 MB
