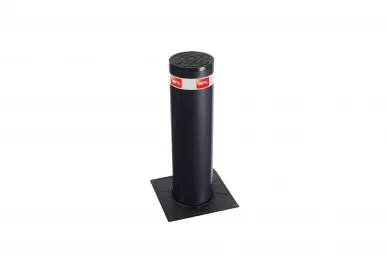

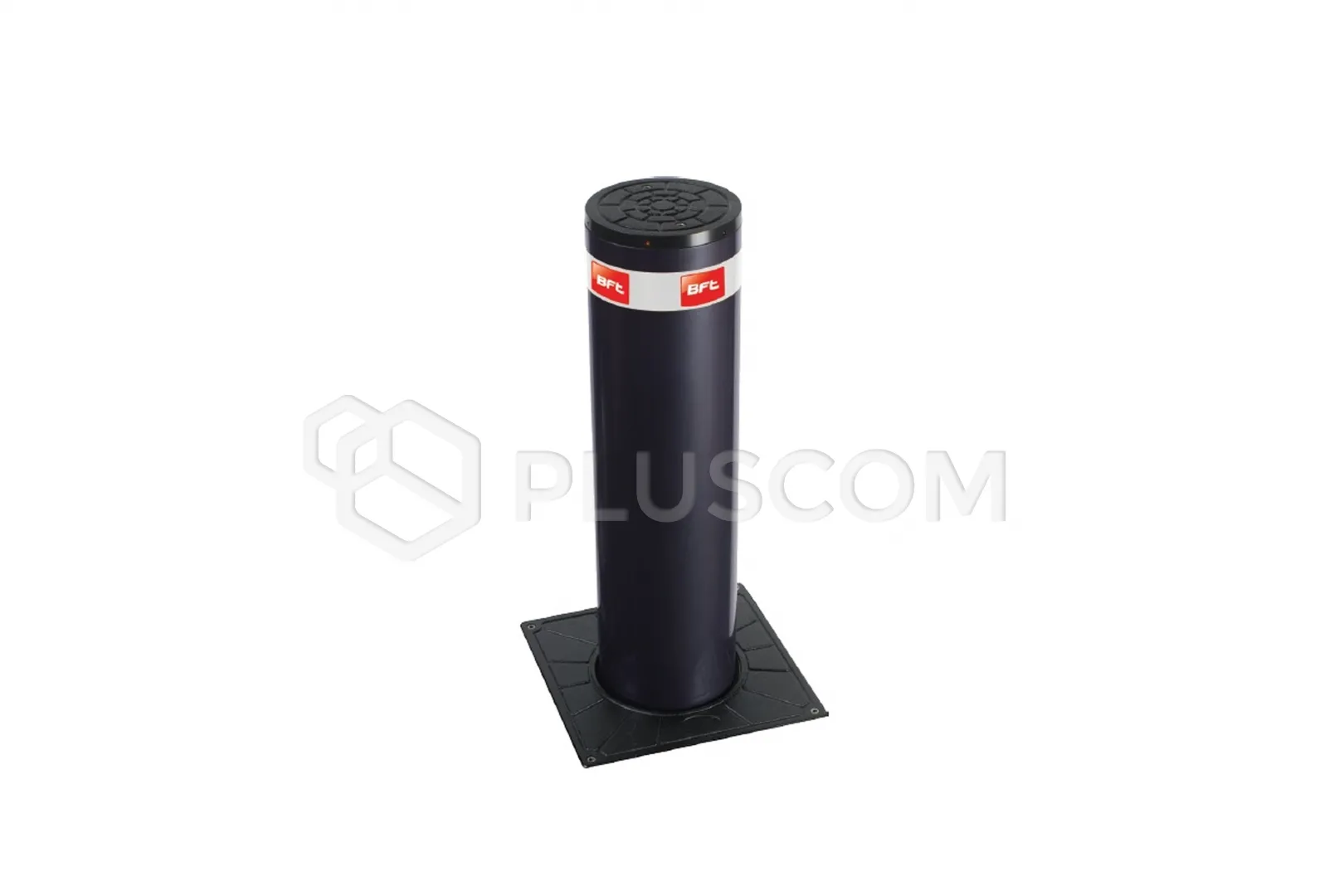

BFT 2613061 STOPPY B 115/500 Road barrier

BFT 2613061 STOPPY B 115/500 Road barrier with reflective strip and LED lighting (P970088 00001)

Road barrier designed to block the passage in places with medium traffic intensity. Particularly recommended in locations requiring architectural consistency or a special form of protection.

The firewall is operated by means of a PERSEO CBE control unit with U-Link port, CLONIX 2048 receiver and heating circuit function (up to -40 ° C) with the following features:

• It can manage up to 4 firewalls at the same time (or up to 2 XPASS B 1200).
• Control unit power supply voltage: 230Vac +- 10%, 50/60Hz
• Motor power supply voltage: 230Vac, 12A max
• Accessories power supply voltage: 24Vac, 1A max
• Main features: removable terminal blocks, digital programming, 3-digit display, Proxima Blue programmer connector, integrated CLONIX2048 receiver, integrated TERMO N heater (heating level adjustment), full support for anti-terrorist posts, dedicated UPS status input (configurable), U-Link communication port, programmable inputs and outputs
• Main functions: : automatic re-closing, separate OPEN-CLOSE inputs, early lighting, deadman function, automatic and semi-automatic, limit switches on opening and closing, possibility of reading error history, slowdowns for electromechanical barriers, possibility of setting service inspection (number of cycles), EFO (Emergency Fast Operation) management

TECHNICAL DATA:

• Post diameter: 2115 mm
• Post height: 500 mm
• Open time: 7s
• Type of limit switches: REED magnetic sensor
• Power supply voltage: 230V ±10% 50 Hz
• Motor power: 130W
• Slowdowns: YES
• Impact resistance: 6000 J
• Shear resistance: 60000 J
• Unlocking: reversible in the absence of voltage, possibility of using emergency power supply for the brake
• Frequency of use: medium intensive
• Tightness class: IP67
• Operating temperatures: -40 ÷ 60 °C
