BFT 2612949 XPASS B 275/800C LI STAINLESS STEEL 316 SD Firewall

16221,45 EUR including 23.00% VAT
Product code: #38716
Manufacturer: BFT
  • Height: 800mm
  • Diameter: 275mm
  • Foundation box and LED lighting included
  • PAS 68:2010 7500/50/N2 Anti-Terrorist Certificate
  • The barrier remains up when there is no power
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2614120 MITTO COOL C4 remote BFT 2614118 MITTO COOL C2 remote control

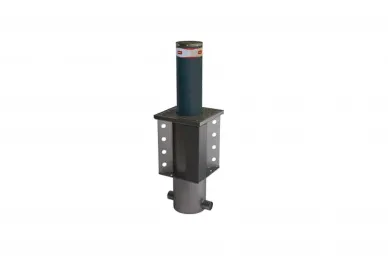

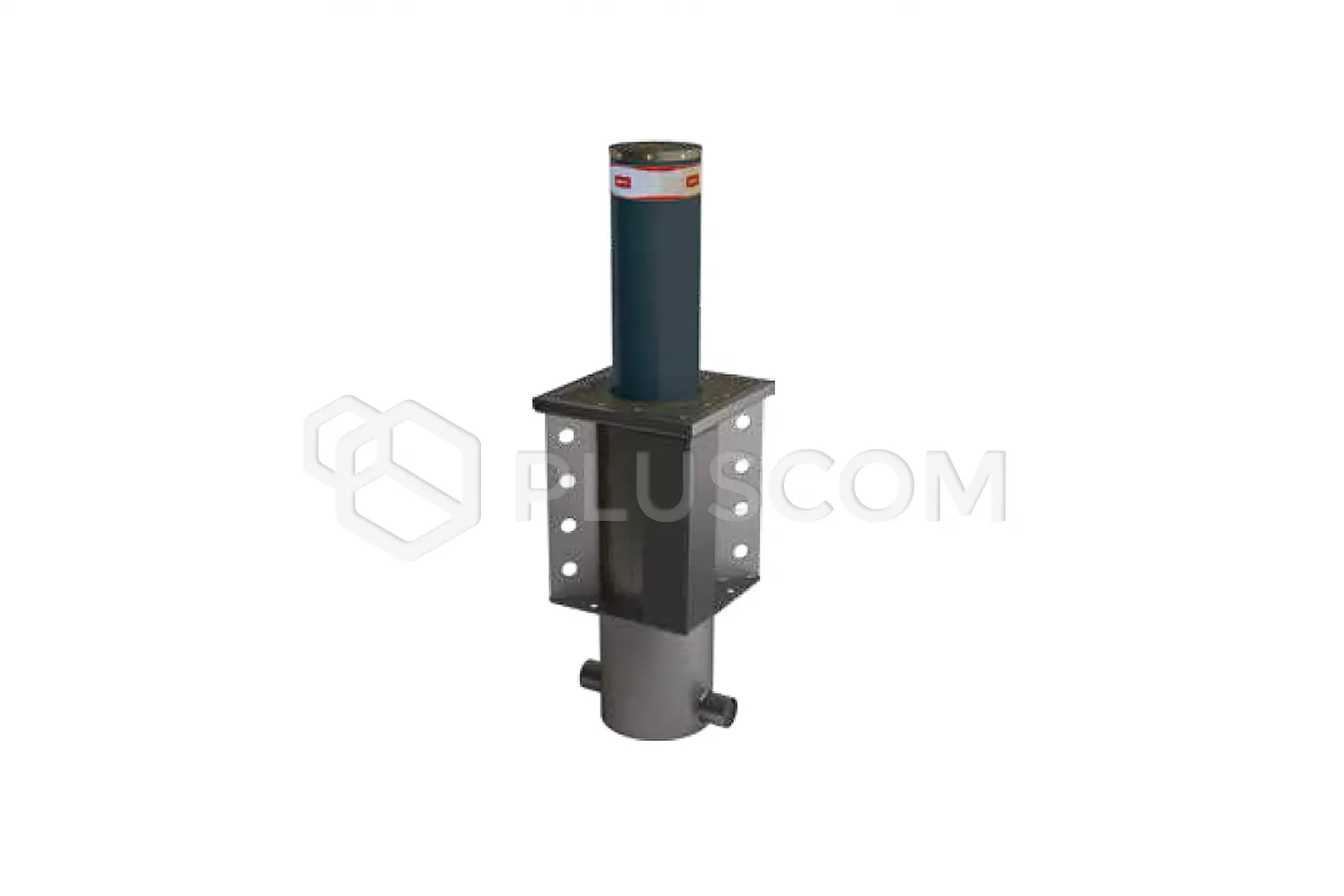

BFT 2612949 XPASS B 275/800C LI STAINLESS STEEL 316 SD Hydraulic anti-terrorist barrier K4 (P970094 00302)


The XPASS B 275/800 K4 anti-terrorist barrier is designed to block passage in places requiring a special form of security. The level of security is based on tests carried out by an accredited external laboratory in accordance with international standards ASTM2656:2007 M30 - PAS 68:2013 V/7500[N2]/48/90:5.2.

800 mm high post with a diameter of 273 mm and a cap with LED lights.
In the event of a power failure, the bollard will continue to close the crossing.

Protection is guaranteed even in the case of a single barrier. Very high resistance is ensured by the cylinder wall thickness of up to 10 mm made of Fe 510 steel (S 355 JR).

For use with the PERSEO CBE 230.P SD control unit:
  • Can manage up to 4 barriers at the same time (or up to 2 XPASS B 1200).
  • Control unit power supply voltage: 230Vac +- 10%, 50/60Hz
  • Motor power supply voltage: 230Vac, 12A max
  • Accessories power supply voltage: 24Vac, 1A max
  • Main features: removable terminal blocks, digital programming, 3-digit display, Proxima Blue programmer connector, integrated CLONIX2048 receiver, integrated TERMON heater (heating level adjustment), full support for anti-terrorist posts, dedicated UPS status input (configurable), communication port U-Link, programmable inputs and outputs
  • Main functions: automatic re-closing, separate OPEN-CLOSE inputs, early lighting, deadman function, automatic and semi-automatic, limit switches on opening and closing, possibility to read error history, slowdown for electromechanical barriers, possibility to set service inspection (number of cycles), EFO (Emergency Fast Operation) management

TECHNICAL DATA:

  • Post diameter: 275 mm
  • Post height: 800 mm
  • Post thickness: 10 mm
  • Power supply: 230 V
  • Break-resistant: 800,000 J
  • Lifting time: max. 7s
  • Down time: 4s
  • Obstacle response: pressure valve
  • Anti-terrorism certification: PAS 68:2010 7500/50/N2
  • Limit switch type: REED magnetic sensor
  • Use frequency: 2000 c/24h
  • Manual mode, release: reversible in case of power failure
  • Control unit: PERSEO CBE
  • Painted steel cylinder: AISI 316L stainless steel
  • Protection class: IP67
  • Working environment (max.): -40 ÷ 60 °C
