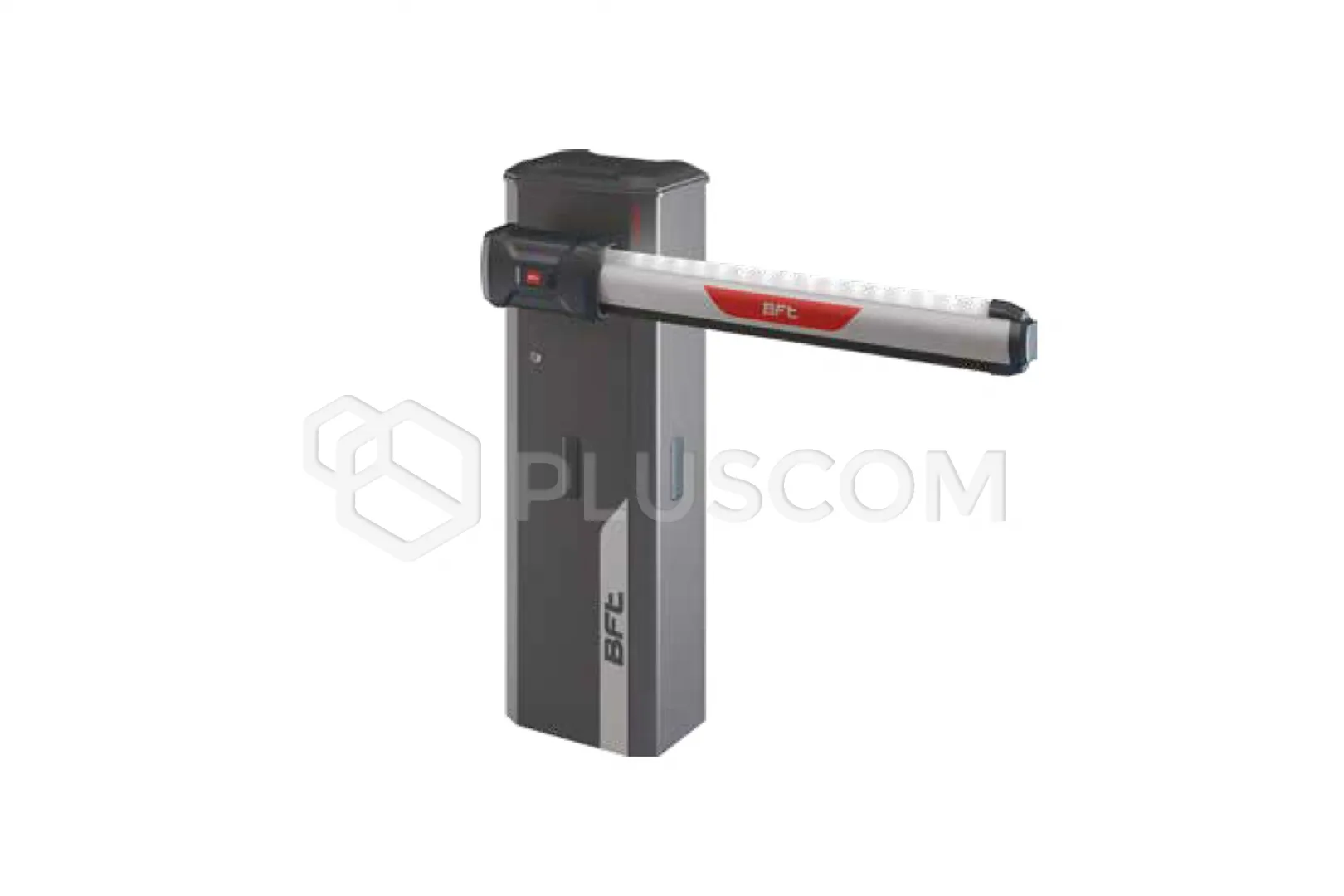

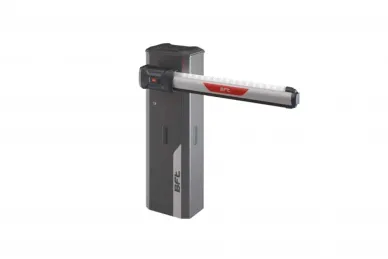

BFT 2612827 GIOTTO BT A ULTRA36 XL 230V50 CENTRAL
UNIT FOR ARM UP TO 6m, COLOUR ON REQUEST
The electromechanical barrier for intensive use allows control of passages up
to 6m wide. It is equipped with a 24 VDC motor with a wide range of
accessories, making it the ideal choice for any investment.
FEATURES:
- Encoder
- Control unit with U-Link and display
- 24 VDC motor
- Lubricated with new gear grease (no plastic parts)
- Compatible with the new BOOM ES arm and BOOM PS arms.
- New GT-BOARD lighting power supply
- Manual release using a special release key (end user) different from the
door release key (for the installer)
- Common accessories with the Maxima U36 family (depending on the max.
permissible weight)
- Limit switches pre-assembled on the support, easy to dismantle and
reassemble
GIOTTO BT A ULTRA36 is equipped with in the MERAK control unit with U-Link
for extremely fast and precise installations thanks to pre-programmed
scenarios. It is very easy to use, just a few operations on the display are
enough to program it completely.
The control unit is located on the top of the barrier and protected by a solid
aluminum casing for easy and safe use.
Main features:
removable terminal connectors, numbered and colored
(different color for each section), programming using the display and buttons,
integrated two-channel CLONIX64 receiver. Anti-crush system based on D-Track
technology. Slow-downs on opening and closing. U-Link communication port
Main functions:
Possibility of connecting a semaform using TLB+B EBA
IO-DRIVER cards, programmable AUX outputs, programmable IC signal inputs, pulse
locks, hold-to-rUn logic, photo closing (1s), earlier lamp lighting,
opening/closing speed adjustment.

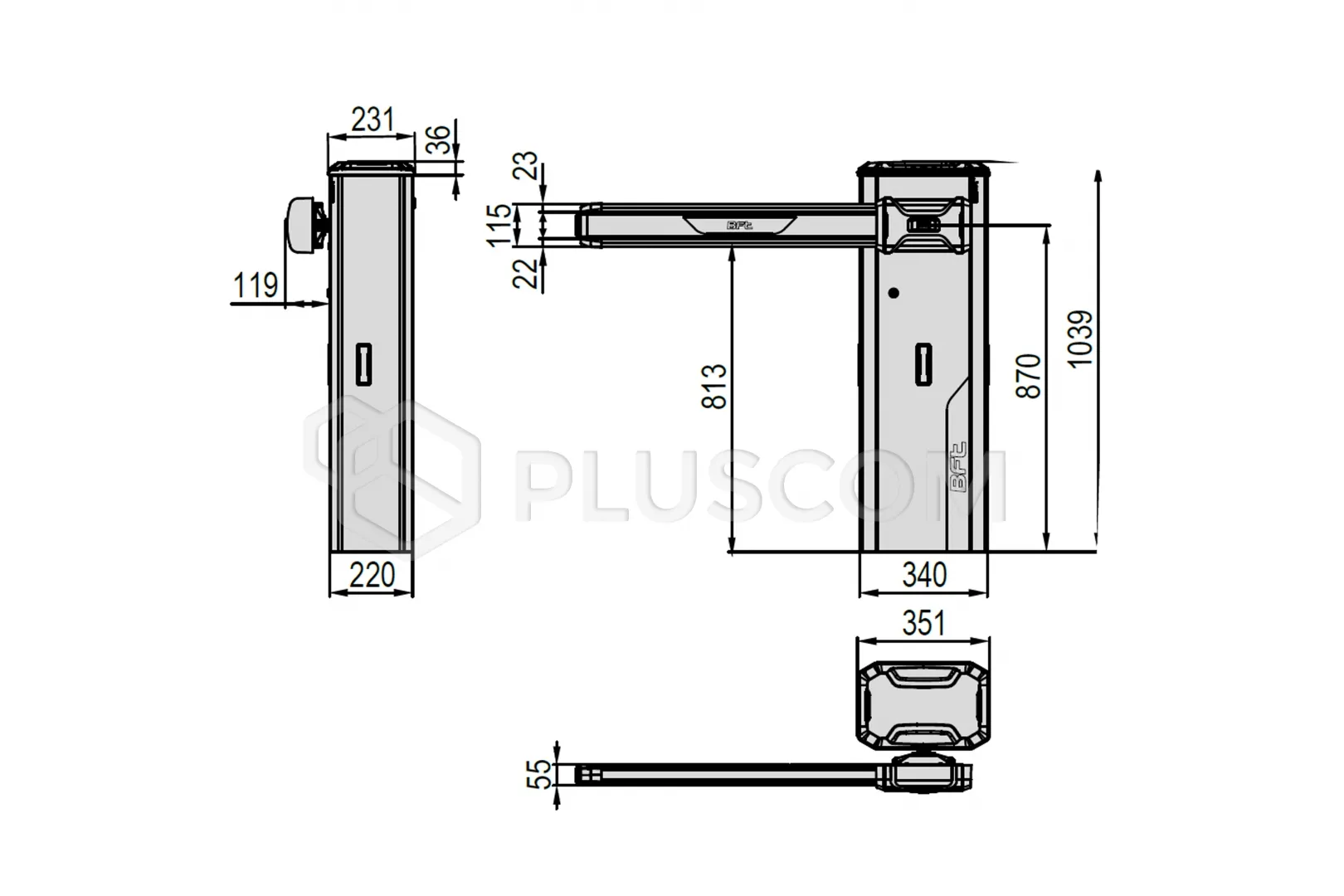

Dimensions:
TECHNICAL DATA:
- Control unit: MERAK
- Power supply voltage: 230V ±10% 50 Hz
- Usable passage light: from 4.5m to 6m
- Use frequency: 2,000 c/24h
- Open/close time: 4 sec.
- Motor supply voltage: 24 V
- Gear type: grease lubricated
- Type of limit switches: electromechanical
- Slowdowns: adjustable
- Lock: mechanical
- Manual mode: personalized key
- Special RAL color - on request
- Temperature range working: -20°C/+55°C
- Protection class: IP54
