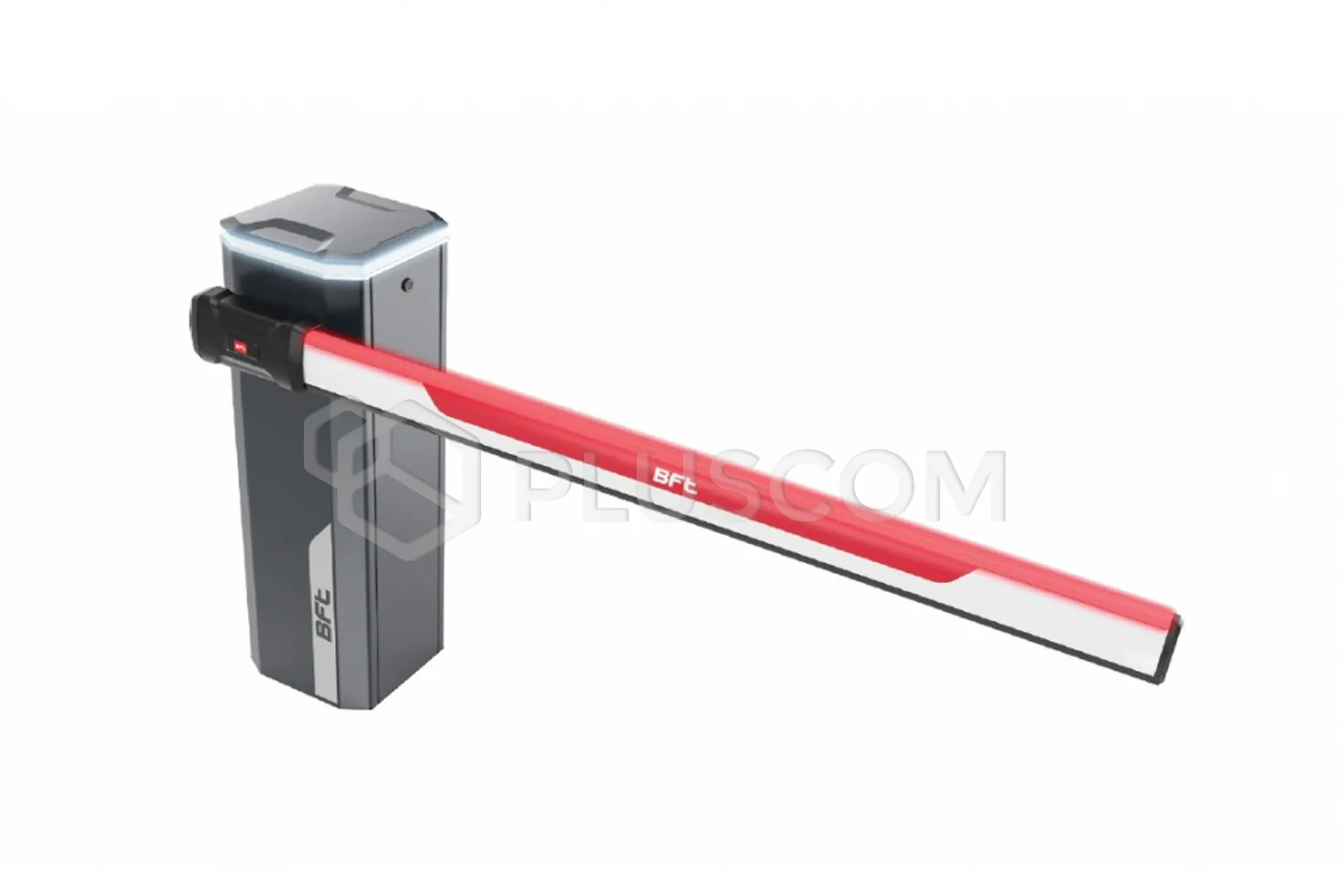

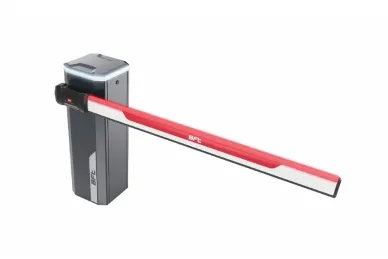

BFT 2612806 MAXIMA ULTRA 36 230V EX4 Barrier column up to 3m

4701,06 EUR including 23.00% VAT
Product code: #38712
Manufacturer: BFT
  • Permissible arm lengths: 3m
  • Gear type: oil bath
  • Opening time: 0.7-3.9s
  • Motor type: asynchronous, three-phase
  • Automatic opening in the event of a power cut
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2601276 ALLU 2 MAXIMA ULTRA LED lighting power supply module BFT 2601264 DIMA PRO 36 mounting base BFT 2601263 OMEGA PS MAXIMA U36 - Arm holder with cover and mounting screws BFT 2605242 LIGHT PS/ES 40-IP67 LED lighting kit BFT 2600942 Top cover of the barrier with LED lighting - CROWN RGB MAXIMA U36 BFT 2605241 LIGHT PS/ES 30-IP67 LED lighting kit BFT 2600216 Fixed arm support FAF 2 BFT 2605234 FULL-SKIRT BFT 2601387 MAXIMA U36 - Barrier arm holder detachable outside BFT 2601377 MU36 and GIOTTO ULTRA - (BOOM PS40) Aluminum arm L= 4m

BFT 2612806 MAXIMA ULTRA 36 230V EX4 CENTRAL UNIT FOR 3m ARM (P940093 00012)


Electromechanical barrier for 230V with inverter and asynchronous three-phase motor for very intensive work.
It allows to manage gates up to 3m with a fully equipped arm in one model.

Suitable for installation in areas with high traffic frequency and frequent reversal of the barrier's direction of movement (e.g. toll gates on highways, car parks with high traffic frequency, etc.).

Electromechanical barrier 230V with automatic opening in the event of a power failure, without additional UPS.

FEATURES:

  • opening time from 0.7 to 4 seconds with slow-down function
  • three-phase asynchronous motor
  • designed for continuous operation
  • mechanical lock
  • housing made of stainless steel
  • built-in encoder
  • maintenance available from three different points - from the top of the barrier, through the front door or the back
  • three arm mounting points - for different loads
The ROD & CRANK solution used provides protection against vandalism, preventing unauthorized opening of the barrier. At the same time, it provides mechanical acceleration and deceleration of the arm with smooth movement.

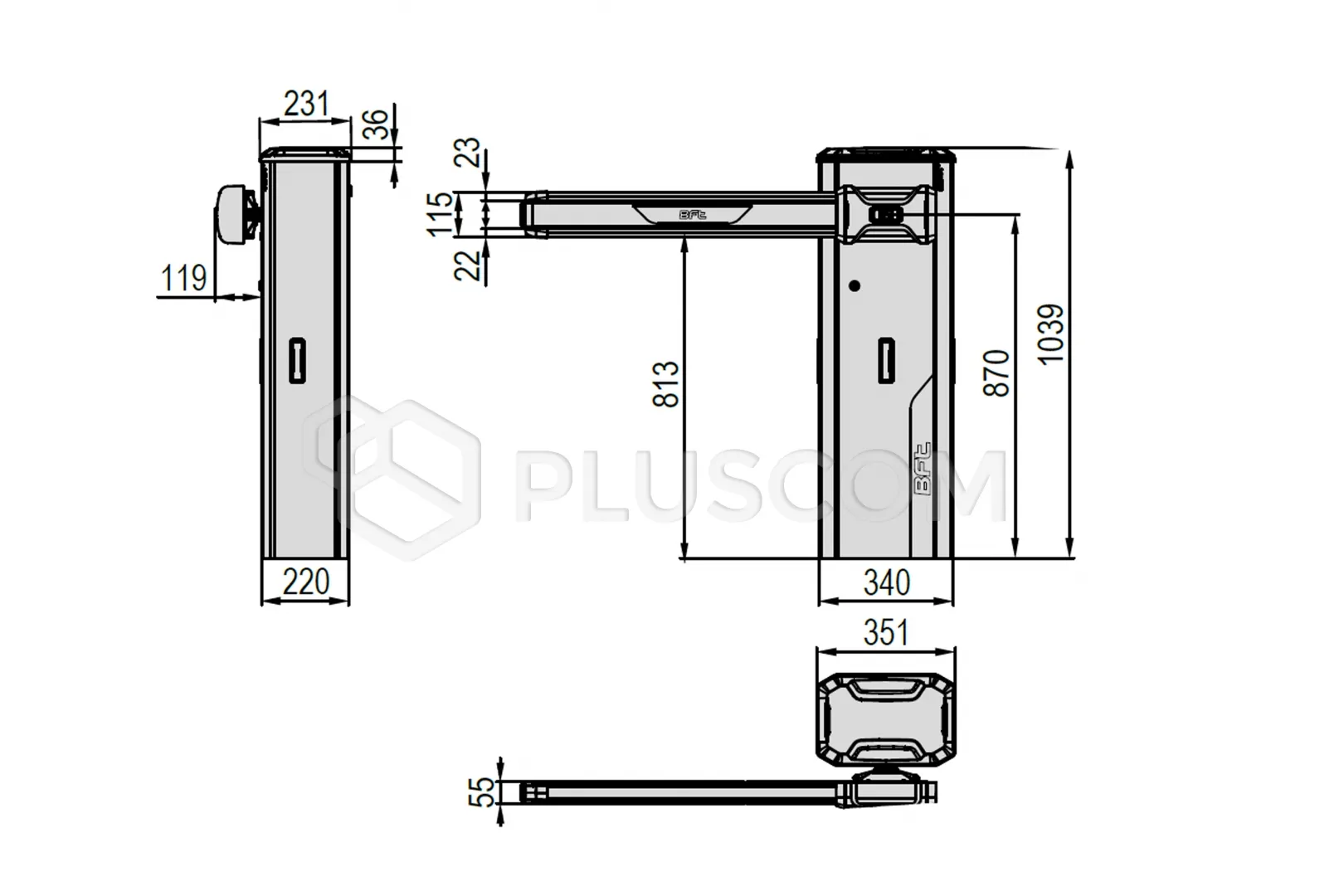

Dimensions:

Dimensions:

TECHNICAL DATA:

  • Motor power supply: 230V
  • Control unit: CSB-Xtreme
  • Usable passage light: fup to 3m
  • Use frequency: 20,000 cycles per day
  • Open/close time: 0.7 to 3.9 s
  • Motor type: asynchronous 3-phase
  • Gear type: in oil bath
  • Operating temperature range: -40°C - +60°C
  • Tightness class: IP55
