BFT 2611972 BFT ATHOS AC A40 KIT swing gate kit

893,10 EUR including 20.00% VAT
Product code: #38700
Manufacturer: BFT
  • Max. leaf length: 4m
  • Max. leaf weight: 400kg
  • Engine power supply: 230V
  • Frequency of use: 60 cycles/24h
  • The use of mechanical bumpers is required

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
0,00 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2611972 BFT ATHOS AC A40 KIT swing gate kit

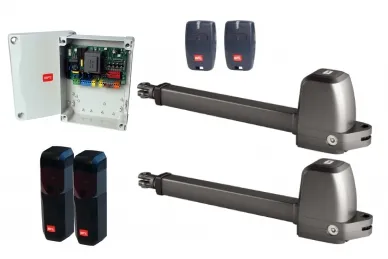

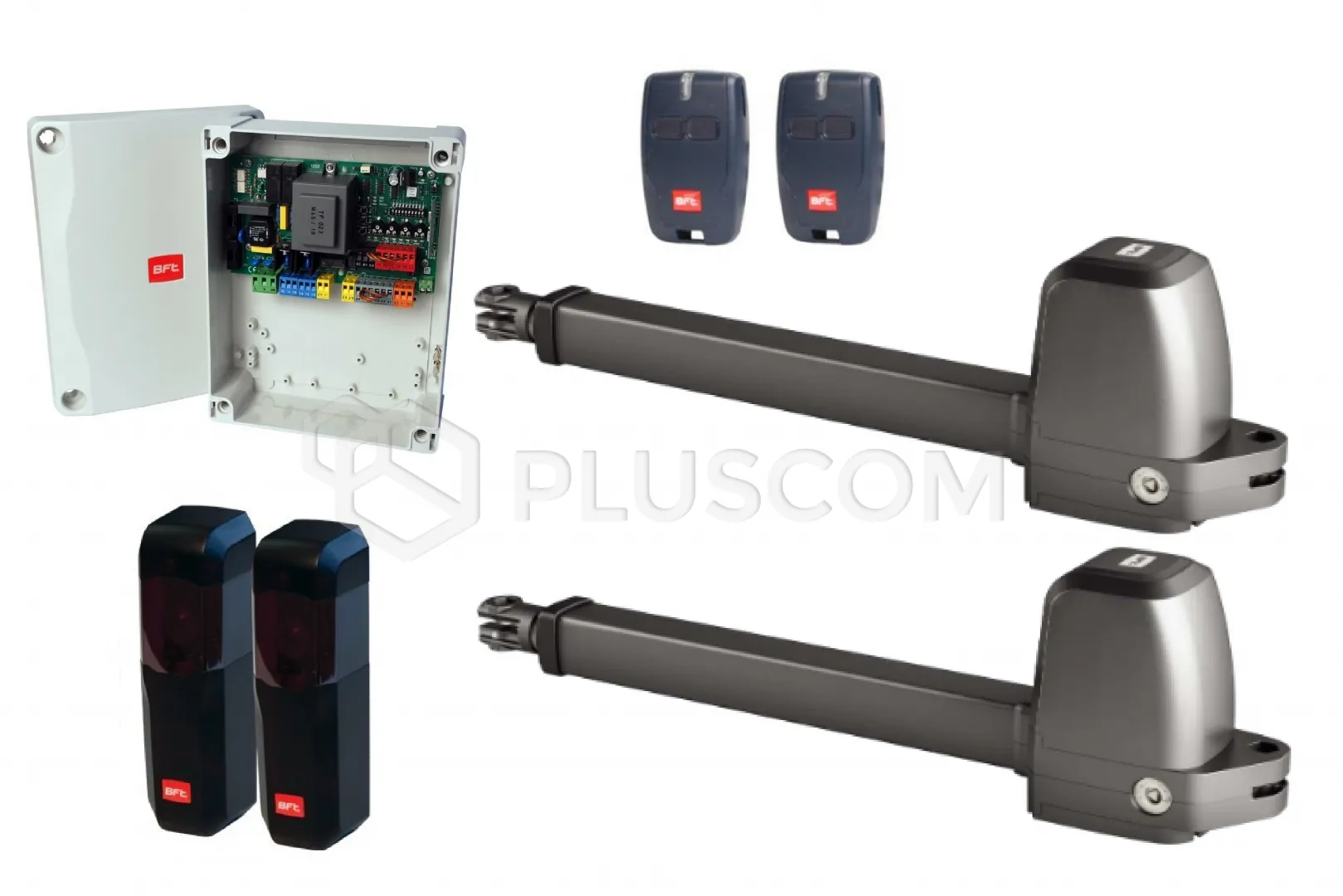

The kit includes:
  • 2 x ATHOS AC A40 actuator
  • ALENA SW2 control unit
  • COMPACTA A20-180 photocell set
  • 2 x MITTO B2 remote control
BFT 2611972 BFT ATHOS AC A40 KIT swing gate kit

BFT 2611972 BFT ATHOS AC A40 KIT swing gate kit

Double-leaf gate automation kit for a 4-meter wing, and what about ATHOS actuators allow you to open a double-leaf gate with a clearance of up to 8 meters.

The actuators are equipped with an electronic torque limiter. It should be controlled through a dedicated ALENA control unit. The actuator is equipped with an obstacle detection system that meets the requirements of the EN12453 and EN 12445 standards. Mechanical stops must be used.

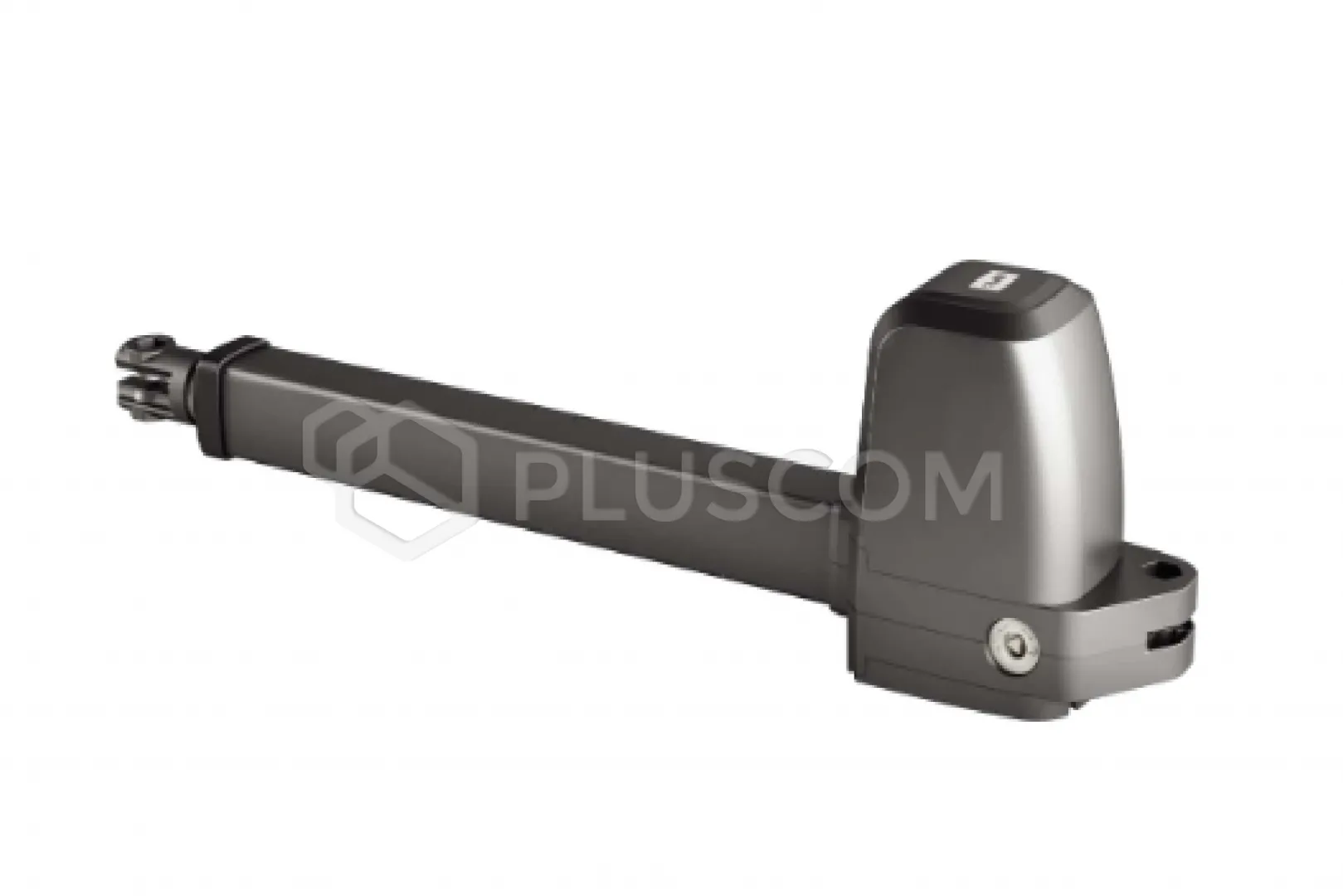

Thanks to their structure consisting of aluminum die-castings and high-quality materials, such as a worm gear and bronze worm wheel, Athos actuators guarantee maximum strength, reliability and durability. The motor is self-locking: emergency opening is always easy thanks to the triangular (patented key) unlocking system. An adjustable electric clutch (voltage regulation) is responsible for safety. The motor is protected by a thermal switch.

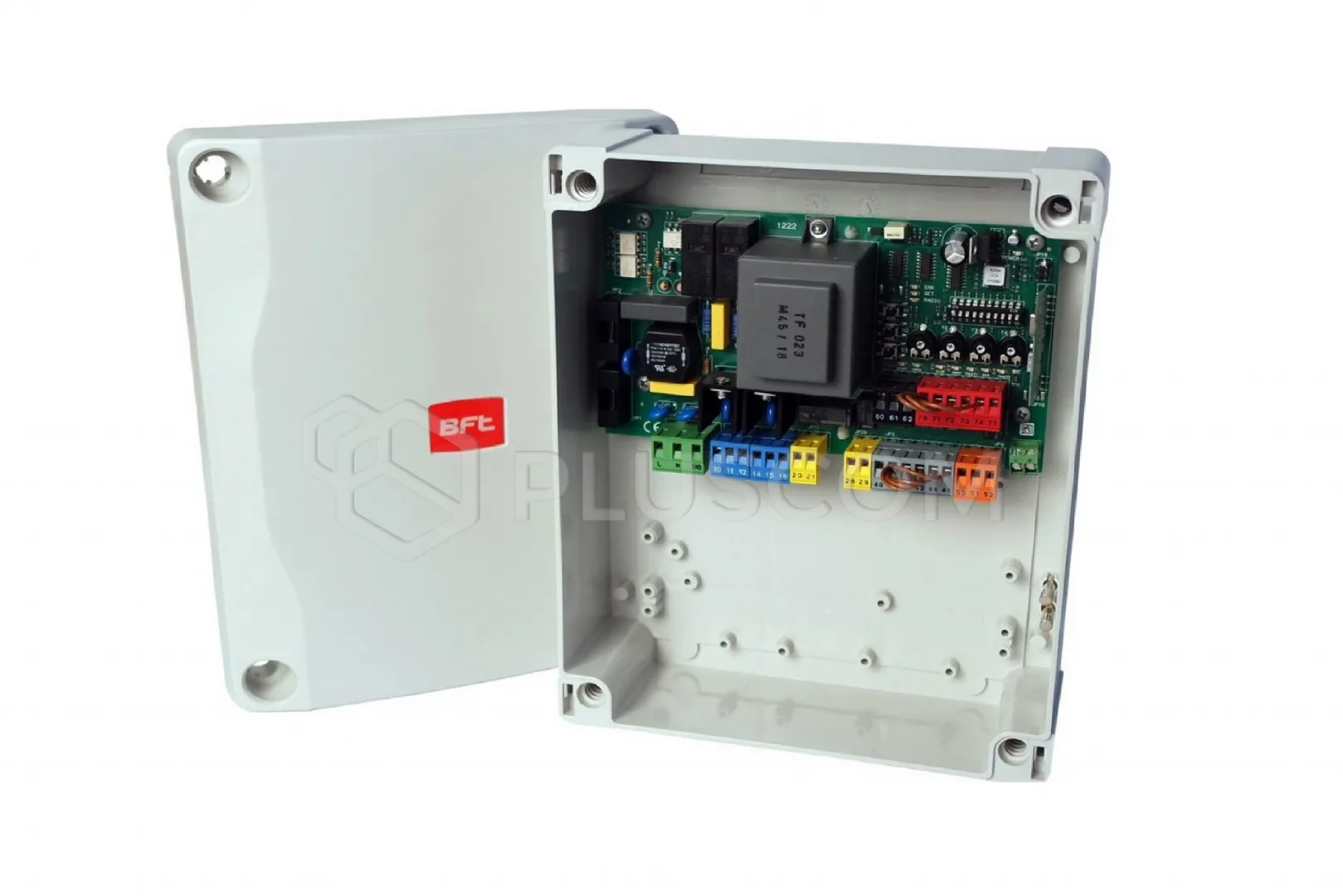

The ALENA SW2 control unit has removable colored and numbered terminal strips, an integrated two-channel radio receiver for 63 remote controls and a radio-controlled gate function.

FEATURES:

  • Compact design: Athos has been designed to save space and allows maximum installation flexibility even in recesses
  • Easy installation: the front and rear supports are aligned with each other, making installation quick and easy
  • Maximum convenience: the motor can be opened in just 14 seconds at 90° (A25 mod.) or 16 seconds (A40 mod.)
  • Strength and solidity: thanks to its solid construction and high-quality materials, such as die-cast aluminum bodies and bronze crown gear, Athos guarantees maximum strength, reliability and longer life

Technical data:

  • Control unit: Alena SW2
  • Power supply: 230V +/- 10% 50Hz
  • Motor: 230V
  • Power consumption: 280W
  • Max. wing length: 4m
  • Max. wing weight: 400kg
  • Usable working stroke: 400 mm
  • Max. opening angle: 110 degrees
  • Opening time: 16 sec.
  • Obstacle detection: YES
  • Obstacle detection type: electronic
  • Limit switches: none
  • Slowdowns: YES, on opening and closing (adjustable)
  • Lock: mechanical
  • Unlocking: triangular key
  • Obstacle reaction: electric clutch
  • Operating temperature: from -20 C to + 55 C
  • Protection class: IP 54
  • Gear lubrication: grease
  • Use mode: 60 cycles per day
  • Actuator weight: 7.3kg
  • Application for posts: brick or metal
