BFT 2611950 Swing gate automation kit PHOBOS BT A40 KIT

978,33 EUR including 23.00% VAT
Product code: #38698
Manufacturer: BFT
  • Max. leaf length: 4m
  • Max. leaf weight: 500kg
  • Engine power supply: 24V
  • Frequency of use: Intensive (80 cycles/24h)
  • Magnetic limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2613836 AMIP Limit Switch Kit

BFT 2611950 Automation kit for swing gates PHOBOS BT A40 KIT

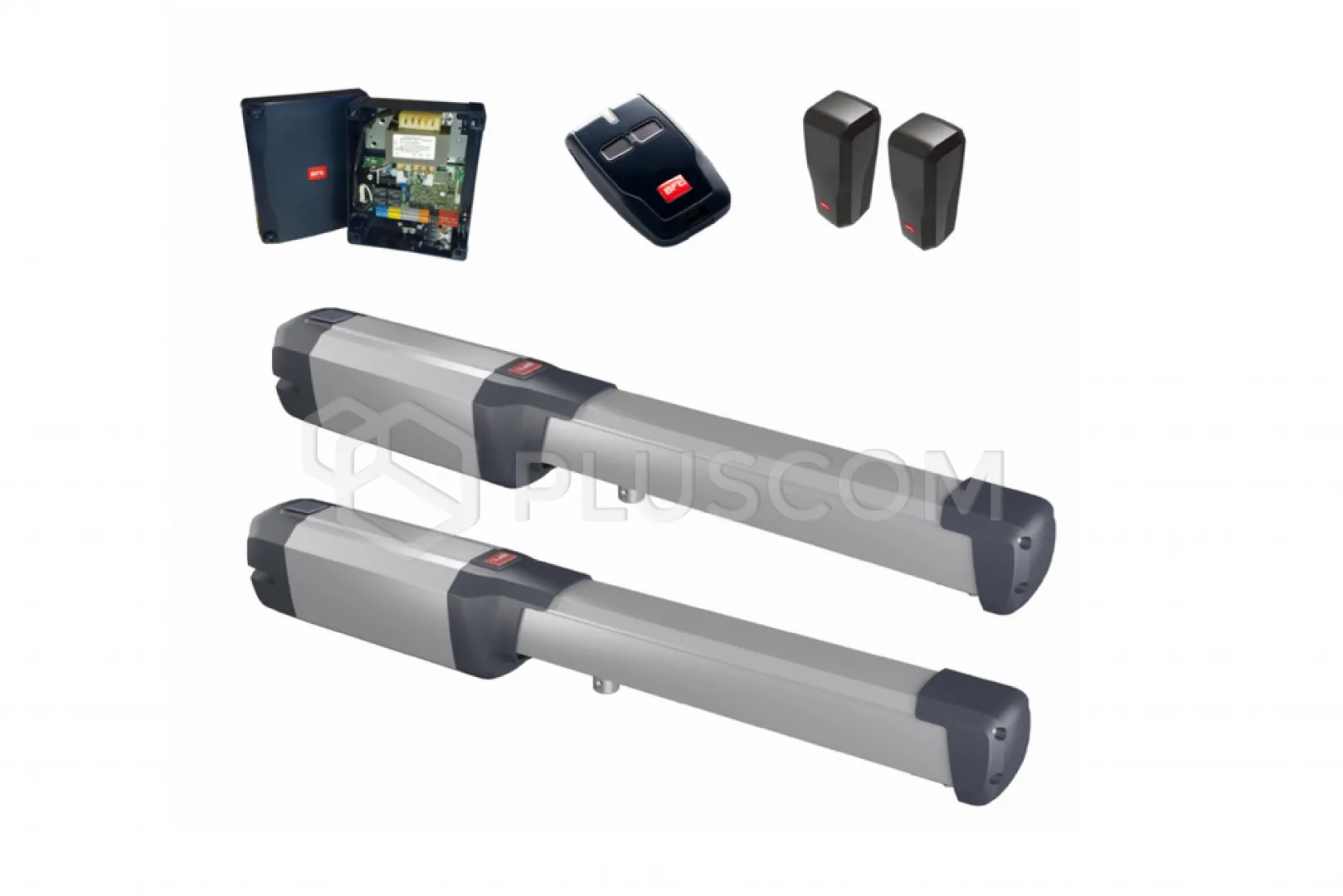

The kit includes:
  • 2 x PHOBOS BT A40 actuator
  • Complete set of photocells COMPACTA A20-180
  • MITTO B4 remote control
BFT 2611950 Swing gate automation kit PHOBOS BT A40 KIT

BFT 2611950 Swing gate automation kit PHOBOS BT A40 KIT
Automation kit for swing gates weighing up to 500kg and with a leaf length of up to 4m. It has a 24V motor. The THALIA LIGHT control unit, rich in functions, has an integrated radio receiver with a dynamically changing code, which allows for storing up to 63 remote controls.

This actuator has magnetic limit switches for opening and closing. Disengagement using a personalized key. Safety is ensured by the amperometric obstacle detection function. Frequency of use up to 80 cycles per day. Innovative solution for mounting to a post holder with a magnetic pin, which both facilitates assembly and improves the aesthetics of the installation (the mounting pin is not visible from the outside).

FEATURES:

  • The actuator has magnetic limit switches for opening and closing
  • Disengagement using a personalized key
  • Safety is ensured by the amperometric obstacle detection function
  • Frequency of use up to 80 cycles per day
  • Mounting to a post holder with a magnetic pin, which facilitates assembly and improves the aesthetics of the installation

Technical data:

  • Supply voltage: 230V ±10% 50 HzBFT PHOBOS BT A40
  • Motor supply voltage: 24V
  • Power consumption: 40 W
  • Max. leaf length: 4 m
  • Max. leaf weight: 500 kg
  • Usable working stroke: 400 mm
  • Max. opening angle: 124°
  • Opening time: 20 s
  • Limit type: magnetic
  • Slowdown: YES
  • Lock: Mechanical
  • Unlock: Personalized key (approx. 40 insert numbers)
  • Obstacle reaction: D-TRUCK
  • Use frequency: Medium intensity
  • Tightness class: IPX4
  • Operating temperature range: from -20°C to +55°C
