BFT 2611949 swing gate automation kit PHOBOS BT A25 KIT

BFT 2611949 automation kit for swing gates PHOBOS BT A25 KIT

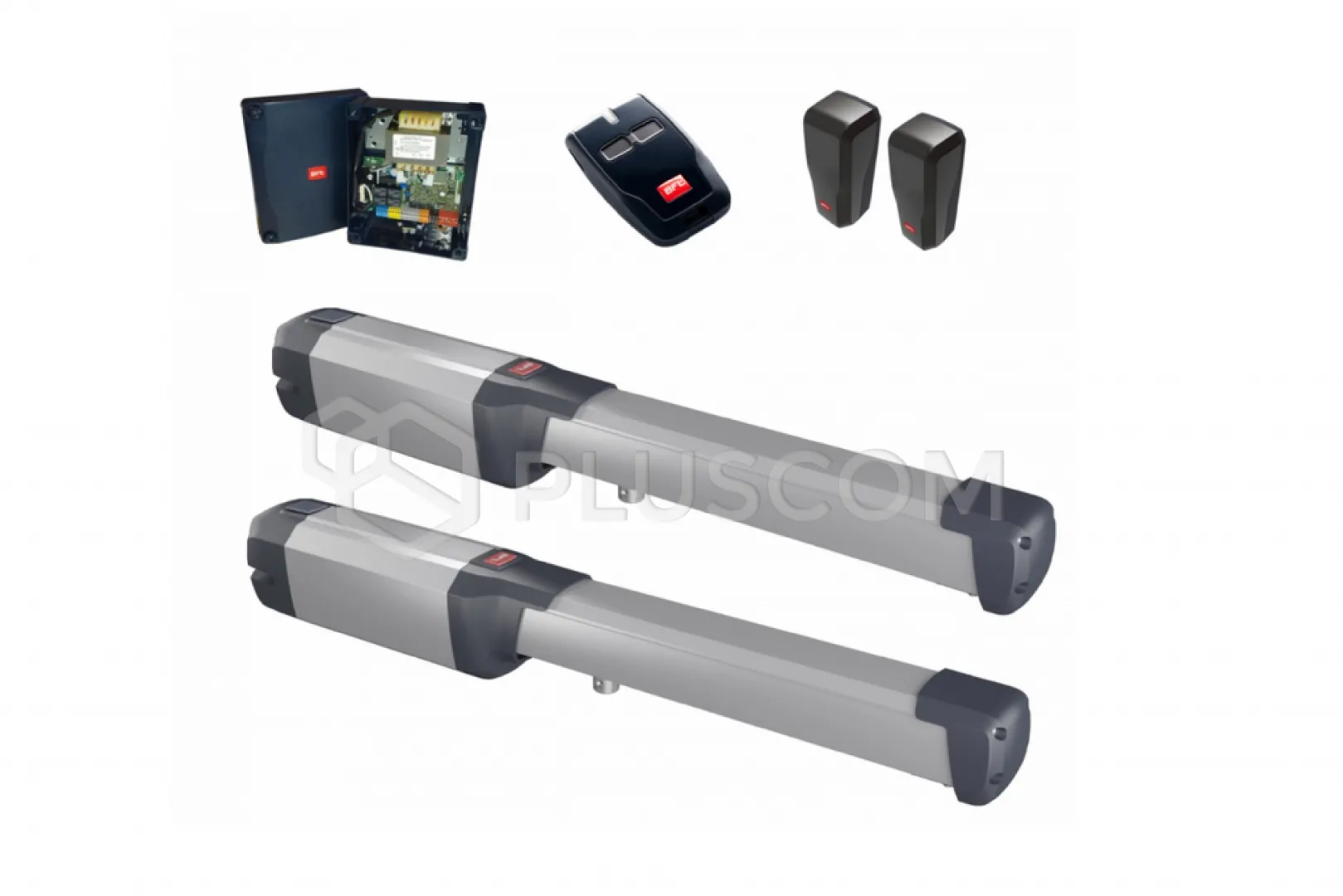

The kit includes: 2 x PHOBOS BT A25 actuator Compacta A20-180 photocell set MITTO B4 remote control

BFT 2611949 swing gate automation kit PHOBOS BT A25 KIT

Automation kit for swing gates weighing up to 400kg and with a leaf length of up to 2.5m. It has a 24V motor. The THALIA LIGHT control unit, rich in functions, has an integrated radio receiver with a dynamically changing code, which allows for storing up to 63 remote controls.

This actuator has magnetic limit switches for opening and closing. Disengagement using a personalized key. Safety is ensured by the amperometric obstacle detection function. Frequency of use up to 80 cycles per day. Innovative solution for mounting to a post holder with a magnetic pin, which both facilitates assembly and improves the aesthetics of the installation (the mounting pin is not visible from the outside).

FEATURES:

• The actuator has magnetic limit switches for opening and closing
• Disengagement using a personalized key
• Safety is ensured by the amperometric obstacle detection function
• Frequency of use up to 80 cycles per day
• Mounting to a post holder with a magnetic pin, which facilitates assembly and improves the aesthetics of the installation

Technical data:

• Supply voltage: 230V ±10% 50 HzBFT PHOBOS BT A25
• Motor supply voltage: 24V
• Power consumption: 40W
• Max. leaf length: 2.5 m
• Max. leaf weight: 400 kg
• Usable working stroke: 290 mm
• Max. opening angle: 116°
• Opening time: 15 s
• Limit type: magnetic
• Slowdown: YES
• Lock: Mechanical
• Unlock: Personalized key (approx. 40 insert numbers)
• Obstacle reaction: D-TRUCK
• Use frequency: Medium intensity
• Tightness class: IPX4
• Operating temperature range: from -20°C to +55°C
