BFT 2611893 Automation kit for swing gates VIRGO SMART BT A 20 KIT

BFT 2611893 Automation kit for swing gates VIRGO SMART BT A 20 KIT

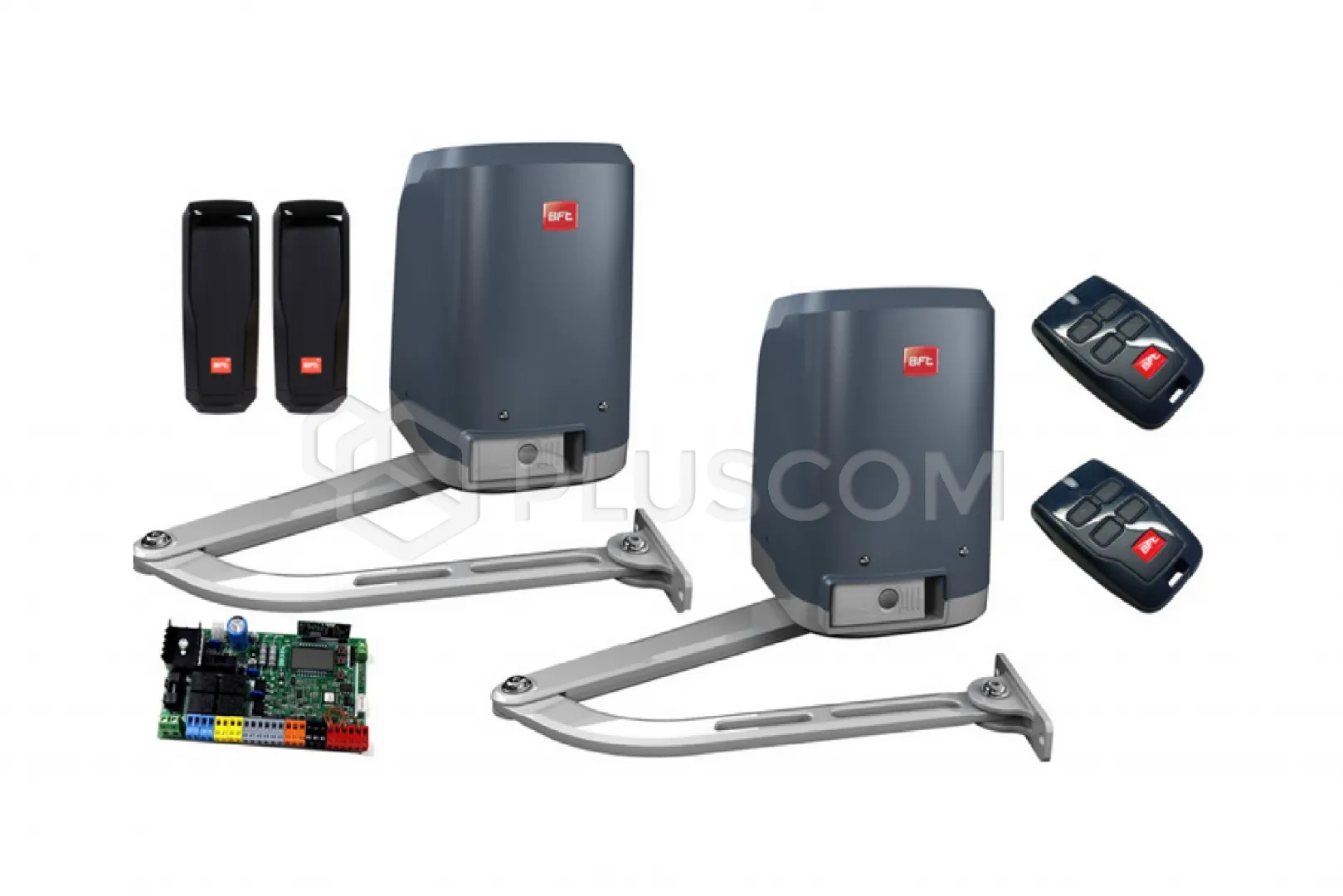

The kit includes: VIRGO SMART BT A 20 actuator with integrated THALIA LIGHT control unit VIRGO SMART BT A 20 SLAVE actuator Complete set of photocells COMPACTA A20-180 2 x MITTO B4 remote control

BFT 2611893 Automation kit for swing gates VIRGO SMART BT A 20 KIT

BFT VIRGO SMART BT A 20 KIT automation kit for swing gates with a leaf length of up to 2m and a weight of up to 200kg, built-in control unit.

Actuators for residential swing gates weighing up to 200kg with a leaf length of up to 2m. They have motors powered by 24V. The integrated THALIA LIGHT control unit, rich in functions, has an integrated radio receiver with a dynamically changing code, which allows you to remember up to 63 remote controls.

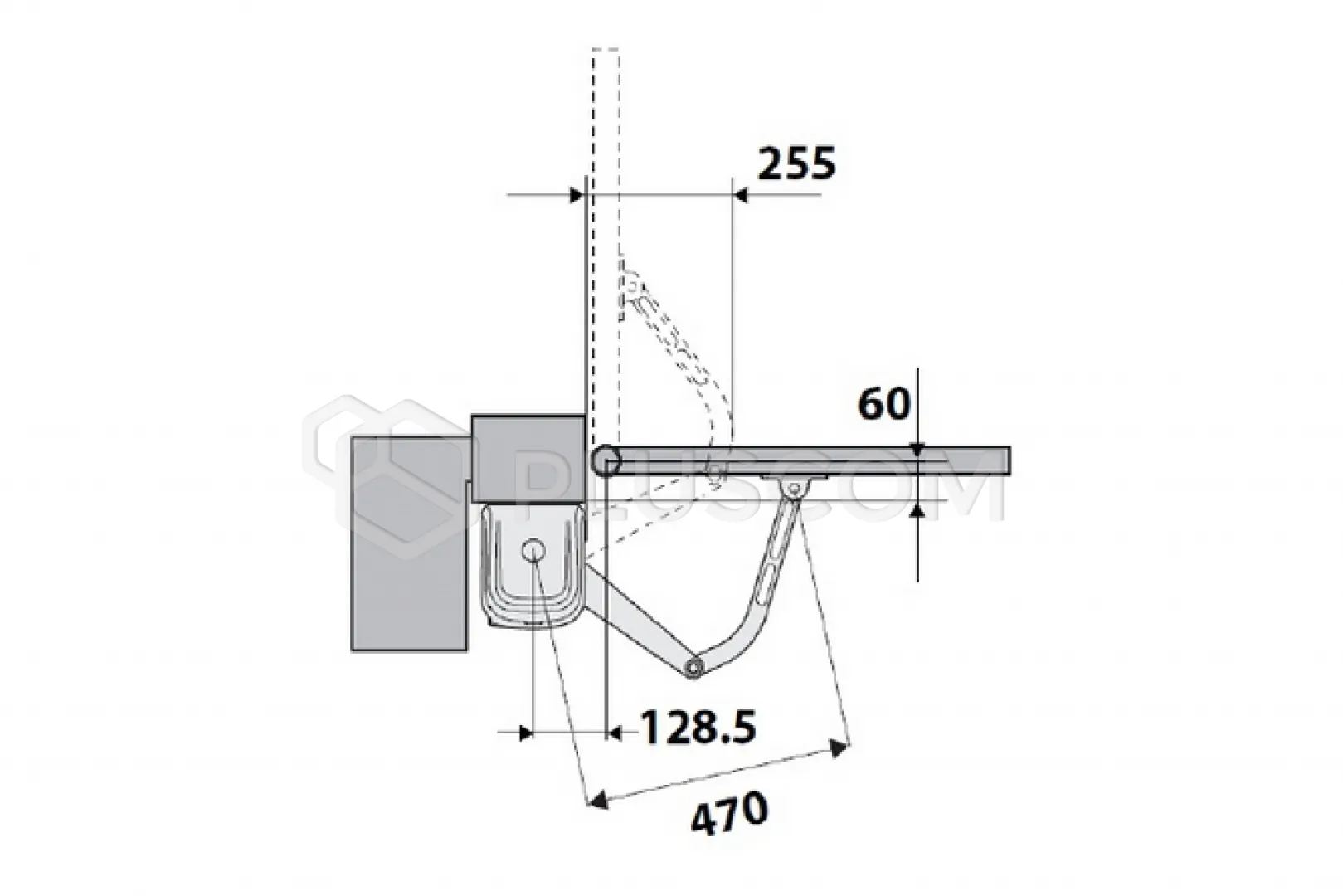

Ideal for various installation solutions (opening inwards and outwards; sliding arm), for wide posts. Unlocking with a personalized key.

FEATURES:

• Integrated THALIA LIGHT control unit
• Limit switches (opening, closing) and mechanical stops (1 pc. per actuator)
• Ideal for various installation solutions (opening inwards and outwards)
• For wide posts
• Unlocking with a personalized key
• 3-wire installation possible (TFS module optional)

Technical data:

• Control unit: built-in THALIA LIGHT
• Max. gate wing weight: 200 kg
• Power supply: 230V +/- 10% 50Hz
• Motor: 24V
• Power consumption: 110W
• Max. wing length: 2 m.
• Max. opening angle: 120 degrees
• Opening time: 14 sec.
• Obstacle detection: YES
• Limit switches: electromechanical
• Slowdown: YES
• Lock: mechanical
• Unlock: personalized key
• Obstacle response: D-Track
• Operating temperature: from -20 C to + 55 C
• Protection class: IP 44
• Use mode: 60 cycles per day
• Post application: wide
