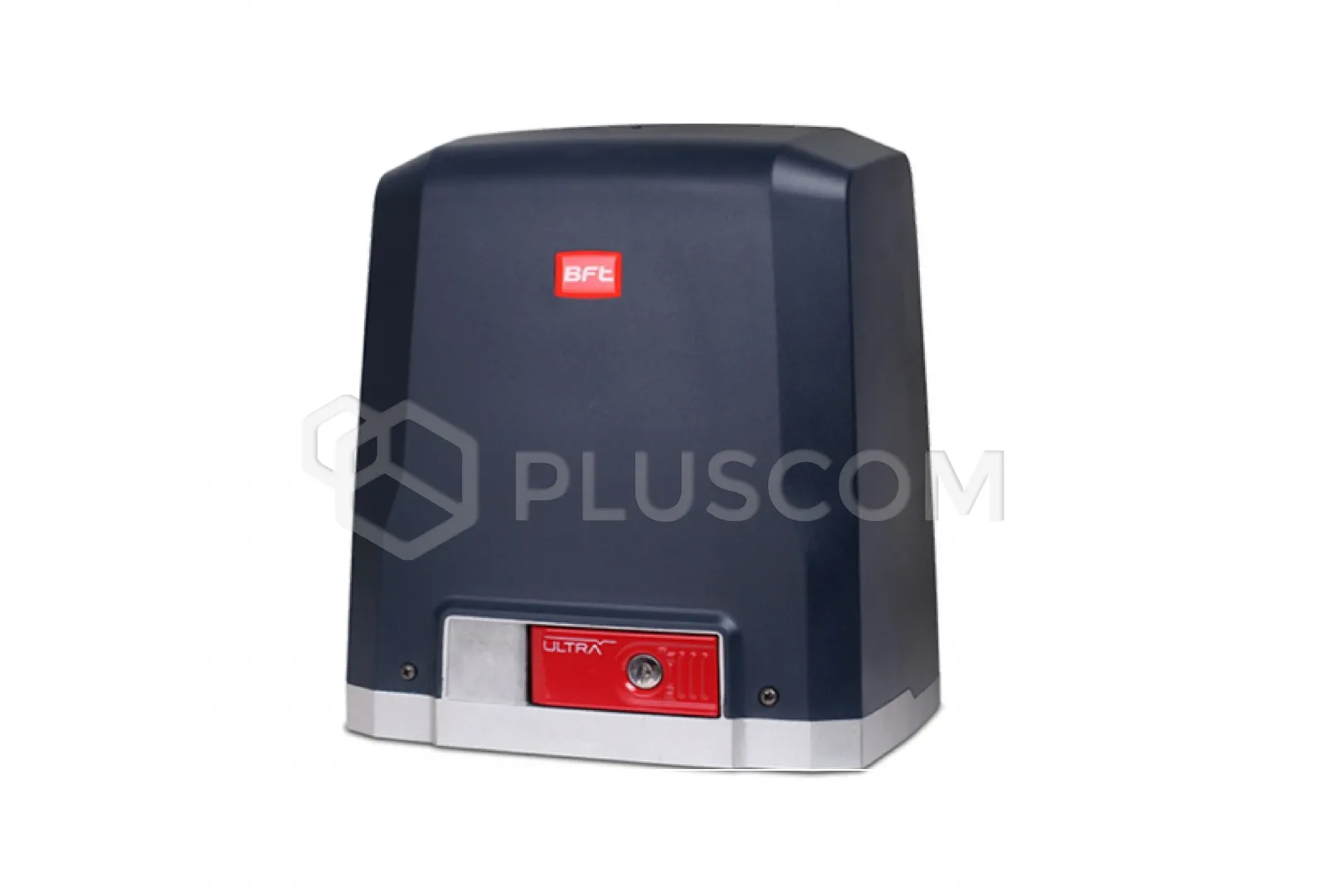

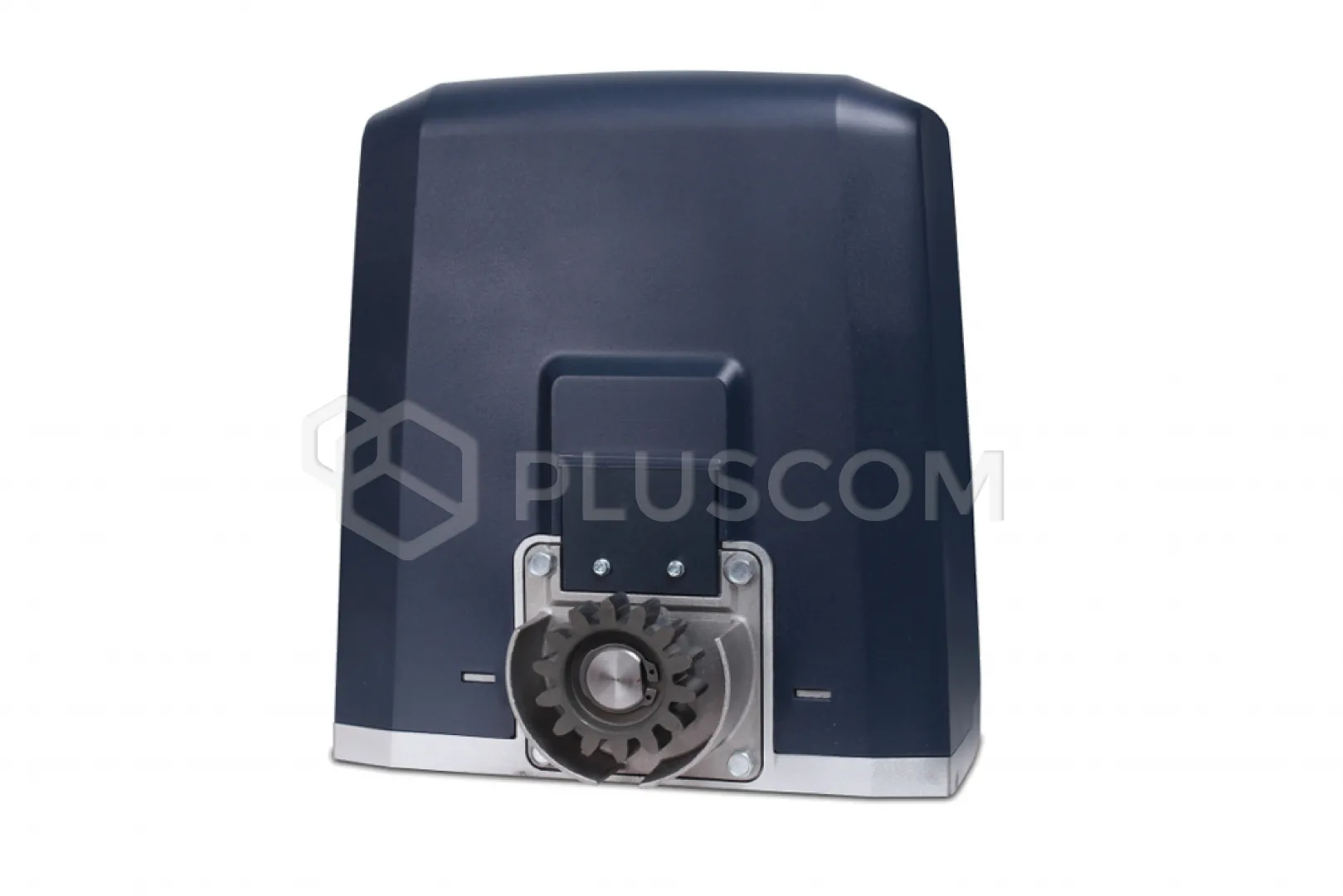

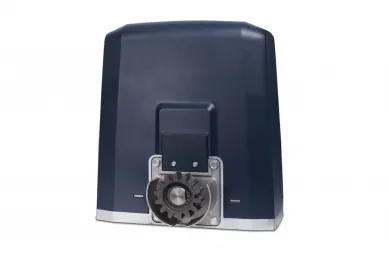

BFT 2611837 Sliding gate automation kit DEIMOS ULTRA BT A 400 KIT

BFT 2611837 Automation kit for sliding gate DEIMOS ULTRA BT A 400 KIT

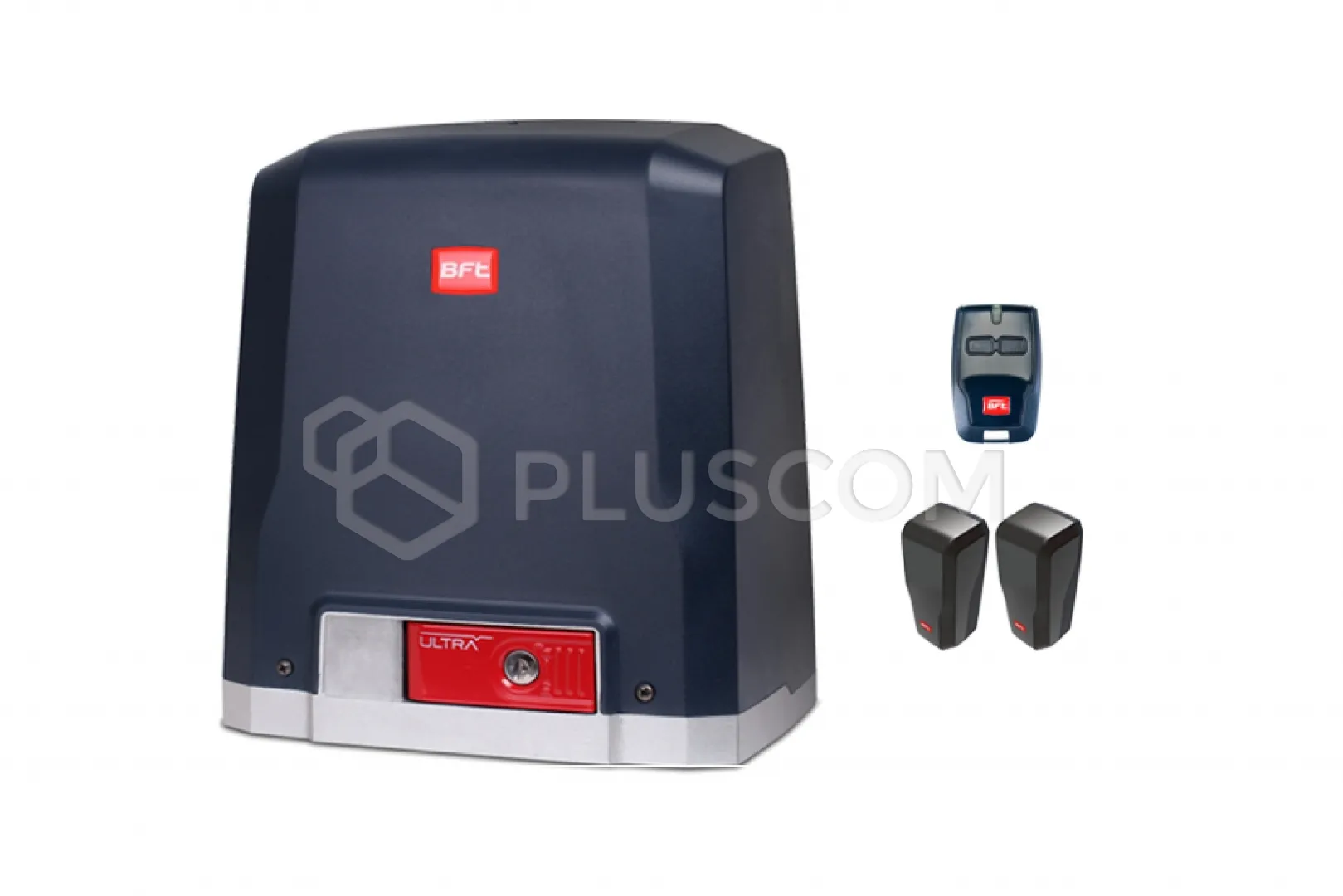

The kit includes: DEIMOS ULTRA BT A 400 actuator with built-in MERAK control unit CELLULA 130 photocell set MITTO B2 remote control

BFT 2611837 Sliding gate automation kit DEIMOS ULTRA BT A 400 KIT

Automation kit for residential sliding gates weighing up to 400 kg. It has a 24V powered motor and a built-in MERAK control unit. Magnetic limit switches. The control unit is programmed using functions on the display. The amperometric obstacle detection function, soft start and slowdown are just some of the attributes of DEIMOS ULTRA BT drives.
The control unit has the U-Link protocol, thanks to which it is possible to manage the drive via the U-CONTROL application (free application on the phone). Unlocking using a lever with a personalized key (approx. 40 numbers of inserts) provides additional security against intrusion into the property.

Technical data:

• Supply voltage: 230V ±10% 50 Hz
• Motor supply voltage: 24 V
• Power consumption: 50 W
• Max. gate weight: 400kg
• Opening time: 12m/min
• Type of limit switches: Magnetic
• Gear module: 4 (Z14)
• Slowdowns: Yes (adjustable)
• Lock: Mechanical
• Unlocking: Personalized key (approx. 40 insert numbers)
• Impact response: D-Track
• Use frequency: Intensive (80 cycles/24h)
• Tightness class: IP24
• Operating temperature range: from -20°C to +55°C
