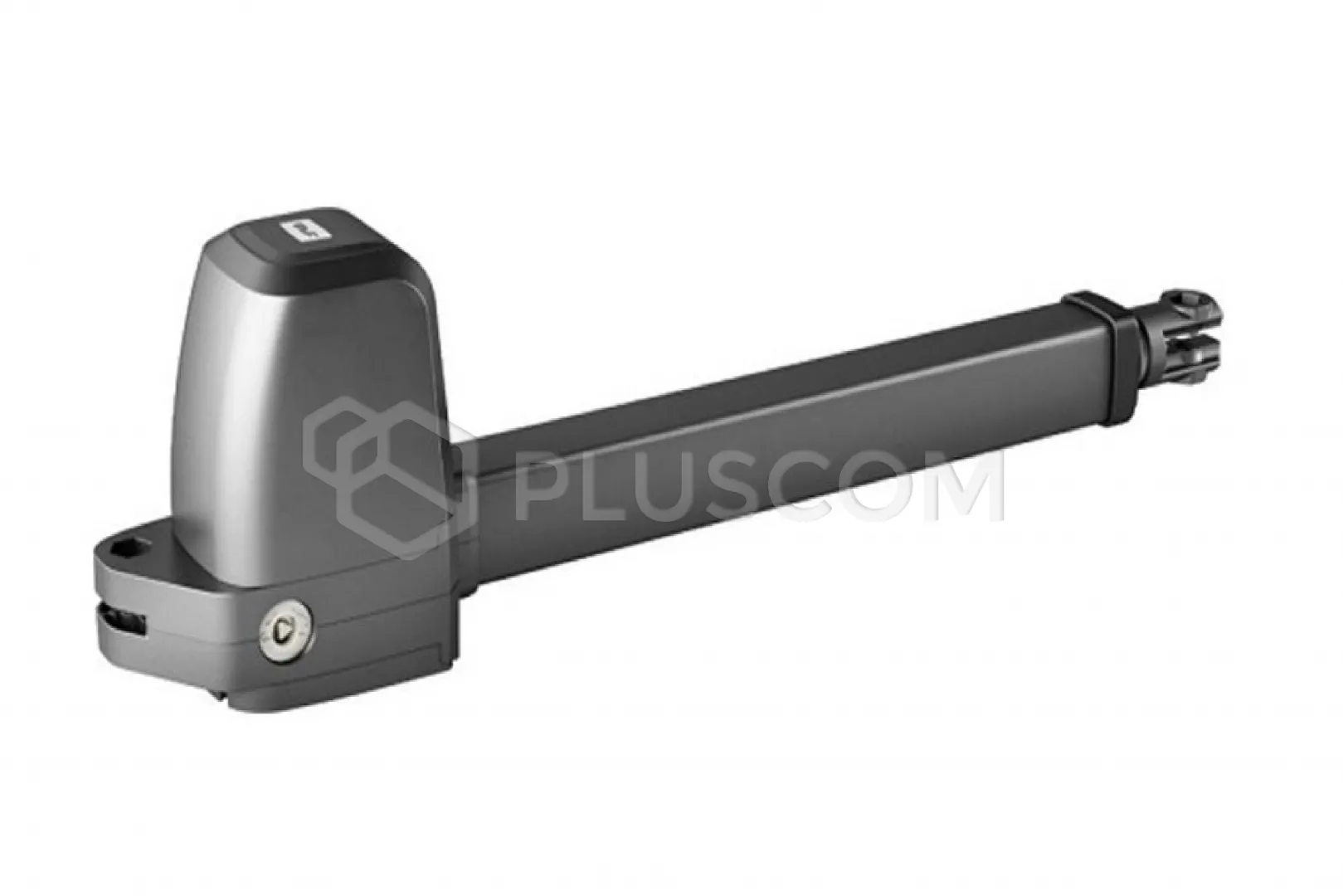

BFT 2611769 Left Actuator for swing gates ATHOS AC A40

358,08 EUR including 23.00% VAT
Product code: #38681
Manufacturer: BFT
  • Max. leaf length: 4m
  • Max. leaf weight: 400kg
  • Engine power supply: 230V
  • Frequency of use: Medium intensity
  • The use of mechanical bumpers is required
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2611769 Left ATHOS AC A40 swing gate actuator


BFT ATHOS AC A40 Left swing gate actuator

Self-locking electro-mechanical 230 V actuator for swing gates weighing up to 400 kg and 4 m long.

In the case of wings not exceeding 2 m long, the actuator maintains the lock when closed and opened without the need to use an electric lock. The actuator is equipped with an electronic torque limiter, it should be controlled via a dedicated ALENA control unit.

The actuator is equipped with an obstacle detection system that meets the requirements of EN12453 and EN 12445. The use of mechanical bumpers is required.

FEATURES:

  • Compact design: Athos has been designed to save space and allows maximum installation flexibility even in recesses
  • Easy installation: the front and rear brackets are aligned with each other, making installation quick and easy
  • Maximum convenience: the motor can be opened in just 14 seconds at 90° (mod. A25) or 16 seconds (mod. A40)
  • Strong and solid: thanks to its solid construction and high-quality materials, such as die-cast aluminum bodies and bronze crown gear, Athos guarantees maximum strength, reliability and longer life
Self-locking electromechanical operator for swing gates with a leaf length of up to 4 m and a weight of up to 400 kg. Thanks to its structure made of die-cast aluminium and high-quality materials such as worm gear and bronze worm wheel, Athos actuators guarantee maximum strength, reliability and durability. Quick to install. Athos allows for maximum comfort, thanks to high opening and closing speeds combined with smooth operation.

Technical data:

  • Power supply voltage: 230V ±10% 50 Hz
  • Motor supply voltage: 230 V
  • Power consumption: 280 W
  • Max. leaf length: 4 m
  • Max. leaf weight: 400 kg
  • Usable working stroke: 400 mm
  • Max. opening angle: 110 °
  • Opening time: 16 s
  • Limit type: working time, mechanical stops required
  • Slowdown: YES, on opening and closing (adjustable)
  • Lock: Mechanical
  • Unlocking: Triangular key
  • Obstacle reaction: Electric clutch
  • Use frequency: Medium low
  • Tightness class: IP 54
  • Operating temperature range: from -20°C to +55°C
Download
User's Guide 3.32 MB
