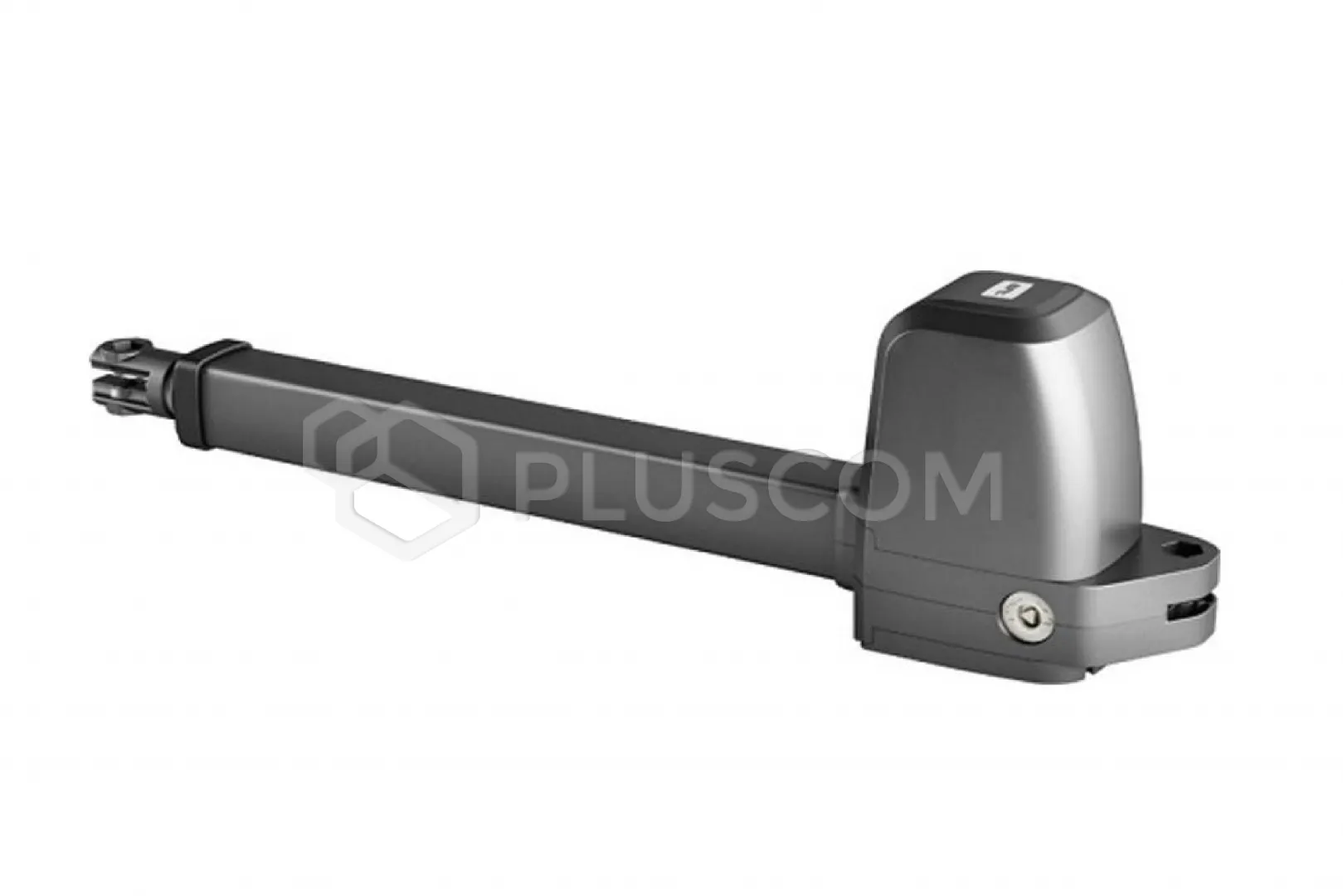

BFT 2611765 Right Actuator for swing gates ATHOS AC A25

BFT 2611765 Right ATHOS AC A25 swing gate actuator

BFT ATHOS AC A25 Right swing gate actuator

Self-locking electro-mechanical 230 V actuator for swing gates weighing up to 700 kg and 2.5 m long

In the case of wings not exceeding 2 m long, the actuator maintains the lock when closed and opened without the need to use an electric lock. The actuator is equipped with an electronic torque limiter, it should be controlled via a dedicated ALENA control unit.

The actuator is equipped with an obstacle detection system that meets the requirements of EN12453 and EN 12445. The use of mechanical bumpers is required.

FEATURES:

• Compact design: Athos has been designed to save space and allows maximum installation flexibility even in recesses
• Easy installation: the front and rear brackets are aligned with each other, making installation quick and easy
• Maximum convenience: the motor can be opened in just 14 seconds at 90° (mod. A25) or 16 seconds (mod. A40)
• Strength and solidity: thanks to its solid construction and high-quality materials, such as die-cast aluminium bodies and bronze crown gear, Athos guarantees maximum strength, reliability and longer life

Self-locking electromechanical operator for swing gates with a leaf length of up to 2.5 m and a weight of up to 350 kg. Thanks to its structure made of die-cast aluminium and high-quality materials such as the worm gear and bronze worm wheel, Athos actuators guarantee maximum strength, reliability and durability. Quick to install. Athos allows maximum comfort, thanks to high opening and closing speeds combined with smooth operation.

Technical data:

• Mechanical lock
• Unlocking Triangular key
• Impact response Electronic clutch
• Use frequency Semi-intensive
• Protection class IP54
• ALENA SW2 control unit
• Working environment (max.) -20 ÷ 55 °C
• Board power supply 230 V
• Communication no
• Motor voltage 230 V
• Power consumption 280 W
• Max. door/gate leaf width 4 m
• Max. door/gate leaf weight 400 kg
• Usable piston stroke 400 mm
• Maximum angle 110 °
• Maneuver time 16 s
• Limit switch type working time
• Slowing down YES
