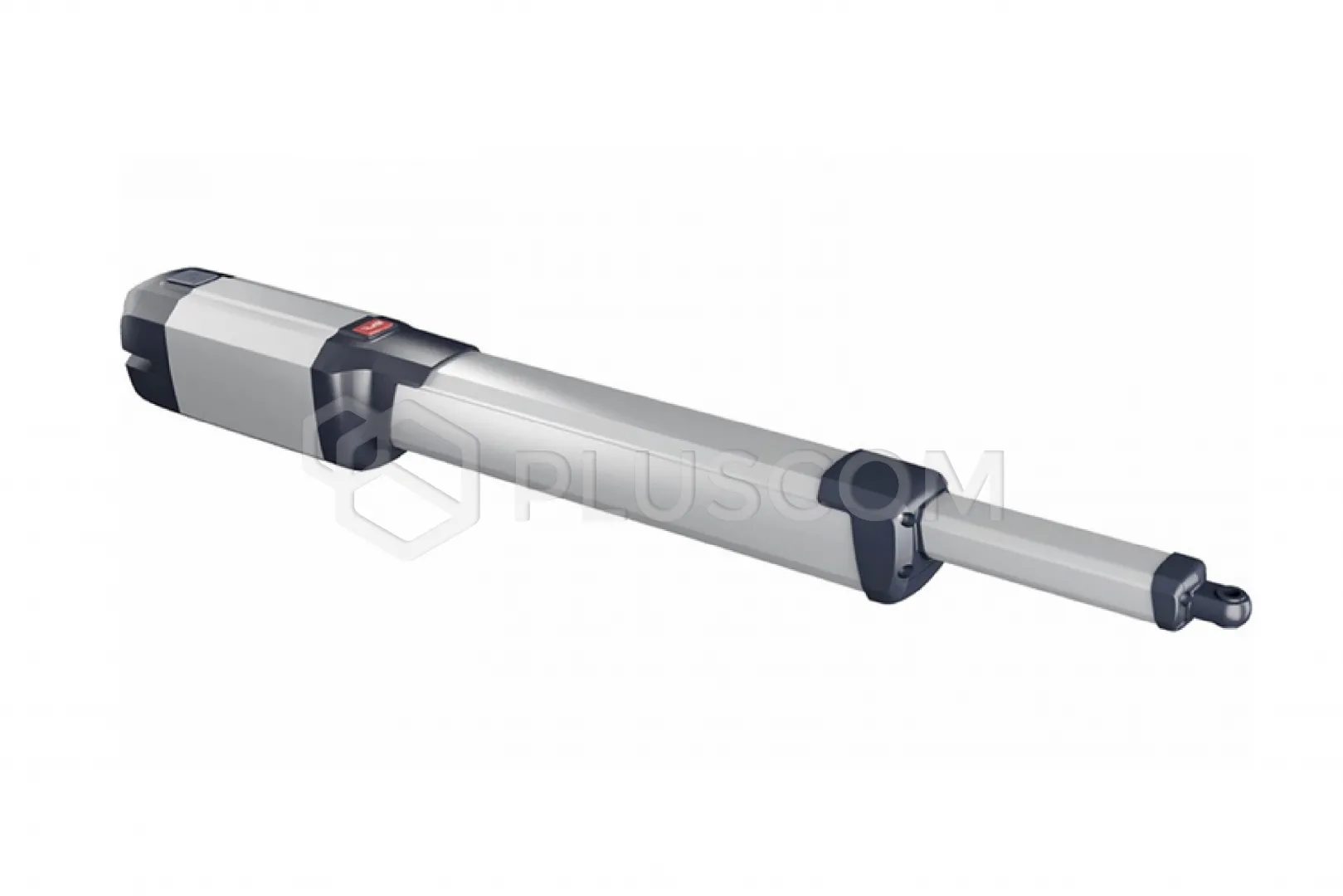

BFT 2611759 Self-locking tubular actuator KUSTOS BT A25

BFT 2611759 Self-locking tubular actuator KUSTOS BT A25

Self-locking electromechanical actuator 24V for swing gates weighing up to 400kg and 2.5m long. Quick and practical installation: the new KUSTOS BT A devices have been designed to enable quick and easy installation thanks to numerous solutions such as magnetic limit switches and a magnetic wedge blocking the handle. The completely covered worm screw allows you to enjoy the high operating culture of the actuators for longer.

FEATURES:

• The actuator has magnetic limit switches for opening and closing
• Release by means of a personalised key
• Safety is ensured by the amperometric obstacle detection function
• Frequency of use up to 80 cycles per day

Protected worm screw: all the actuators in the KUSTOS BT A range are telescopic actuators with a completely protected worm screw. This guarantees maximum protection against external agents (water, dust, dirt, etc.) and total protection for people, preventing access to moving parts.

Technical data:

• Protection class IP44
• Control unit THALIA
• Operating environment (max.) -20 ÷ 55 °C
• Board power supply 230 V
• Communication no
• Motor voltage 24 V
• Power consumption 40 W
• Max. door/gate leaf width 2.5 m
• Max. door/gate leaf weight 400 kg
• Usable piston stroke 295 mm
• Maximum angle 118 °
• Manoeuvring time (90°, without deceleration, with maximum leaf and maximum weight) Approx. 20 s
• Limit switch type Magnetic
• Slowdown YES
• Mechanical lock
• Unlocking Personalized key
• Impact response D-Track
• Use frequency intensive
