BFT 2611710 Hydraulic drive for industrial folding doors FORB R

1326,12 EUR including 23.00% VAT
Product code: #38672
Manufacturer: BFT
  • Max. panel length: 1.2m (two panels)
  • Max. weight of one panel: 240kg
  • Power supply: 230V
  • For very intensive work
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

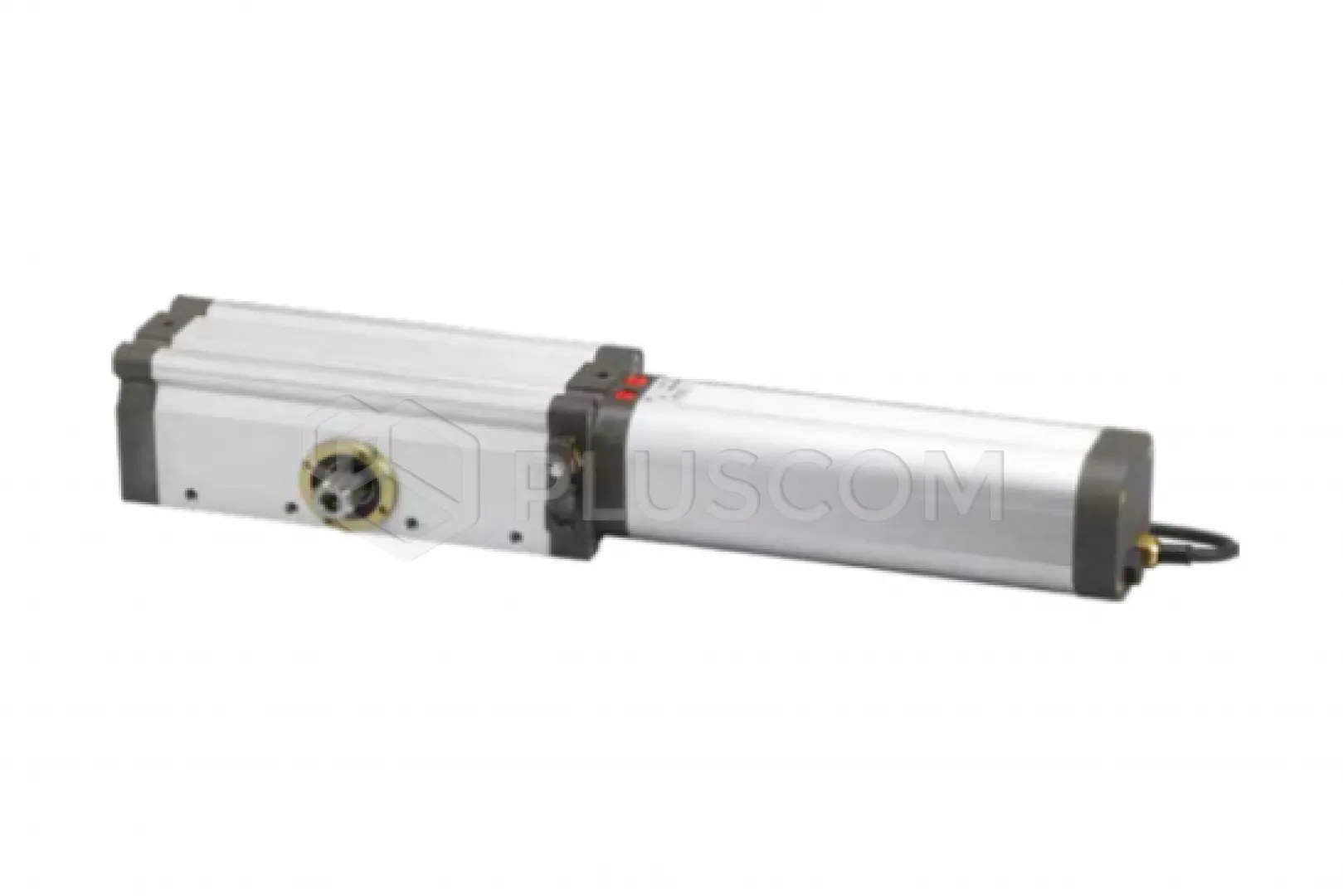

BFT 2611710 Hydraulic drive for industrial folding doors FORB R


Hydraulic drive for very intensive use for industrial folding doors, maximum two panels per leaf.
Designed for the harshest conditions of use, it combines the strength and typical reliability of hydraulic drives.
BY-PASS valves allow precise torque adjustment during opening and closing.

FEATURES:

  • Hydraulic release guarantees quiet and smooth movement even for the largest gates
  • The adjustment screw also allows the release intensity to be adjusted to any requirements
  • Bypass valves allow precise adjustment of the torque during opening and closing in a separate and independent way
  • Durable, anodized aluminum housing

Technical data:

  • Protection class - IP57
  • Operating environment (max.) - -15 ÷ 60 °C
  • Communication - no
  • Control unit - RIGEL 6
  • Rated voltage - 230 V
  • Power consumption - 250 W
  • Maximum surface area - 2.4 m2
  • Gate surface area - 2.4 m2
  • Slowing down - YES
  • Hydraulic lock
  • Unlocking - Lever or steel cable
  • Impact response - Crush protection provided by 2 bypass valves
  • Use frequency - very intensive
Download
User's Guide 7.25 MB
