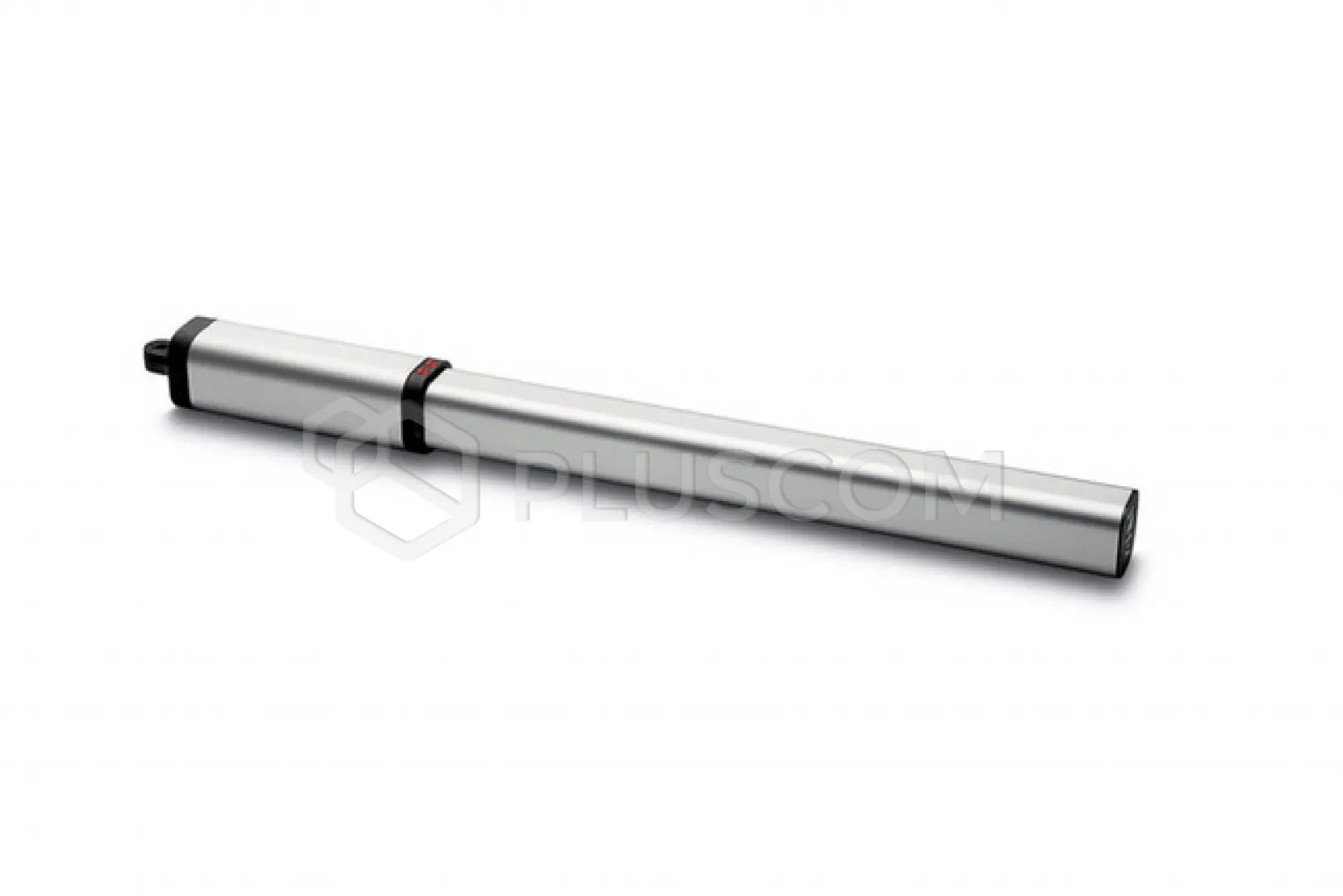

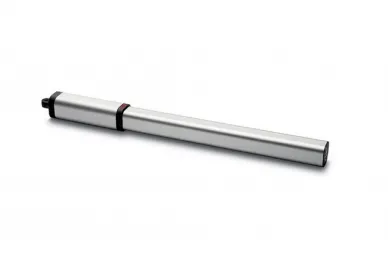

BFT 2611699 Hydraulic swing gate operator LUX G

BFT 2611699 Hydraulic drive for swing gates LUX G

BFT LUX G is an advanced, hydraulic drive designed to automate swing gates. This model is characterized by a solid construction and high efficiency, making it an ideal solution for both single-family homes and industrial facilities.

FEATURES:

• Non-self-locking hydraulic actuator
• Hydraulic force regulation and obstacle detection
• Frequency of use up to 500 cycles per day
• Does not have limit switches, bumper assembly required
• Has a hydraulic lock when closing or opening and closing
• With a gate length of up to 3.0 m, it does not require the use of an electric lock

Durable construction made of anodized aluminum.

Bypass valves in 230 V versions enable precise adjustment of the torque during opening and closing in a separate and independent manner.

Slowing down during closing (version R) guarantees quiet and smooth movement even with the largest sashes. The adjusting screw also allows the intensity of the slowing down to be adjusted to the requirements of any situation.

Technical data:

• Type of limit switch working time
• Slowing down no
• Lock Electric lock
• Unlocking With change of direction/position
• Impact reaction Hydraulic clutch
• Use frequency very intensive
• Protection class IP57
• Working environment (max.) -10 ÷ 60 °C
• Control unit RIGEL 6
• Communication no
• Motor voltage 230 V
• Power consumption 250 W
• Max. door/gate leaf width 5 m
• Max. door/gate leaf weight 800 kg
• Usable piston stroke 390 mm
• Maximum angle 130 °
• Maneuvering time 48 s
