BFT 2611693 Hydraulic swing gate operator LUX

660,73 EUR including 23.00% VAT
Product code: #38670
Manufacturer: BFT
  • Max. leaf length: 2m
  • Max. leaf weight: 300kg
  • Engine power supply: 230V
  • For very intensive use
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

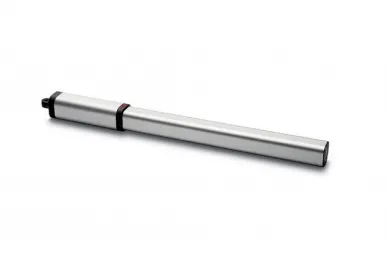

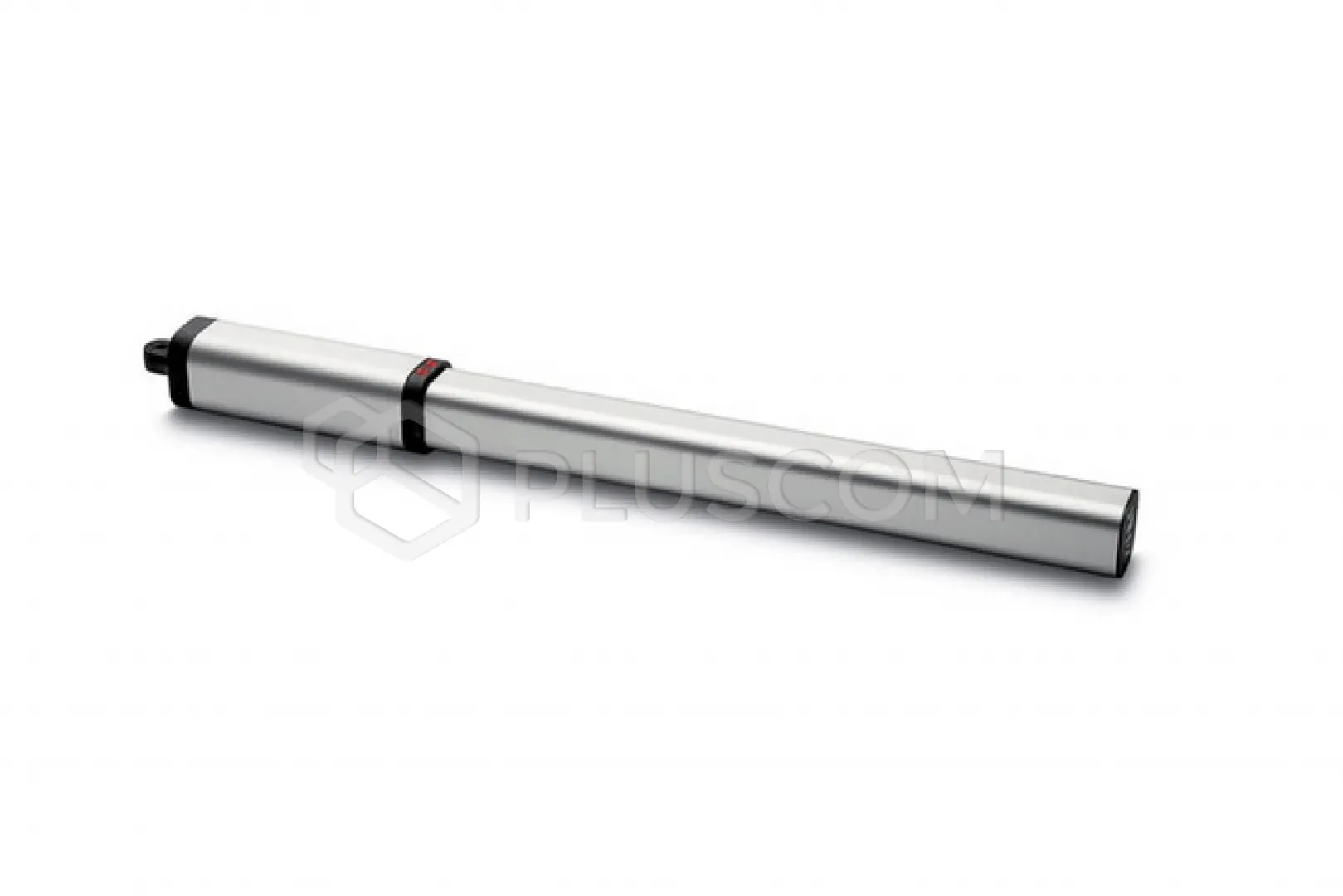

BFT 2611693 Hydraulic drive for swing gates LUX


BFT 2611693 LUX is an advanced hydraulic drive designed to automate swing gates. This product, created by the renowned BFT company, is characterized by high quality of workmanship and operational reliability.

The structure is made entirely of aluminum, anodized with high strength.

Bypass valves in 230 V versions allow for precise torque setting separately and independently of each other when opening and closing.

Slowing down during closing (R versions) guarantees quiet, smooth movements even for the largest gates. In addition, the adjustment screw allows you to adjust the intensity of the slowdown to the needs of each situation.

Technical data:

  • RIGEL 6 control unit
  • Motor voltage 230 V
  • Power consumption 250 W
  • Maximum door/gate leaf width 2 m
  • Maximum door/gate leaf weight 300 kg
  • Usable rod stroke 270 mm
  • Maximum angle 123 °
  • Cycle time 17 s
  • Limit switch operating time type
  • Release no
  • Lock Solenoid valve Lock
  • Release Reversible
  • Impact reaction Hydraulic clutch
  • Use frequency very intensive
  • IP57 protection class
  • Environmental conditions -10 ÷ 60 °C
  • No connection
Download
User manual 2.18 MB
