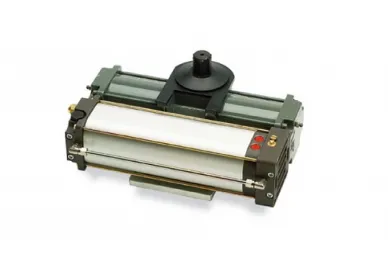

BFT 2611681 Underground hydraulic actuator, non-self-locking (right) for swing gates SUB EL DX

BFT 2611681 Underground non-self-locking hydraulic actuator (right) for swing gates SUB EL DX

BFT 2611681 is an advanced, underground hydraulic actuator designed to automate swing gates. The SUB EL DX model has been designed to ensure reliable and smooth operation even in the most demanding conditions.

FEATURES:

• Hydraulic actuator for residential swing gates and for intensive use
• Designed for gates with a leaf weight of up to 800 kg
• Hydraulic force regulation and obstacle detection
• Frequency of use up to 500 cycles per day

The design consisting of a single block allows for aesthetic, exceptionally reliable installations despite the passage of time.

Slowing down during closing guarantees quiet and smooth movement even with the largest doors. The adjusting screw also allows the slowing down intensity to be adjusted to the requirements of any situation.

Control unit with programming display and new, simplified scenario-based programming.

Technical data:

• Motor voltage 230 V
• Power consumption 250 W
• Max. door/gate leaf width 3.5 m
• Max. door/gate leaf weight 800 kg
• Maximum angle 130 °
• Manoeuvre time 33 s
• Limit switch type working time
• Slowing down no
• Lock Electric lock
• Unlocking With change of direction/position
• Impact reaction Hydraulic clutch
• Use frequency very intensive
• Protection class IP67
• Working environment (max.) -10 ÷ 60 °C
• Control unit RIGEL 6
• Connectivity no
• Board power supply 230 V
