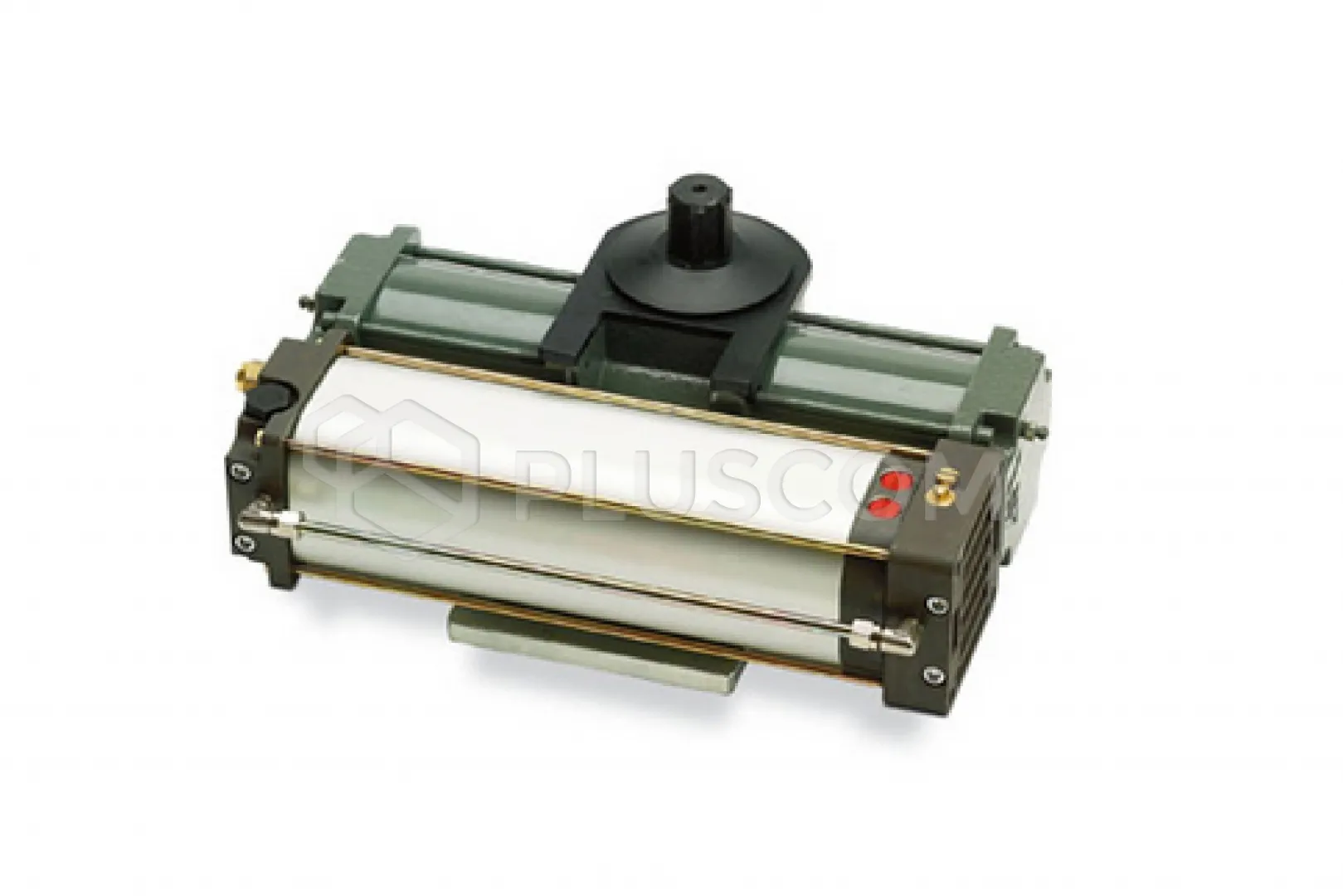

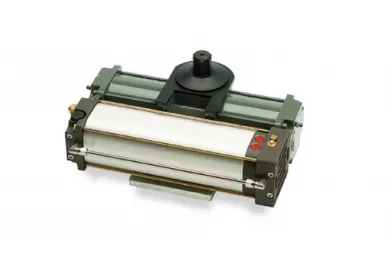

BFT 2611674 Underground self-locking hydraulic actuator (left) for SUB R SX swing gates

BFT 2611674 Underground self-locking hydraulic actuator (left) for SUB R SX swing gates

BFT 2611674 is an advanced, underground hydraulic actuator, designed specifically for the automation of left gate wings. Its construction is solid and durable, which guarantees long-term and trouble-free operation.

FEATURES:

• Hydraulic actuator for residential swing gates and for intensive use
• Designed for gates with a leaf weight of up to 800 kg
• Hydraulic force regulation and obstacle detection
• Frequency of use up to 500 cycles per day

The design consisting of a single block allows for aesthetic, exceptionally reliable installations despite the passage of time.

Slowing down during closing guarantees quiet and smooth movement even for the largest door leafs. The adjusting screw also allows the slowing down intensity to be adjusted to the requirements of any situation.

Control unit with programming display and new, simplified scenario-based programming.

Technical data:

• Impact reaction Hydraulic clutch
• Frequency of use very intensive
• IP67 protection class
• Operating environment (max.) -10 ÷ 60 °C
• RIGEL 6 control unit
• No communication
• Board power supply 230 V
• Motor voltage 230 V
• Power consumption 250 W
• Max. door/gate wing width 1.8 m
• Max. door/gate wing weight 800 kg
• Maximum angle 130 °
• Maneuver time 14 + slow down s
• Type of limit switch working time
• Slowdown YES
• Lock Hydraulic opening/closing
• Unlocking Triangular key
