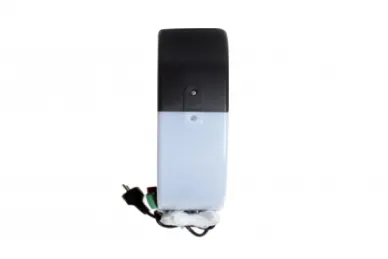

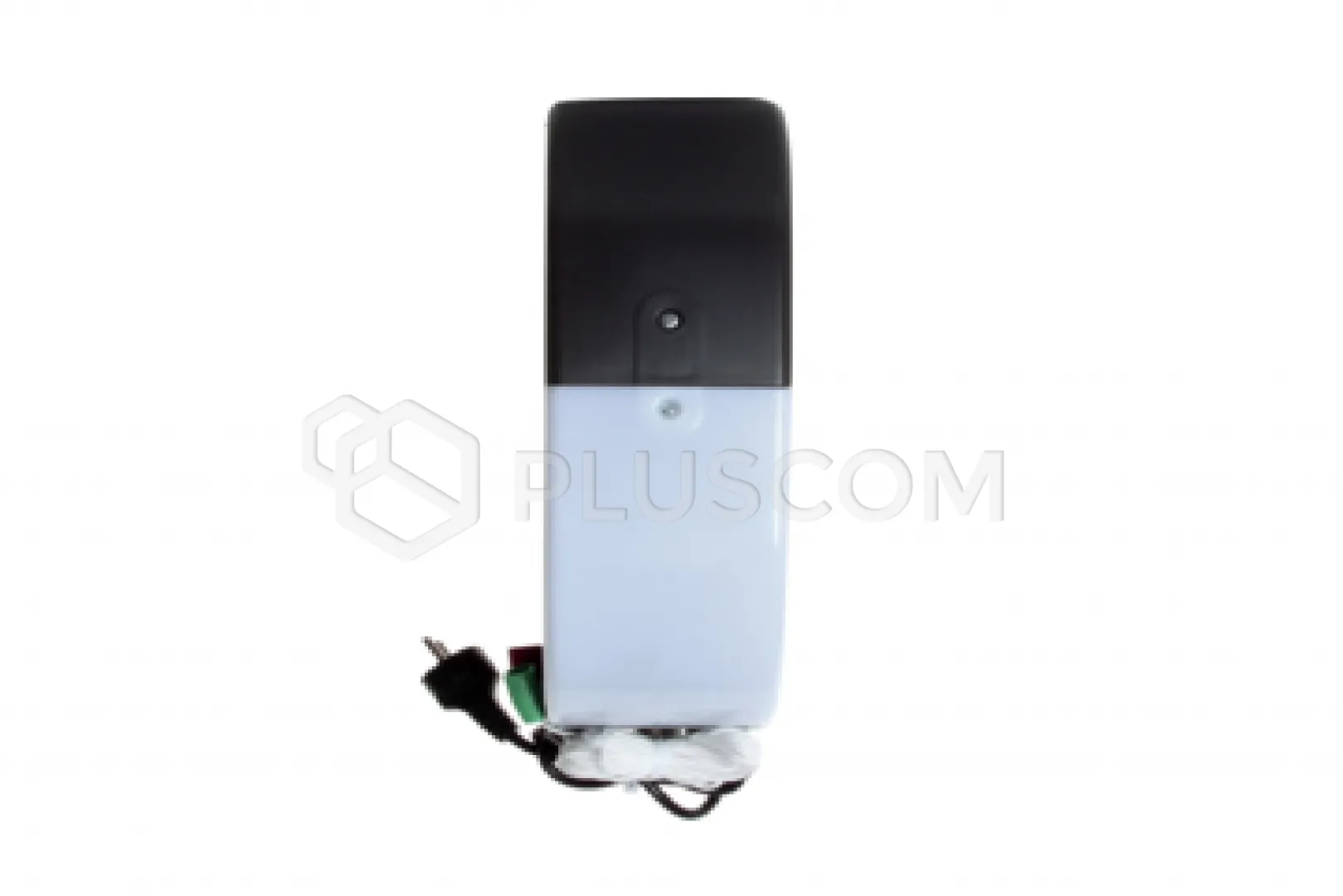

BFT 2611637 ARGO BT A20 Sectional Garage Door Drive

24V electromechanical drive with built-in lighting for sectional garage doors installed in residential, industrial and commercial premises. The robust mechanical structure and microprocessor technology of the control unit allow intensive use of the drive while ensuring maximum reliability.

In addition, the D-Track torque control system and absolute encoder provide extremely precise control of the gate's movement and high sensitivity to obstacles. It has a torque of 55 Nm. Built-in VENERE BT A control unit with display and built-in 4-channel receiver with dynamically changing code at 433MHz.

FEATURES:

• Limit switches based on absolute encoder technology to guarantee maximum reliability and stopping precision
• Built-in control unit with display for programming and D-Track system for torque, speed and position control
• Built-in dual-channel radio receiver. U-Link. Unique function for quick programming of the ground limit switch using the remote control
• Exclusive encoder position reset knob for quick and safe installation

Technical data:

• Control unit: VENERE BT A DIS
• Power supply voltage: 230V ±10% 50 Hz
• Motor supply voltage: 24 V dc
• Power consumption: 240 W
• Torque: 55 Nm
• Type of limit switches: Absolute encoder
• Gate area: 20 m² / 280 kg
• Slowdowns: Yes
• Lock: Mechanical
• Unlocking: String or RCA, BOX, SAFM
• Obstacle response: D-Track
• Use frequency: very intensive
• Protection class: IP24
• Operating temperature range: from -15°C to +55°C
