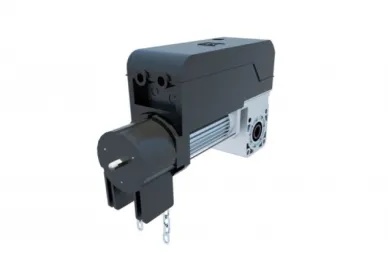

BFT 2611566 PEGASO N C 400V Industrial sectional door drive

966,18 EUR including 23.00% VAT
Product code: #38661
Manufacturer: BFT
  • Gate area up to 45m2
  • 400V motor, absolute encoder
  • Shaft speed: 25 rpm
  • For intensive use
  • It has a chain winch and 4m of chain
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2611566 PEGASO N C 400V Industrial sectional door drive


Electromechanical industrial sectional door drive with a maximum area of ​​45m2 used for intensive use.

The drive has:
  • A management system for stopping and intermediate limit switches based on technology using an absolute encoder with adjustable zero position
  • A system of ready-to-use cables with quick connectors
  • A control unit for operation with human presence mounted on the actuator

FEATURES:

  • BFT PEGASO N C 400V actuator for industrial sectional doors, mounted on a 1-inch shaft
  • Designed for doors with an area of ​​up to 45m2
  • The torque is 100Nm
  • A motor powered by 400V
  • The Pegaso in the version with the letter C has a chain hoist and a 4m chain (max. drive height up to 3.5m)
  • Electronic limit switches based on encoder
  • Efficiency 60% ED
  • Gearbox in oil bath

Technical data:

  • Control unit - LEO B CBB W01
  • Rated voltage - 400 V
  • Power consumption - 980 W
  • Maximum area - 45 m²
  • Shaft diameter - 25.4 mm
  • Gate area - 45 m²
  • Stroke 18
  • Limit switch type - Absolute encoder
  • Lock - mechanical
  • Unlocking - Unlock with chain
  • Use frequency - intensive
  • Protection class - IP54
  • Operating environment (max.) - -10 ÷ 50 °C
  • Connectivity - no
