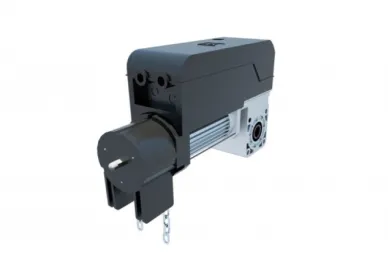

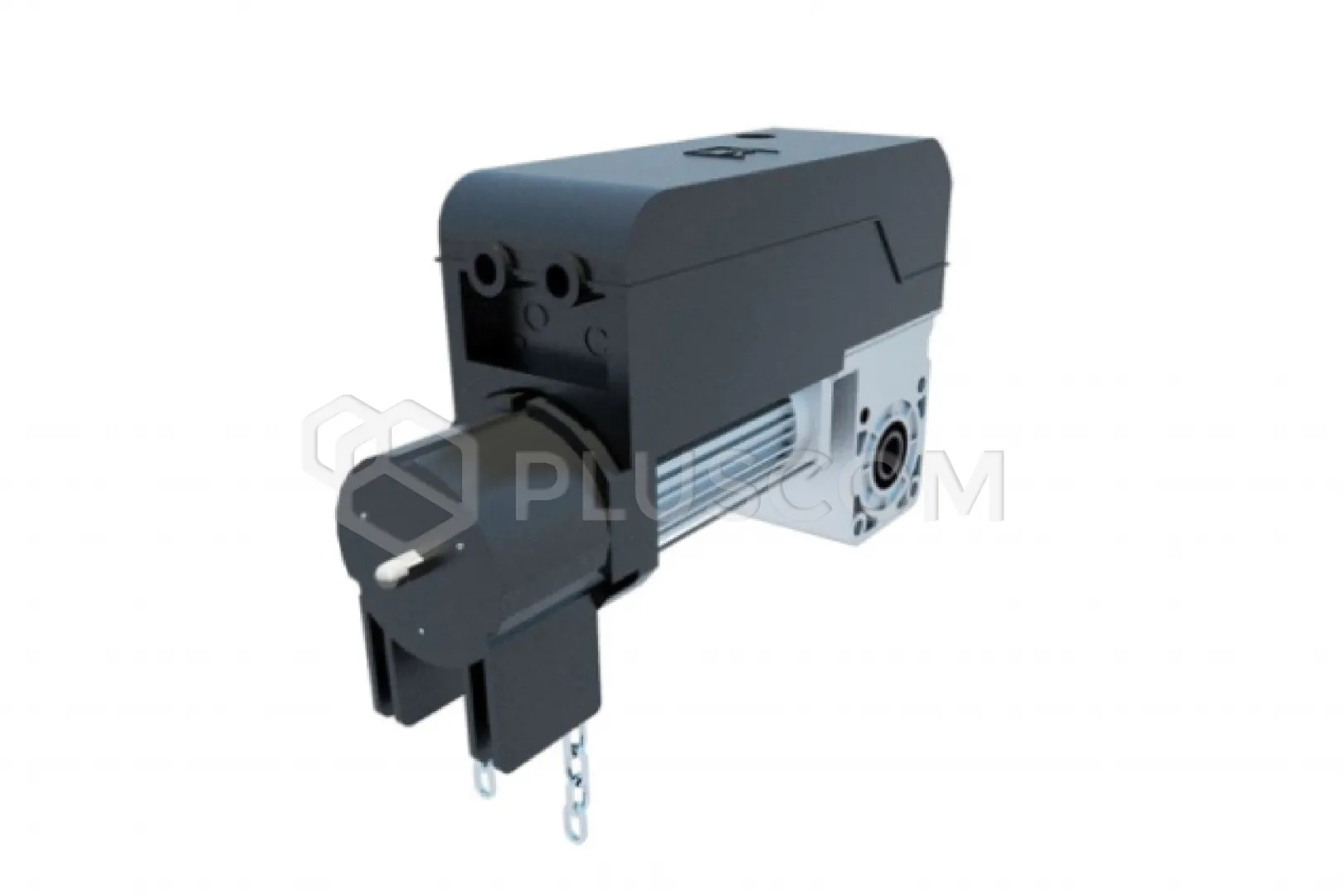

BFT 2611565 Industrial gate operator PEGASO N C

989,23 EUR including 23.00% VAT
Product code: #38660
Manufacturer: BFT
  • Max. gate area: 25m2
  • Max. door weight: 250kg
  • Power supply: 230V
  • For medium-intensity work
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2611565 Industrial gate drive PEGASO N C


Electromechanical actuator powered by electricity for semi-intensive use, for automation of industrial sectional gates up to 25m2.
Maximum opening speed 24rpm and maximum torque 70 Nm.
Actuator with absolute encoder, with the possibility of quick adjustment from the floor.

FEATURES:

  • BFT PEGASO N C 230V actuator for industrial sectional gates, mounted on a 1-inch shaft
  • Designed for gates with an area of ​​up to 25m2
  • Torque is 70Nm
  • Motor powered by 230V
  • Pegaso in the version with the letter C has a chain hoist and a 4m chain (max. drive height up to 3.5m)
  • Electronic limit switches based on an encoder
  • Efficiency 30% ED
  • Gearbox in oil bath

Technical data:

  • Control unit: LEO B CBB L01
  • Power supply voltage control unit: 230V ±10% 50 Hz
  • Power consumption: 750 W
  • Max. gate area: 25 m²
  • Shaft diameter: 25.4 mm
  • Shaft rotation speed: 25 rpm
  • Torque: 70 Nm
  • Limit switch type: Absolute encoder
  • Lock: Mechanical
  • Unlock: Chain hoist
  • Working frequency: Medium intensive
  • Tightness class: IP54
  • Working temperature range: from -10°C to +50°C
