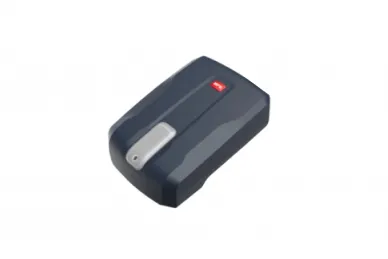

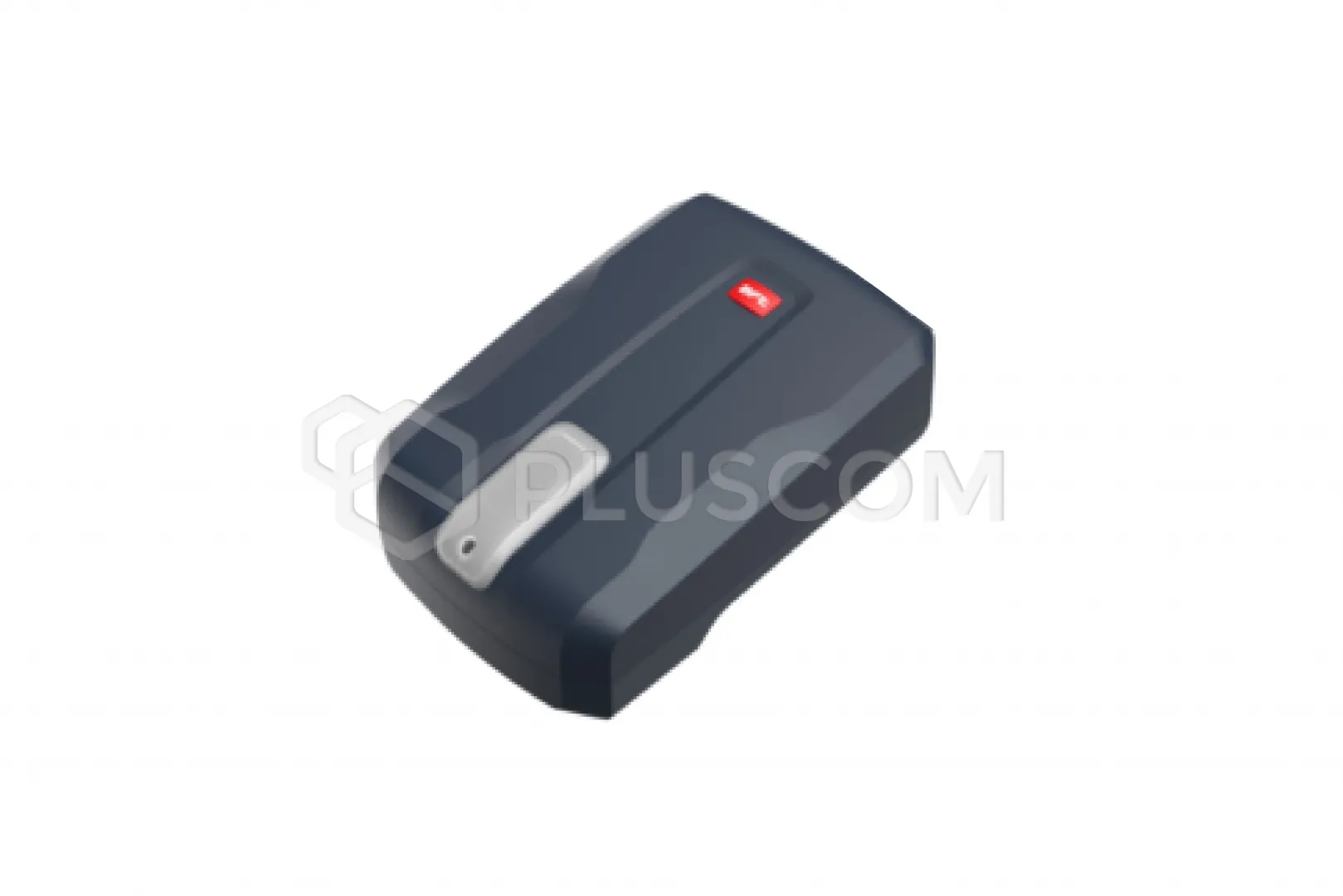

BFT 2611545 Garage door operator BOTTICELLI SMART BT A850 VERDE

509,40 EUR including 23.00% VAT
Product code: #38658
Manufacturer: BFT
  • Max. gate area: 13m2
  • Power supply: 24V
  • For intensive use
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

BFT 2611545 Garage door operator BOTTICELLI SMART BT A850 VERDE


WITHOUT GUIDE RAIL

24V sectional garage door operator with 80 kg traction force for intensive use. Maximum door surface 13m2. Opening speed 210 mm/s. Standby consumption: less than 1 W.

FEATURES:

  • Fast and powerful motors: fast opening to minimise waiting times and intensive use of automation for all types of applications
  • Improved quick mechanical installation: thanks to the new, quick Autoset procedure, it can be carried out by one person
  • Encoder and exclusive D-Track force management system: for safe installation in all conditions
  • Integrated burglar alarm: models with a control unit with full display offer a unique burglar alarm function; the printed circuit board can become the control unit of a wired anti-burglary system

Technical data:

  • Control unit - VENERE BT A DIS
  • Rated voltage - 24 V
  • Power consumption - 200 W
  • Power consumption in standby mode - 1 W
  • Pulling force and pull - 850 N
  • Number of movements per day at 60° - 50
  • Gate area - 13m2
  • Maximum opening speed (chain rail) - 210 mm/s
  • Maximum opening speed (belt rail) - 240 mm/s
  • Limit switch type - Encoder + mechanical limiter for opening
  • Release - Yes
  • Lock - Mechanical
  • Release - Steel cable or rope
  • Impact reaction - D-Track
  • Protection class - IP20
  • Environmental conditions - -20 ÷ 60 °C
  • Interconnectivity - Yes
Download
User's Guide 12.33 MB
