BFT 2605627 XPASS B 275/800C L SD + EFO Anti-terrorist barrier

BFT 2605627 XPASS B 275/800C L SD + EFO Hydraulic anti-terrorist barrier K4 (P970307 00002)

The XPASS B 275/800 K4 anti-terrorist barrier is designed to block the passage in places requiring a special form of security. The level of security is based on tests carried out by an accredited external laboratory in accordance with international standards ASTM2656:2007 M30 - PAS 68:2013 V/7500[N2]/48/90:5.2.

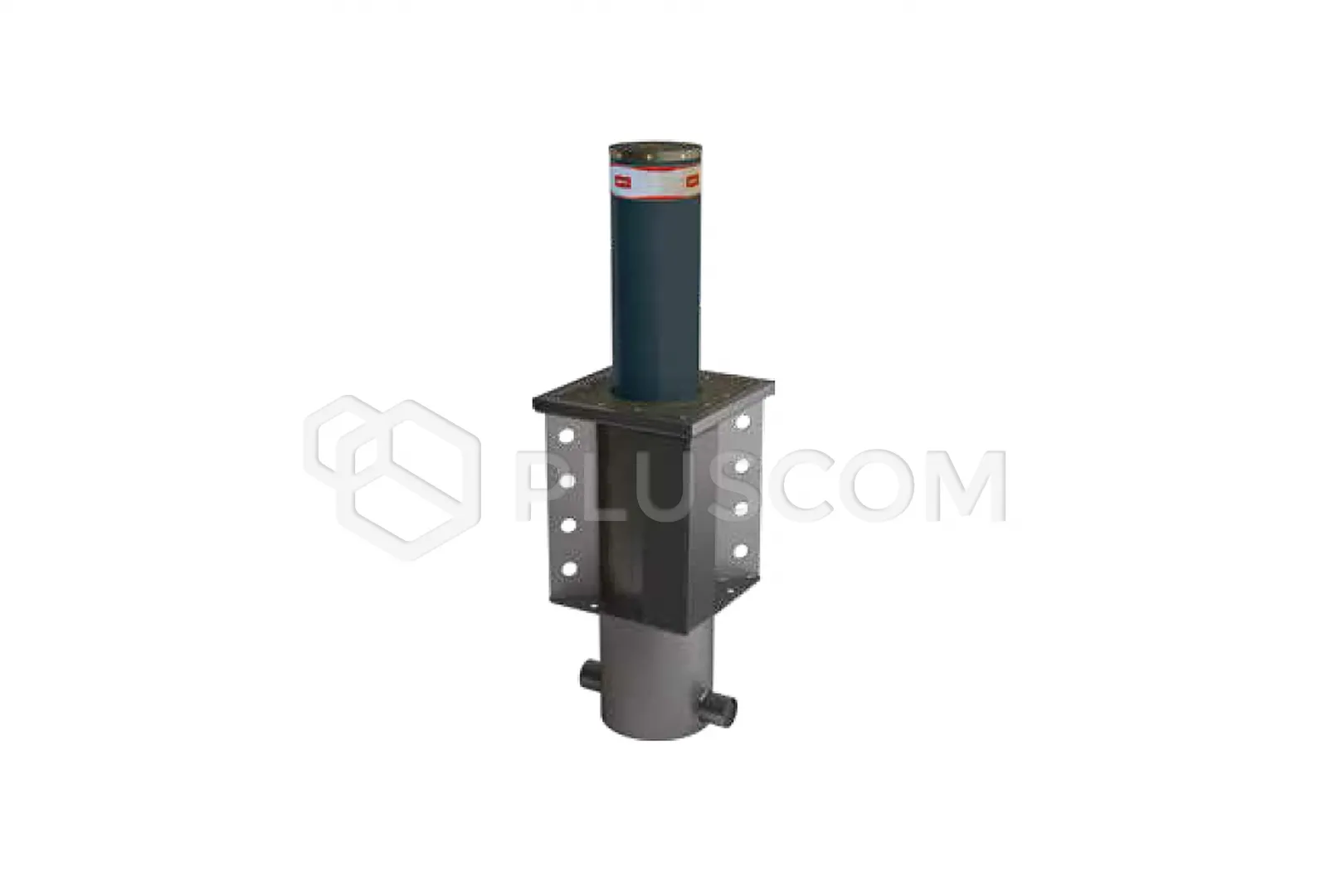

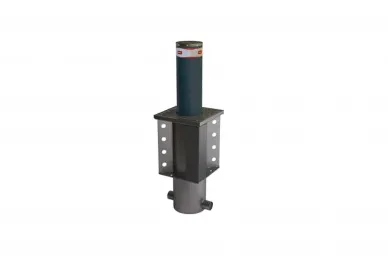

A post with a height of 800 mm and a diameter of 273 mm, with a cap with LED lights and with an EFO device for quick emergency lifting.
In the event of a power failure, the post lowers automatically.

Protection is guaranteed even in the case of a single barrier. Very high resistance is ensured by the wall thickness of the cylinder of up to 10 mm made of Fe 510 steel (S 355 JR).

For use with the PERSEO CBE 230.P SD control unit:

• Can manage up to 4 barriers at the same time (or up to 2 XPASS B 1200).
• Control unit power supply voltage: 230Vac +- 10%, 50/60Hz
• Motor power supply voltage: 230Vac, 12A max
• Accessories power supply voltage: 24Vac, 1A max
• Main features: removable terminal blocks, digital programming, 3-digit display, Proxima Blue programmer connector, integrated CLONIX2048 receiver, integrated TERMON heater (heating level adjustment), full support for anti-terrorist posts, dedicated UPS status input (configurable), U-Link communication port, programmable inputs and outputs
• Main functions: automatic re-closing, separate OPEN-CLOSE inputs, early lighting, deadman function, automatic and semi-automatic, limit switches on opening and closing, possibility of reading the error history, slowdowns for electromechanical barriers, possibility of setting the service inspection (number of cycles), EFO (Emergency Fast Operation) management

EFO version enabling fast lifting of the post (approx. 3 times faster compared to standard speed), indispensable in emergencies. The device consists of a tank under very high pressure, which when activated guarantees an additional impulse reaching the hydraulic pump. After use, the system automatically returns to its previous state, without the need for maintenance.
The set includes a foundation box.

TECHNICAL DATA:

• Post diameter: 275 mm
• Post height: 800 mm
• Post thickness: 10 mm
• Power supply: 230 V
• Break resistance: 800,000 J
• Lifting time: max. 4s (1.5s with HYDR UNIT+EFO)
• Down time: 2s
• Obstacle reaction: pressure valve
• Anti-terrorism certification: PAS 68:2010 7500/50/N2
• Limit switch type: REED magnetic sensor
• Use frequency: 2000 c/24h
• Manual mode, unlock: key unlock
• Control unit: PERSEO CBE
• Painted steel cylinder: RAL 7015
• Protection class: IP67
• Working environment (max.): -40 ÷ 60 °C
