BFT 2605611 XPASS B 330/1200 BODY L Anti-terrorist barrier

24106,27 EUR including 23.00% VAT
Product code: #38144
Manufacturer: BFT
  • Height: 1200mm
  • Diameter: 330mm
  • Foundation box and LED lighting included
  • The set does not include a hydraulic unit
  • The barrier remains up when there is no power
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2614120 MITTO COOL C4 remote BFT 2614118 MITTO COOL C2 remote control

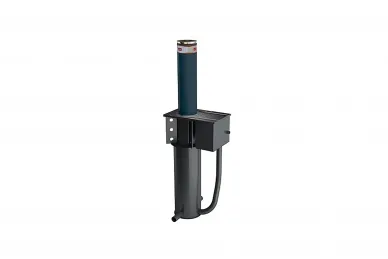

BFT 2605611 XPASS B 330/1200 BODY L Hydraulic anti-terrorist barrier K12 (P970105 00001)


The K12 hydraulic anti-terrorist barrier is designed to block passage in places requiring a special form of security. The level of safety is based on crash testing by an independent certified body in accordance with IWA14-1:2013 V/7200[N3C]/80/90 (formerly K12) standards.

A post with a height of 1200 mm and a diameter of 330 mm and with a cap with LED lights.
In the event of a power outage, the cylinder remains up.

Version made of painted steel RAL 7015. Does not include a hydraulic unit, foundation box included. Maximum resistance to shearing. Very high resistance is ensured by the cylinder wall thickness of up to 25 mm.

For use with the PERSEO CBE 230.P SD control unit:
  • Can manage up to 4 barriers at the same time (or up to 2 XPASS B 1200).
  • Control unit power supply voltage: 230Vac +- 10%, 50/60Hz
  • Motor power supply voltage: 230Vac, 12A max
  • Accessories power supply voltage: 24Vac, 1A max
  • Main features: removable terminal blocks, digital programming, 3-digit display, Proxima Blue programmer connector, integrated CLONIX2048 receiver, integrated TERMON heater (heating level adjustment), full support for anti-terrorist posts, dedicated UPS status input (configurable), U-Link communication port, programmable inputs and outputs
  • Main functions: automatic re-closing, separate OPEN-CLOSE inputs, early lighting, deadman function, automatic and semi-automatic, limit switches on opening and closing, possibility of reading the error history, slowdowns for electromechanical barriers, possibility of setting the service inspection (number of cycles), EFO (Emergency Fast Operation) management

TECHNICAL DATA:

  • Post diameter: 330 mm
  • Post height: 1200 mm
  • Post thickness: 25 mm
  • Power supply: 230 V
  • Break resistance: 2 100,000 J
  • Lifting time: 6.3 sec max.
  • Down time: 4s
  • Obstacle reaction: pressure valve
  • Anti-terrorism certification: IWA14-1:2013 V/7200[N3C]/80/90 for one firewall
  • Limit switch type: REED magnetic sensor
  • Use frequency: 2000 c/24h
  • Manual mode, unlock: key unlocking in the event of a power failure
  • Control unit: PERSEO CBE
  • Painted steel cylinder: RAL 7015
  • Protection class: IP67
  • Working environment (max.): -40 ÷ 60 °C
Download
Datasheet 5.58 MB
