BFT 2605575 STOPPY B 200/700 I Road barrier

4527,32 EUR including 23.00% VAT
Product code: #38135
Manufacturer: BFT
  • Height: 700mm
  • Diameter: 194mm
  • Well depth: 1180mm
  • Opening time: 9s
  • INOX finish
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2605292 Power Cable EXT50 BFT 2605291 Power Cable EXT25 BFT 2601390 BATT-EB Emergency power supply battery for electromechanical barriers BFT 2601355 TCAP TOTEM top cover without lighting

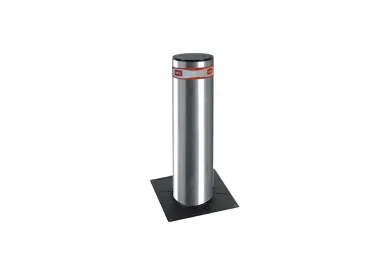

BFT 2605575 STOPPY B 200-700 I Road barrier with reflective strip and LED lighting (P970089 00001)


Road barrier designed to block the passage in places with medium traffic intensity. Particularly recommended in locations requiring architectural consistency or a special form of protection.
STOPPY B 200/700 with a diameter of 200 mm and a height of 700 mm, is equipped with both a reflective strip and LED warning lighting.

The firewall is operated by means of a PERSEO CBE control unit with U-Link port, CLONIX 2048 receiver and heating circuit function (up to -40 ° C) with the following features:
  • It can manage up to 4 firewalls at the same time (or up to 2 XPASS B 1200).
  • Control unit power supply voltage: 230Vac +- 10%, 50/60Hz
  • Motor power supply voltage: 230Vac, 12A max
  • Accessories power supply voltage: 24Vac, 1A max
  • Main features: removable terminal blocks, digital programming, 3-digit display, Proxima Blue programmer connector, integrated CLONIX2048 receiver, integrated TERMO N heater (heating level adjustment), full support for anti-terrorist posts, dedicated UPS status input (configurable), U-Link communication port, programmable inputs and outputs
  • Main functions: : automatic re-closing, separate OPEN-CLOSE inputs, early lighting, deadman function, automatic and semi-automatic, limit switches on opening and closing, possibility of reading error history, slowdowns for electromechanical barriers, possibility of setting service inspection (number of cycles), EFO (Emergency Fast Operation) management

TECHNICAL DATA:

  • Post diameter: 200 mm
  • Post height: 700 mm
  • Open time: 9s
  • Type of limit switches: REED magnetic sensor
  • Power supply voltage: 230V ±10% 50 Hz
  • Motor power: 130W
  • Slowdowns: YES
  • Impact resistance: 6000 J
  • Shear resistance: 60000 J
  • Unlocking: reversible in the absence of voltage, possibility of using emergency power supply for the brake
  • Frequency of use: medium intensive
  • Tightness class: IP67
  • Operating temperatures: -40 ÷ 60 °C
Download
Datasheet 2.12 MB
User manual 2.03 MB
