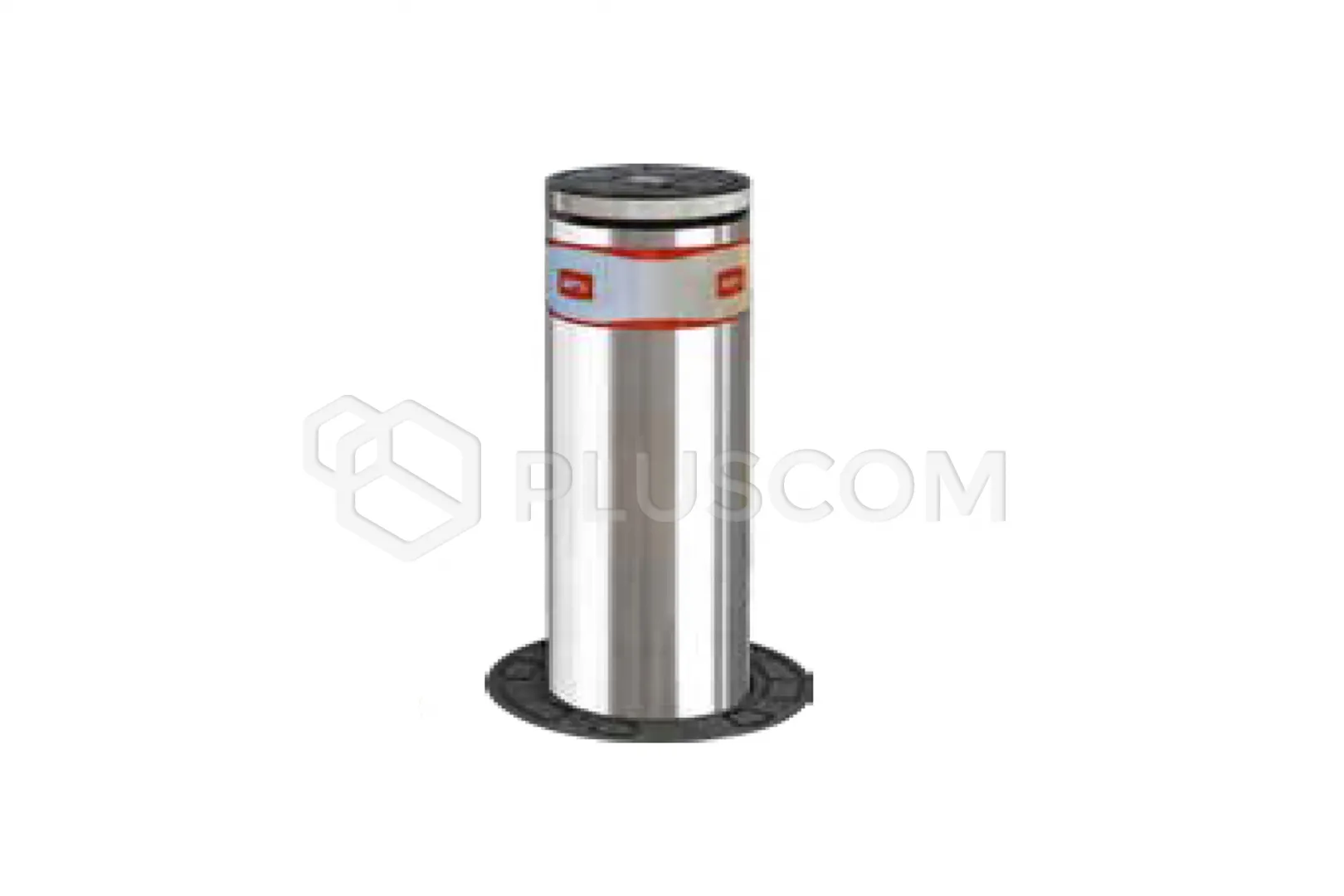

BFT 2605567 DAMPY B 219/500 LI Gas barrier

3669,46 EUR including 19.00% VAT
Product code: #38132
Manufacturer: BFT
  • Height: 500mm
  • Diameter: 219mm
  • Well depth: 915mm
  • Drive: Gas
  • Cylinder lifting force: 170 N
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2614120 MITTO COOL C4 remote BFT 2614118 MITTO COOL C2 remote control BFT 2607224 ALLU K12 LED Power Supply Module

BFT 2605566 DAMPY B 219/500 L Semi-automatic road barrier, diameter 219mm, height 500mm


Semi-automatic road barrier with a gas spring, with a post with a diameter of 219 mm and a height of 500 mm, designed to block the passage in places where pedestrian traffic is permitted. It is dedicated to residential use.

The special design with a gas spring allows the barrier to be installed also where it is not possible to carry out electrical installation.
The barrier is unlocked using a special triangular key - the gas spring will automatically raise the barrier. Exceptionally simple stowing of the barrier by pressing, e.g. with a foot (approx. 170N) - the barrier will lock in the lowered position.

TECHNICAL DATA:

  • Post diameter: 115 mm
  • Post height: 500 mm
  • Post thickness: 4 mm
  • Post finish: stainless steel
  • Post movement: by internal gas spring
  • Impact resistance: 10000 J
  • Break-out resistance: 60000 J
  • Post lock: by triangular key
Download
User manual 1.28 MB
