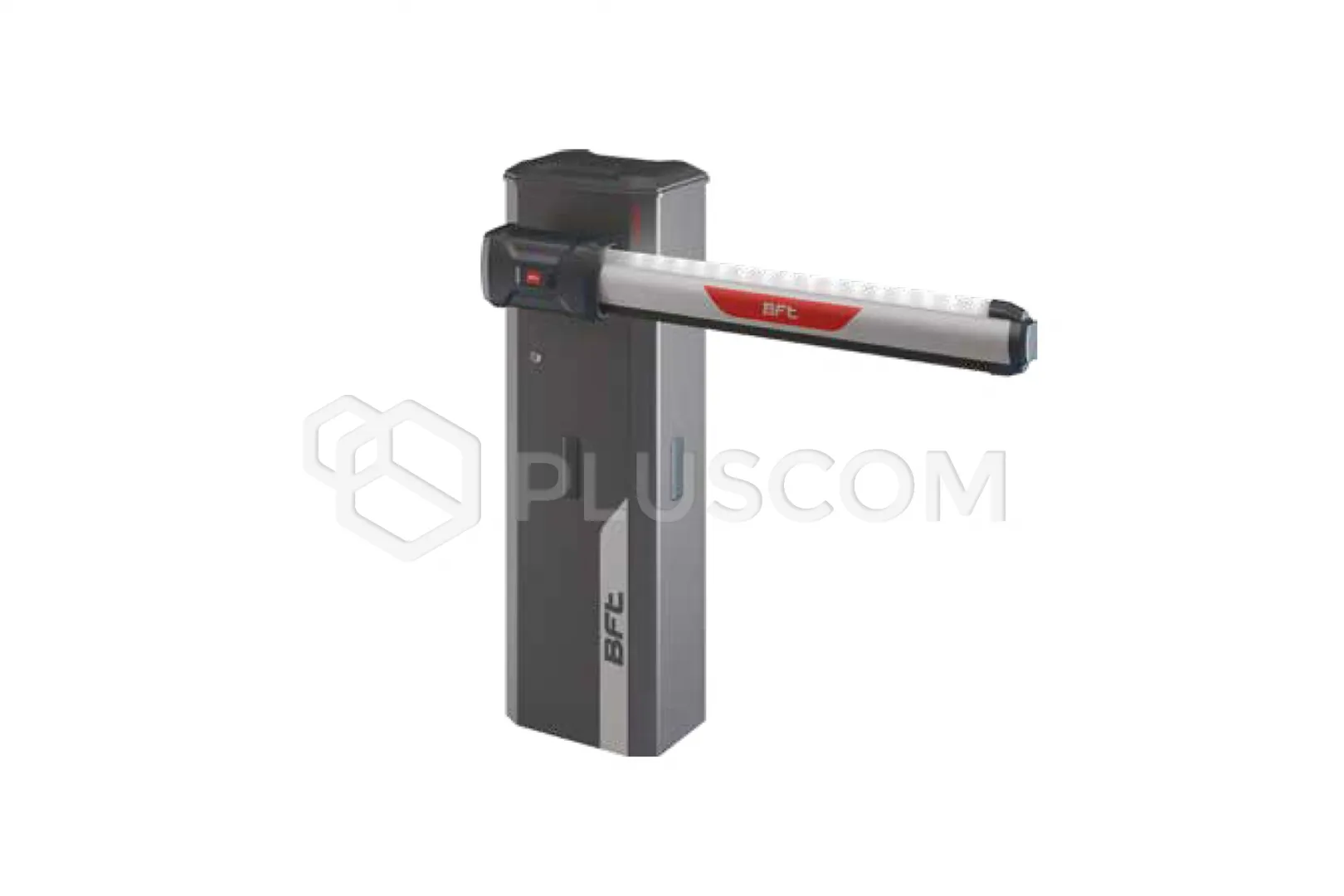

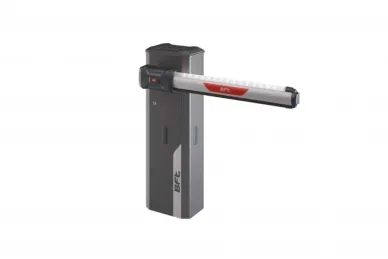

BFT 2605398 GIOTTO BT A ULTRA36 230V50 CENTRAL
UNIT FOR ARM UP TO 4m
The electromechanical barrier for intensive use allows control of passages up
to 4m wide. It is equipped with a 24 VDC motor with a wide range of
accessories, making it the ideal choice for any investment.
FEATURES:
- Encoder
- Control unit with U-Link and display
- 24 VDC motor
- Lubricated with new gear grease (no plastic parts)
- Compatible with the new BOOM ES arm and BOOM PS arms.
- New GT-BOARD lighting power supply
- Manual release using a special release key (end user) different from the
door release key (for the installer)
- Common accessories with the Maxima U36 family (depending on the max.
permissible weight)
- Limit switches pre-assembled on the support, easy to dismantle and
reassemble
GIOTTO BT A ULTRA36 is equipped with in the MERAK control unit with U-Link
for extremely fast and precise installations thanks to pre-programmed
scenarios. It is very easy to use, just a few operations on the display are
enough to program it completely.
The control unit is located on the top of the barrier and protected by a solid
aluminum casing for easy and safe use.
Main features:
removable terminal connectors, numbered and colored
(different color for each section), programming using the display and buttons,
integrated two-channel CLONIX64 receiver. Anti-crush system based on D-Track
technology. Slow-downs on opening and closing. U-Link communication port
Main functions:
Possibility of connecting a semaform using TLB+B EBA
IO-DRIVER cards, programmable AUX outputs, programmable IC signal inputs, pulse
locks, hold-to-rUn logic, photo closing (1s), earlier lamp lighting,
opening/closing speed adjustment.

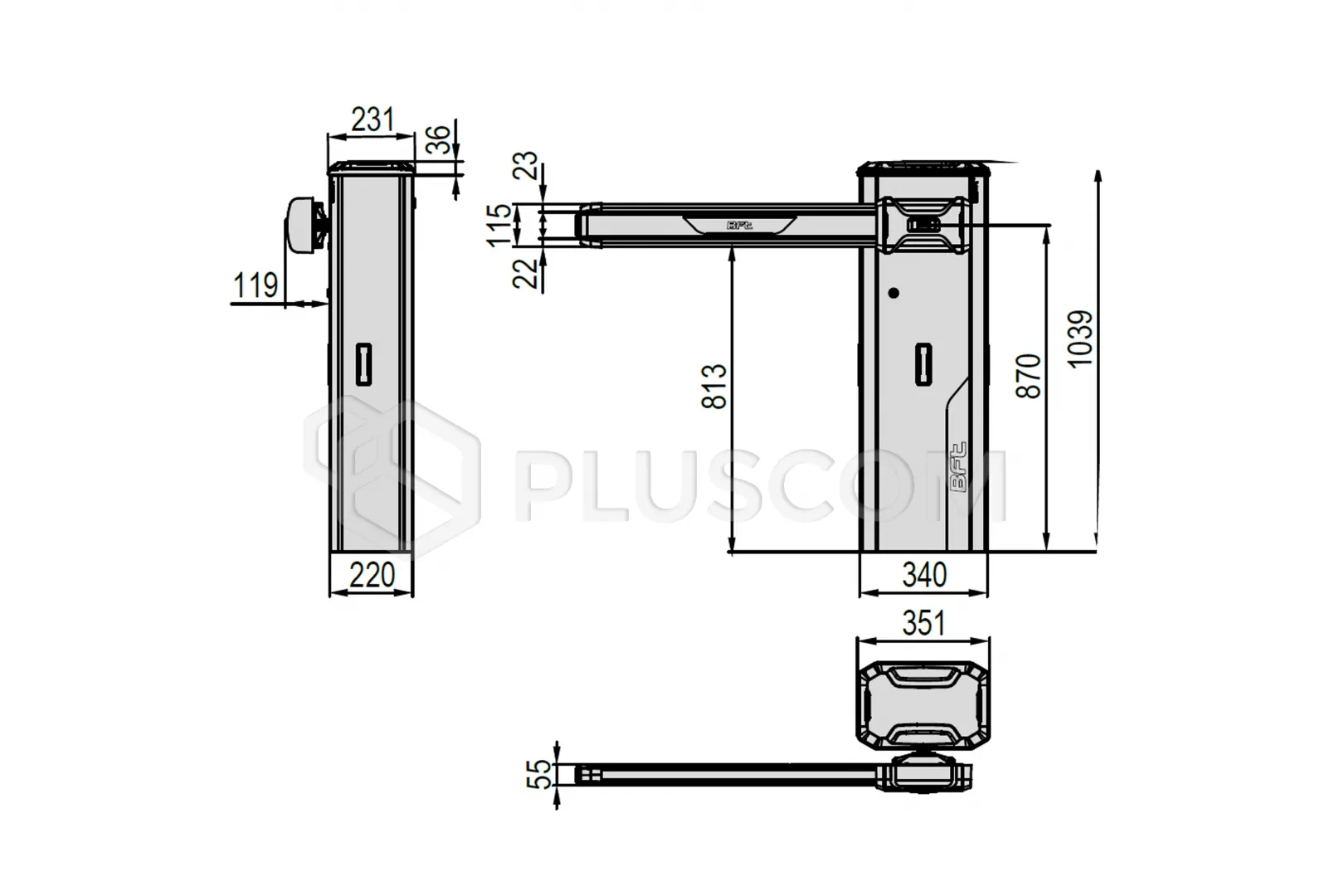

Dimensions:
TECHNICAL DATA:
- Control unit: MERAK
- Power supply voltage: 230V ±10% 50 Hz
- Usable passage light: from 2m to 4m
- Use frequency: 5,000 c/24h
- Open/close time: 2.2 sec.
- Motor supply voltage: 24 V
- Gear type: grease lubricated
- Type of limit switches: electromechanical
- Slowdowns: adjustable
- Lock: mechanical
- Manual mode: personalized key
- Color gray RAL 7015
- Temperature range working: -20°C/+55°C
- Protection class: IP54
