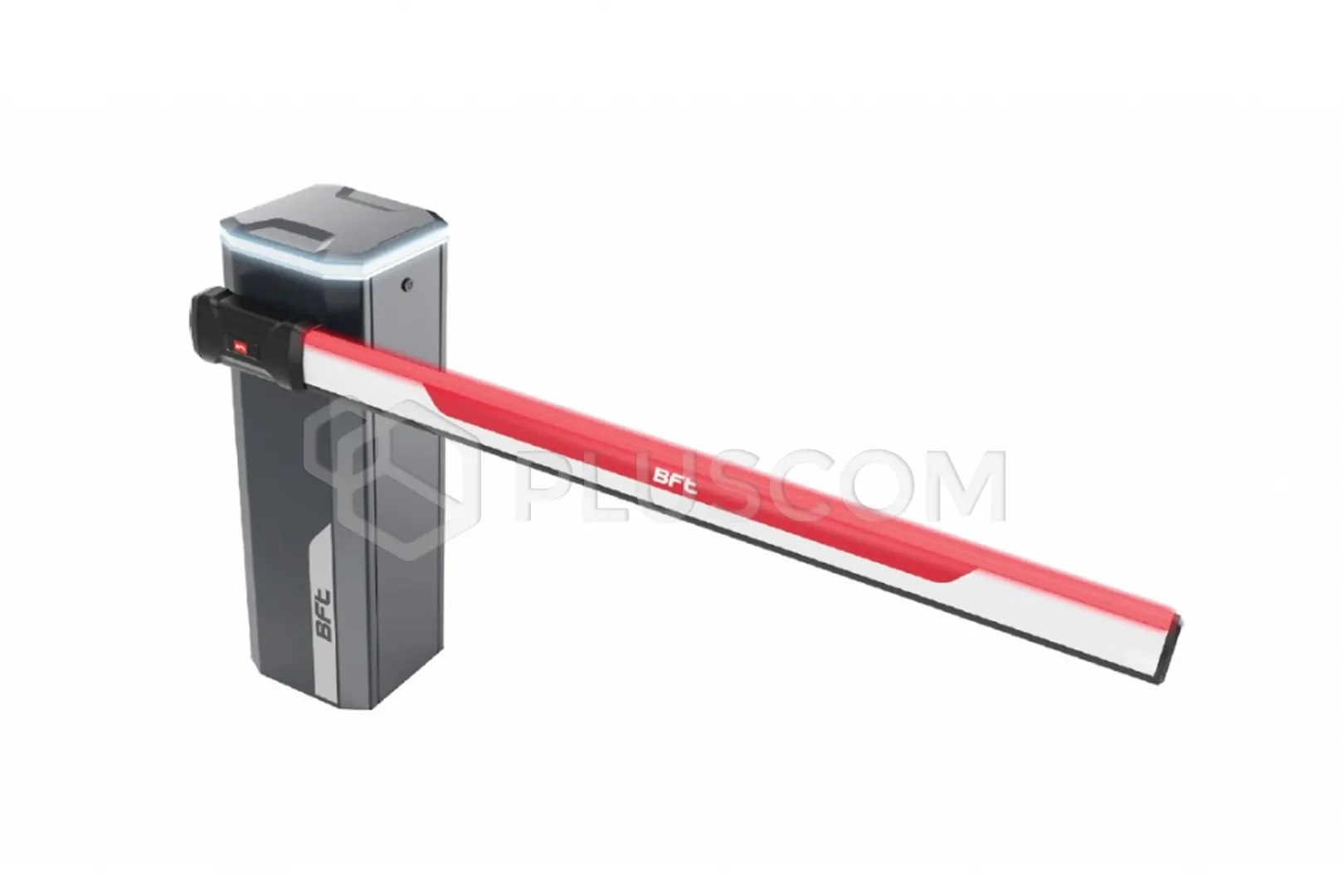

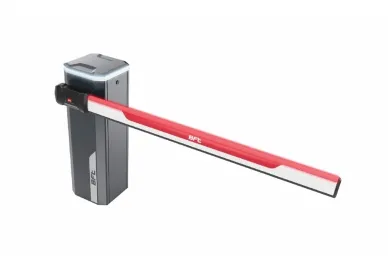

BFT 2605384 MAXIMA ULTRA 36 XL INOX 230V Barrier up to 6m

5760,66 EUR including 23.00% VAT
Product code: #38121
Manufacturer: BFT
  • Stainless steel casing + extra strong spring
  • Bar length up to 6m
  • Opening time: 0.7 - 3.9 s
  • Motor type: asynchronous, three-phase
  • Top cover not included
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2614120 MITTO COOL C4 remote BFT 2601276 ALLU 2 MAXIMA ULTRA LED lighting power supply module BFT 2614118 MITTO COOL C2 remote control BFT 2601264 DIMA PRO 36 mounting base BFT 2605389 Top cover of the barrier with LED lighting - CROWN RGB MAXIMA U36 INOX BFT 2601263 OMEGA PS MAXIMA U36 - Arm holder with cover and mounting screws BFT 2605244 LIGHT PS60-IP67 LED Lighting Kit BFT 2605243 LIGHT PS/ES 40-IP67 LED lighting kit BFT 2605242 LIGHT PS/ES 40-IP67 LED lighting kit BFT 2605241 LIGHT PS/ES 30-IP67 LED lighting kit

BFT 2605384 MAXIMA ULTRA 36 XL INOX 230V CENTRAL UNIT FOR ARM 2-6m, VERSION WITH STRONGER SPRING


Electromechanical barrier for 230V with inverter and asynchronous three-phase motor for very intensive work.
It allows to manage passages from 2 to 6 meters with an arm fully equipped with accessories in one model.

The barrier unit should be equipped with an INOX cap with RGB lamps with flashing, traffic signal, diagnostics functions

FEATURES:

  • opening time from 0.7 to 4 seconds with slow-down function
  • three-phase asynchronous motor
  • designed for continuous operation
  • mechanical lock
  • stainless steel housing
  • built-in encoder
  • maintenance available from three different points - from the top of the barrier, through the front door or the rear
  • three arm mounting points - for different loads
The ROD & CRANK solution used provides protection against vandalism, preventing unauthorized opening of the barrier. At the same time, it provides mechanical acceleration and deceleration of the arm with smooth movement.

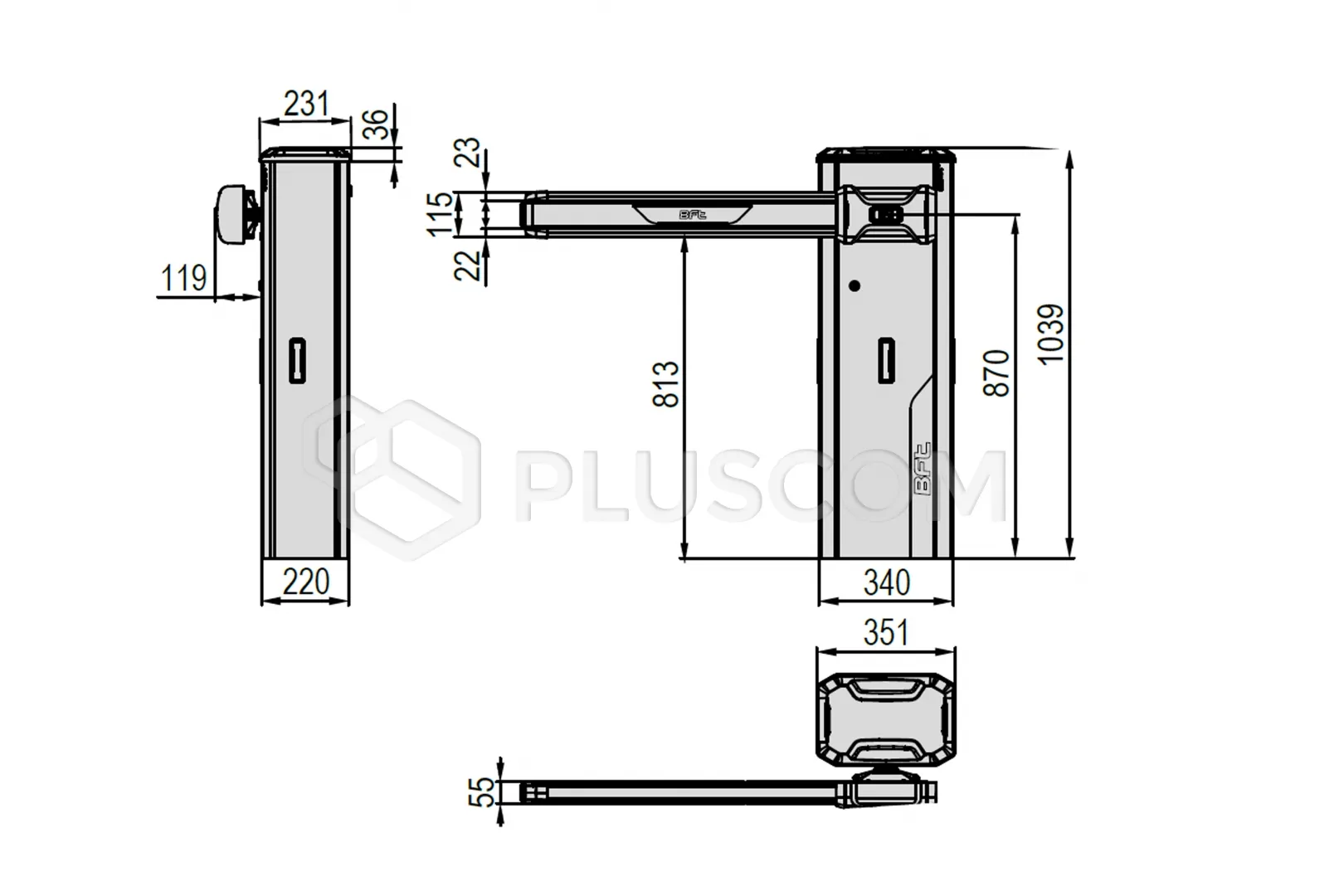

Dimensions:

Dimensions:


TECHNICAL DATA:

  • Control unit: CSB-XT
  • Usable passage light: from 2m to 6m
  • Use frequency: 5,000 cycles per day
  • Open/close time: 0.7 to 3.9 s
  • Motor type: asynchronous 3-phase
  • Gear type: in oil bath
  • Inverter: yes
  • Impact response: optical encoder
  • Mechanical lock, ROD & CRANK gear(anti-vandal)
  • Unlocking: inside the structure, special crank
  • Steel housing stainless steel
  • Operating temperature range: -40°C - +60°C
  • Tightness class: IP55
Download
User manual 5.89 MB
