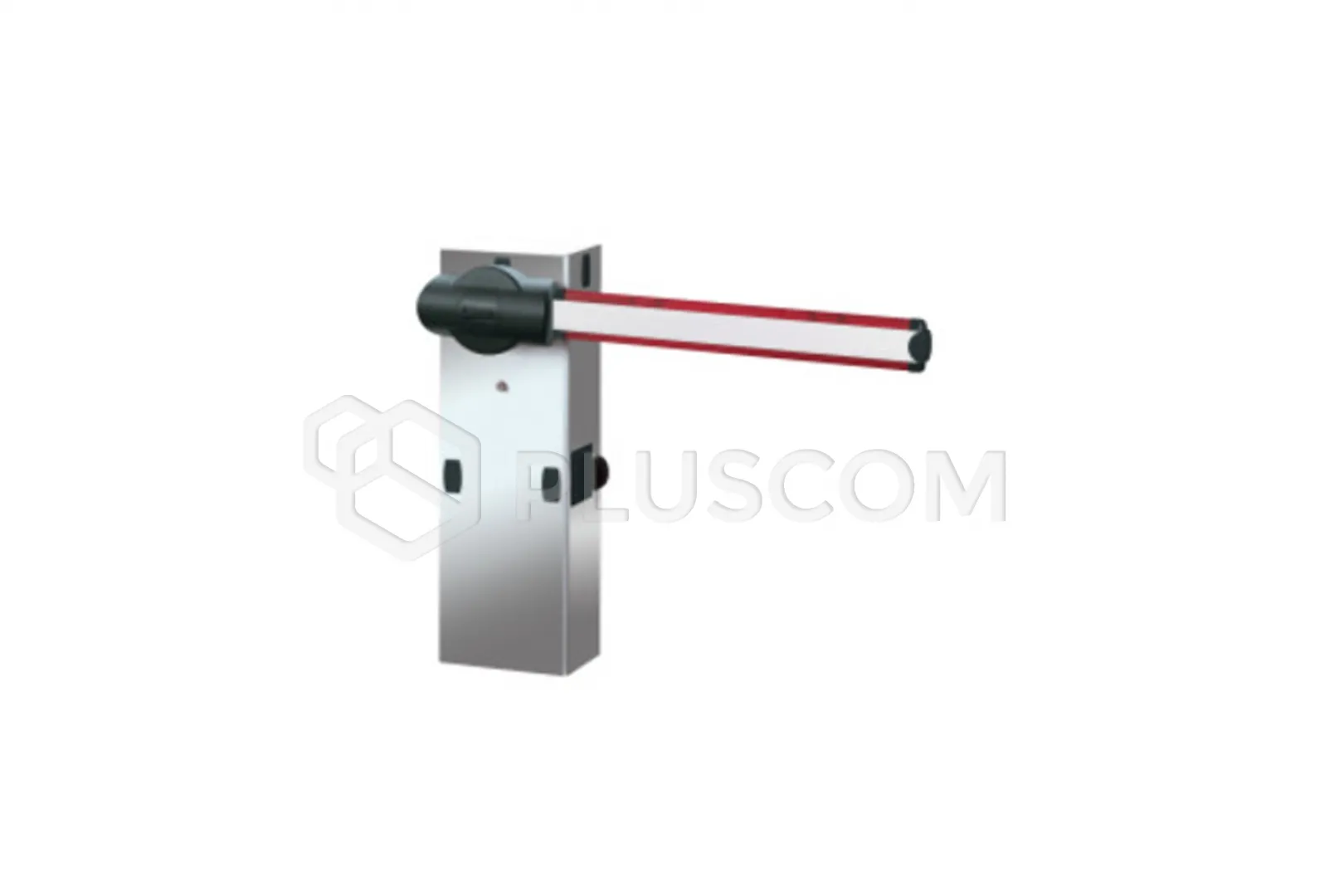

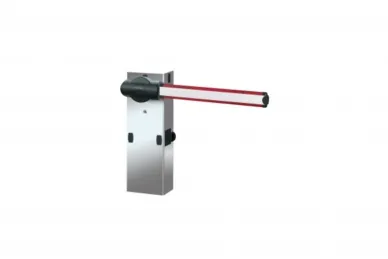

BFT 2605330 MOOVI 60 RMM INOX Barrier column up to 6m

2879,80 EUR including 20.00% VAT
Product code: #38116
Manufacturer: BFT
  • Permissible arm lengths:6m
  • Opening time: 8s
  • Engine supply voltage: 230V
  • LEO D CBB control unit
  • Stainless steel casing
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2600775 BIR C Low-profile rubber strip with aluminum mounting strip, price per 1 m BFT 2600539 Flat arm mounting accessories kit for GIOTTO/MOOVI series barriers BFT 2611133 Barrier arm stickers (set of 12) BFT 2600495 Aluminum tube arm with stickers, length 5.25 ATG 5 BFT 2608500 Optional mounting base for MOOVI/GIOTTO barriers BFT 2600230 5m or 6m arm lighting, MOOVI and GIOTTO barrier BFT 2605196 Safety rubbers for barrier arm 5 m long BFT 2600216 Fixed arm support FAF 2 BFT 2605041 OMEGA AQ INOX - Flat arm holder for MOOVI barrier BFT 2600134 GAMA AQ AT Movable arm support with shock absorber for barriers

BFT 2605330 MOOVI 60 RMM INOX CENTRAL UNIT FOR ARM UP TO 6m (P940066 00004)


The MOOVI 60 RMM INOX barrier is designed for entrances with a width of 6m or more. It has a 230V motor with its own cooling system.

The RMM version barriers have a built-in LEO D CBB control unit equipped with an LCD display and are characterized by:
  • The LEO D CBB control unit has an eeLink connector (memory management of the integrated CLONIX 64 receiver)
  • 4-channel receiver for 63 remote controls, additional comb connector for connecting the CLONIX receiver (pluggable)
  • OPEN-CLOSE control, START. Built-in communication port for connecting B EBA expansion cards, closing after photo, possibility of turning off the Encoder, 24Vac accessory power supply, electronic torque regulation
  • Possibility of connecting two units in MASTER & SLAVE mode, using B EBA RS485 (U-LINK)
  • Changing parameter values, logic, diagnostics using the display and +, -, OK buttons
  • Additionally, it has 3 SAFE inputs and 4 IC outputs and a programmable AUX3
The RMM version is equipped with a slowdown function when opening and closing.
Safety is ensured by the obstacle detection function implemented via an optical encoder. The barrier stops immediately and reverses movement upon encountering an obstacle.

The integrated radio receiver with a dynamically changing code allows you to store up to 63 remote controls. Both flat and tube arms can be used with the units. The barrier is factory-fitted for left-hand side mounting, looking from the property.

FEATURES:

  • 230 V powered motor with its own cooling system
  • release function when closing and opening
  • built-in LEO MV D control unit with LCD display
  • safety is ensured by the obstacle detection function implemented via an optical encoder
  • the barrier stops immediately and reverses its movement when it hits an obstacle
  • integrated radio receiver with dynamically changing code allows to memorize 63 remote controls
  • both flat and tube arms can be used with the unit
  • barriers adapted for intensive work, approx. 1200 cycles per day
  • opening time 8 seconds
  • stainless steel housing
Download
User manual 3.27 MB
