BFT 2605323 MOOVI 60 Barrier column up to 6m

1388,71 EUR including 23.00% VAT
Product code: #38114
Manufacturer: BFT
  • Permissible arm lengths: 6m
  • Opening time: 8s
  • Engine supply voltage: 230V
  • Built-in SHYRA AC BA control unit
  • Color gray RAL 7015
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2608500 Optional mounting base for MOOVI/GIOTTO barriers BFT 2600230 5m or 6m arm lighting, MOOVI and GIOTTO barrier BFT 2605196 Safety rubbers for barrier arm 5 m long BFT 2600216 Fixed arm support FAF 2 BFT 2605041 OMEGA AQ INOX - Flat arm holder for MOOVI barrier BFT 2600134 GAMA AQ AT Movable arm support with shock absorber for barriers BFT 2601005 MASTER&SLAVE connection card (QSC-D, RIGEL5, LEO MV-D) BFT 2600129 SB Protection of the passage under the barrier arm, so-called BFT 2600953 Safety rubbers for barrier arm 3 m long BFT 2600128 Accessories for ART 90 Q articulated arm (N728051)

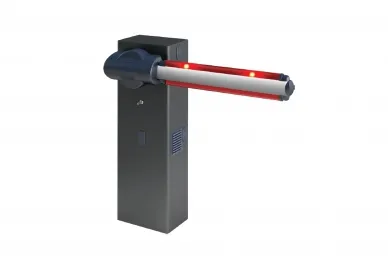

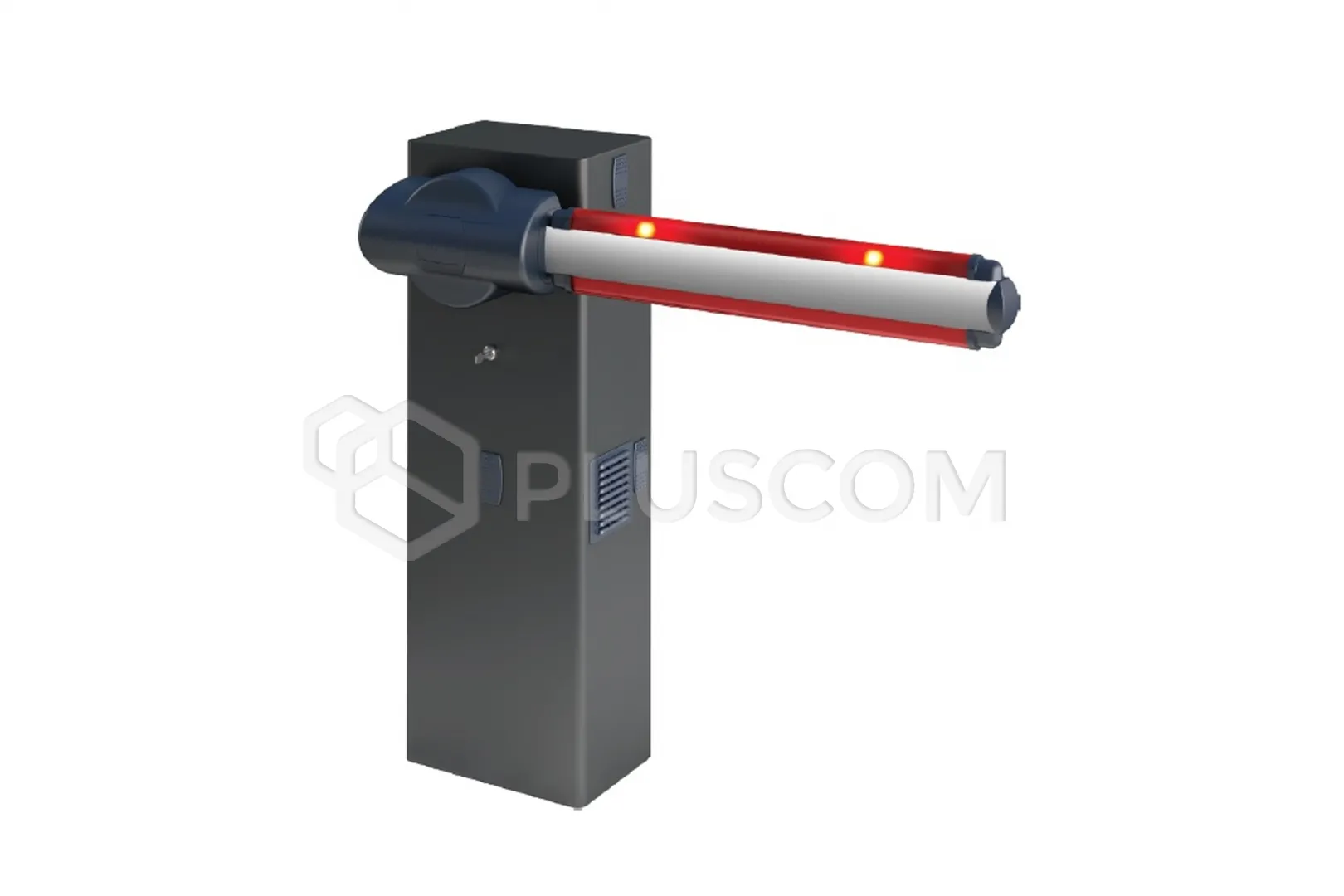

BFT 2605323 Barrier MOOVI 60 230V up to 6m (P940065 00002)


The MOOVI 60 barrier is designed for entrances up to 6m wide.
It has a 230 V motor with its own cooling system. It has a built-in SHYRA AC BA control unit with an eeLink connector, an integrated 2-channel receiver for 63 remote controls and an additional comb connector for connecting the CLONIX receiver (pluggable). It has the ability to control OPEN-CLOSE (TW trimmer), emergency STOP and automatic closing time adjustment via the TCA trimmer. The opening/closing point is set on microswitches and mechanical limiters.
Both flat and tube arms can be used with the unit. The barrier is factory-fitted for mounting on the left side, looking from the property. Color gray RAL 7015.

Safety is ensured by the obstacle detection function implemented via an optical encoder. After hitting an obstacle, the barrier immediately stops and reverses movement.

TECHNICAL DATA:

  • Power supply voltage: 230V ±10% 50 Hz
  • Power consumption: 300 W
  • Control unit: SHYRA AC BA
  • Type of limit switches: Electromechanical
  • Opening time: 8s
  • Use frequency: 600 cycles per day
  • Slowdowns: No
  • Lock: Mechanical
  • Unlock: Personalized key
  • Reaction to obstacle: Sensitive edge strip
  • Usable passage light: 6 m
  • Use frequency: medium intensive
  • Class tightness: IP24
  • Coating: RAL7015 cataphoretic coating and paint
  • Operating temperature range: from -20°C to +55°C
Download
User manual 3.27 MB
