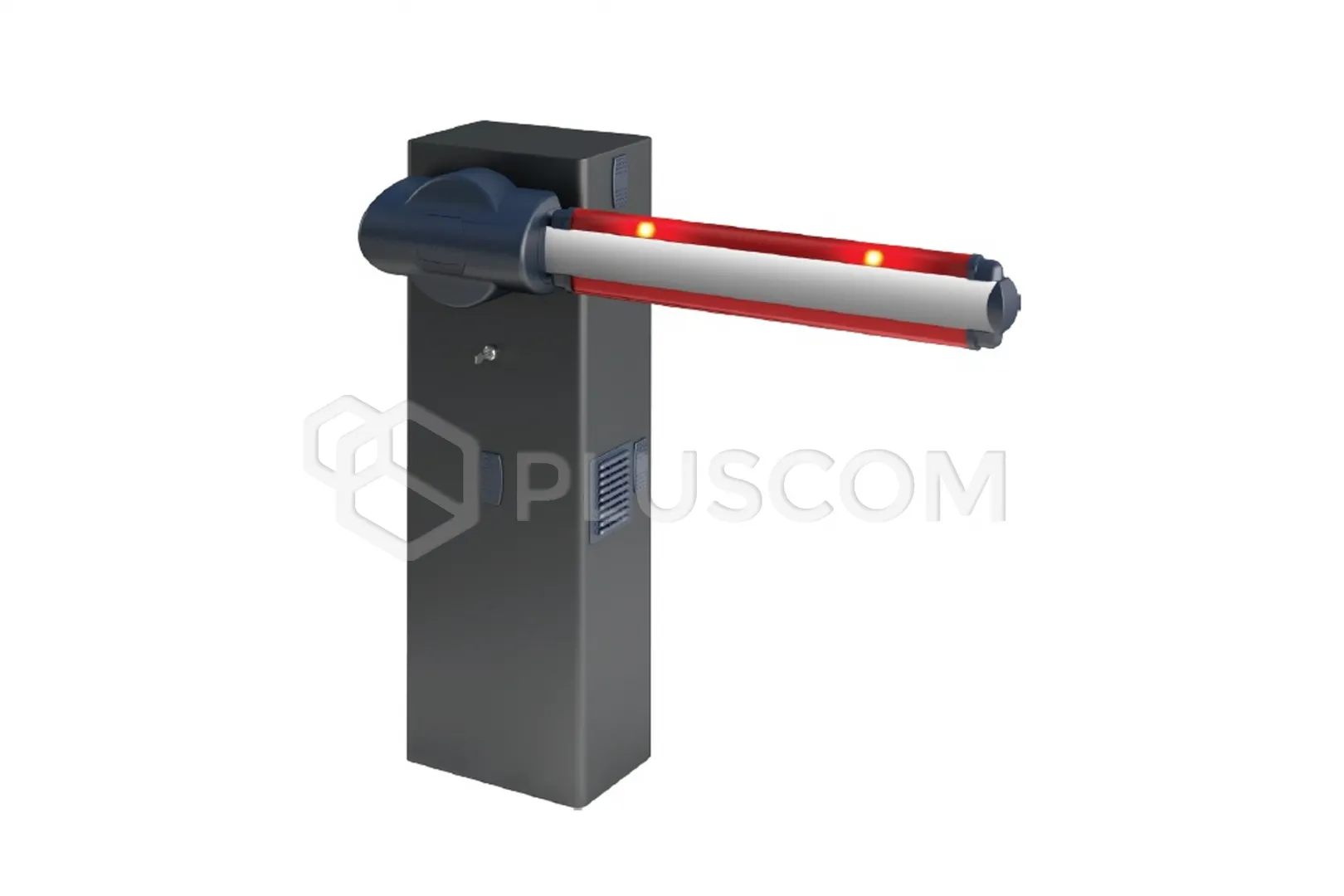

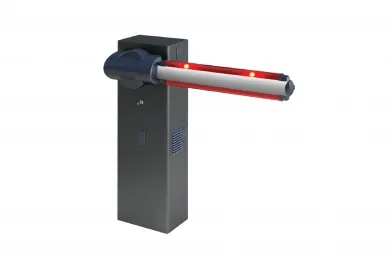

BFT 2605321 MOOVI 30S Barrier column up to 3m

1731,56 EUR including 19.00% VAT
Product code: #38113
Manufacturer: BFT
  • Permissible arm lengths: 3m
  • Opening time: 1.5s
  • Engine supply voltage: 230V
  • LEO D CBB control unit
  • Color gray RAL 7015
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2608500 Optional mounting base for MOOVI/GIOTTO barriers BFT 2600129 SB Protection of the passage under the barrier arm, so-called BFT 2605041 OMEGA AQ INOX - Flat arm holder for MOOVI barrier BFT 2601005 MASTER&SLAVE connection card (QSC-D, RIGEL5, LEO MV-D) BFT 2600953 Safety rubbers for barrier arm 3 m long BFT 2600796 Set of accessories for mounting the tubular arm for GIOTTO/MOOVI series barriers (OMEGA AT - N999513) BFT 2600781 Aluminum tube arm with stickers, length 3.25 ATG 3 BFT 2600775 BIR C Low-profile rubber strip with aluminum mounting strip, price per 1 m BFT 2600538 Flat barrier arm L= 3.30 m. MOOVI/GIOTTO (AQ3) BFT 2600216 Fixed arm support FAF 2

BFT 2605321 MOOVI 30 S CENTRAL UNIT FOR ARM UP TO 3m (P940064 00002)


The MOOVI 30 S barrier is designed for entrances with a width of 3m or more. It has a 230 V motor with its own cooling system.
Barriers adapted to intensive work, approx. 3000 cycles per day.

The barrier has a built-in LEO D CBB control unit equipped with an LCD display and is characterized by:
  • The LEO D CBB control unit has an eeLink connector (memory management of the integrated CLONIX 64 receiver)
  • 4-channel receiver for 63 remote controls, additional comb connector for connecting the CLONIX receiver (pluggable)
  • OPEN-CLOSE control, START. Built-in communication port for connecting B EBA expansion cards, closing after photo, possibility to disable the Encoder, 24Vac accessory power supply, electronic torque regulation
  • Possibility to connect two units in MASTER & SLAVE mode, using B EBA RS485 (U-LINK)
  • Changing parameter values, logic, diagnostics using the display and +, -, OK buttons
  • Additionally, it has 3 SAFE inputs and 4 IC outputs and a programmable AUX3
MOOVI 30 S is equipped with a slowdown function when opening and closing.
Safety is ensured by the obstacle detection function implemented via an optical encoder. The barrier stops immediately and reverses movement when it hits an obstacle.

The integrated radio receiver with a dynamically changing code allows you to store up to 63 remote controls. Both flat and tube arms can be used with the units. The barrier is factory-fitted for left-hand side mounting, looking from the property.

FEATURES:

  • 230 V powered motor with its own cooling system
  • release function when closing and opening
  • built-in LEO MV D control unit with LCD display
  • safety is ensured by the obstacle detection function implemented via an optical encoder
  • the barrier stops immediately and reverses its movement when it hits an obstacle
  • integrated radio receiver with dynamically changing code allows to memorize 63 remote controls
  • both flat and tube arms can be used with the unit
  • barriers adapted for intensive work, approx. 3000 cycles per day
  • opening time 1.5 seconds
  • RAL 7015 color
Download
User manual 3.27 MB
