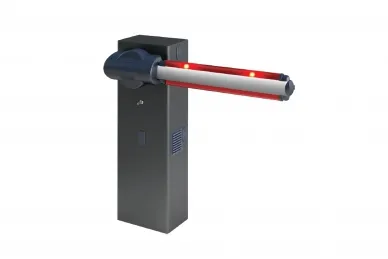

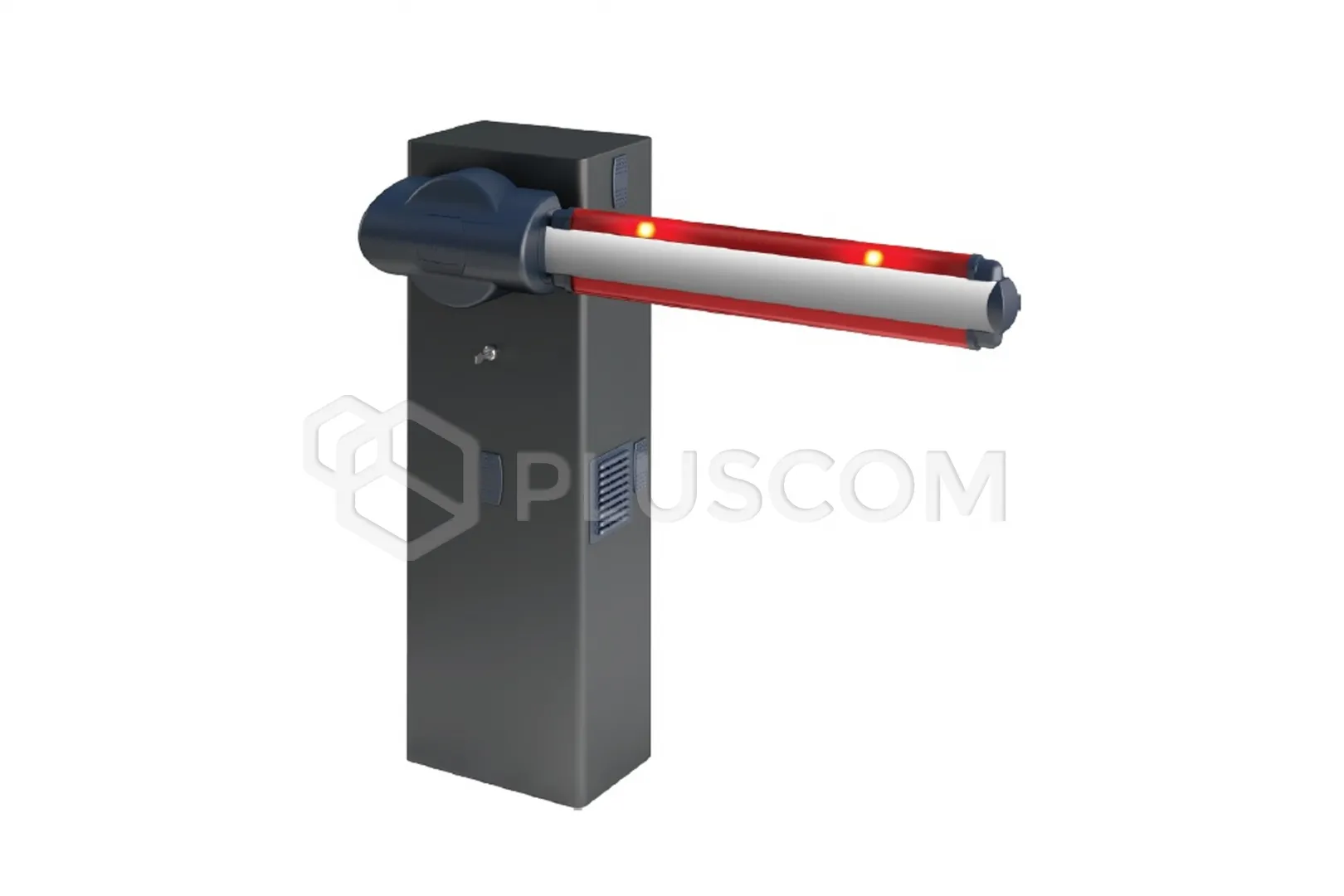

BFT 2605320 MOOVI 30 RMM RAL Barrier column up to 3m

3585,41 EUR including 19.00% VAT
Product code: #38112
Manufacturer: BFT
  • Permissible arm lengths: 3m
  • Opening time: 4s
  • Engine supply voltage: 230V
  • LEO D CBB control unit
  • RAL color on individual request
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2600135 3m or 4.5m arm lighting for MOOVI and GIOTTO barriers BFT 2611133 Barrier arm stickers (set of 12) BFT 2600134 GAMA AQ AT Movable arm support with shock absorber for barriers BFT 2608500 Optional mounting base for MOOVI/GIOTTO barriers BFT 2600129 SB Protection of the passage under the barrier arm, so-called BFT 2605041 OMEGA AQ INOX - Flat arm holder for MOOVI barrier BFT 2601005 MASTER&SLAVE connection card (QSC-D, RIGEL5, LEO MV-D) BFT 2600953 Safety rubbers for barrier arm 3 m long BFT 2600796 Set of accessories for mounting the tubular arm for GIOTTO/MOOVI series barriers (OMEGA AT - N999513) BFT 2600781 Aluminum tube arm with stickers, length 3.25 ATG 3

BFT 2605320 MOOVI 30 RMM RAL CENTRAL UNIT FOR ARM UP TO 3m (P940063 00102)


The MOOVI 30 RMM barrier is designed for entrances with a width of from 3m. It has a 230 V motor with its own cooling system.

The RMM version barriers have a built-in LEO D CBB control unit equipped with an LCD display and are characterized by:
  • The LEO D CBB control unit has an eeLink connector (memory management of the integrated CLONIX 64 receiver)
  • 4-channel receiver for 63 remote controls, additional comb connector for connecting the CLONIX receiver (pluggable)
  • OPEN-CLOSE control, START. Built-in communication port for connecting B EBA expansion cards, photo lock, possibility of disabling the Encoder, 24Vac accessory power supply, electronic torque control
  • Possibility of connecting two units in MASTER & SLAVE mode, using B EBA RS485 (U-LINK)
  • Changing parameter values, logic, diagnostics using the display and +, -, OK buttons
  • Additionally, it has 3 SAFE inputs and 4 IC outputs and a programmable AUX3
The RMM version is equipped with a release function when opening and closing.
Safety is ensured by the obstacle detection function implemented via an optical encoder. The barrier immediately stops and reverses movement when it hits an obstacle.

The integrated radio receiver with a dynamically changing code allows you to memorize up to 63 remote controls. Both flat and tubular arms can be used with the units. The barrier is factory-fitted for installation on the left side, when viewed from the property.

FEATURES:

  • 230 V powered motor with its own cooling system
  • release function when closing and opening
  • built-in LEO MV D control unit with LCD display
  • safety is ensured by the obstacle detection function implemented via an optical encoder
  • the barrier stops immediately upon hitting an obstacle and reverses movement
  • integrated radio receiver with a dynamically changing code allows for memorizing 63 remote controls
  • both flat and tube arms can be used with the unit
  • barriers adapted for intensive work, approx. 1200 cycles per day
  • opening time 4 seconds
  • RAL color on individual request
Download
User manual 3.27 MB
