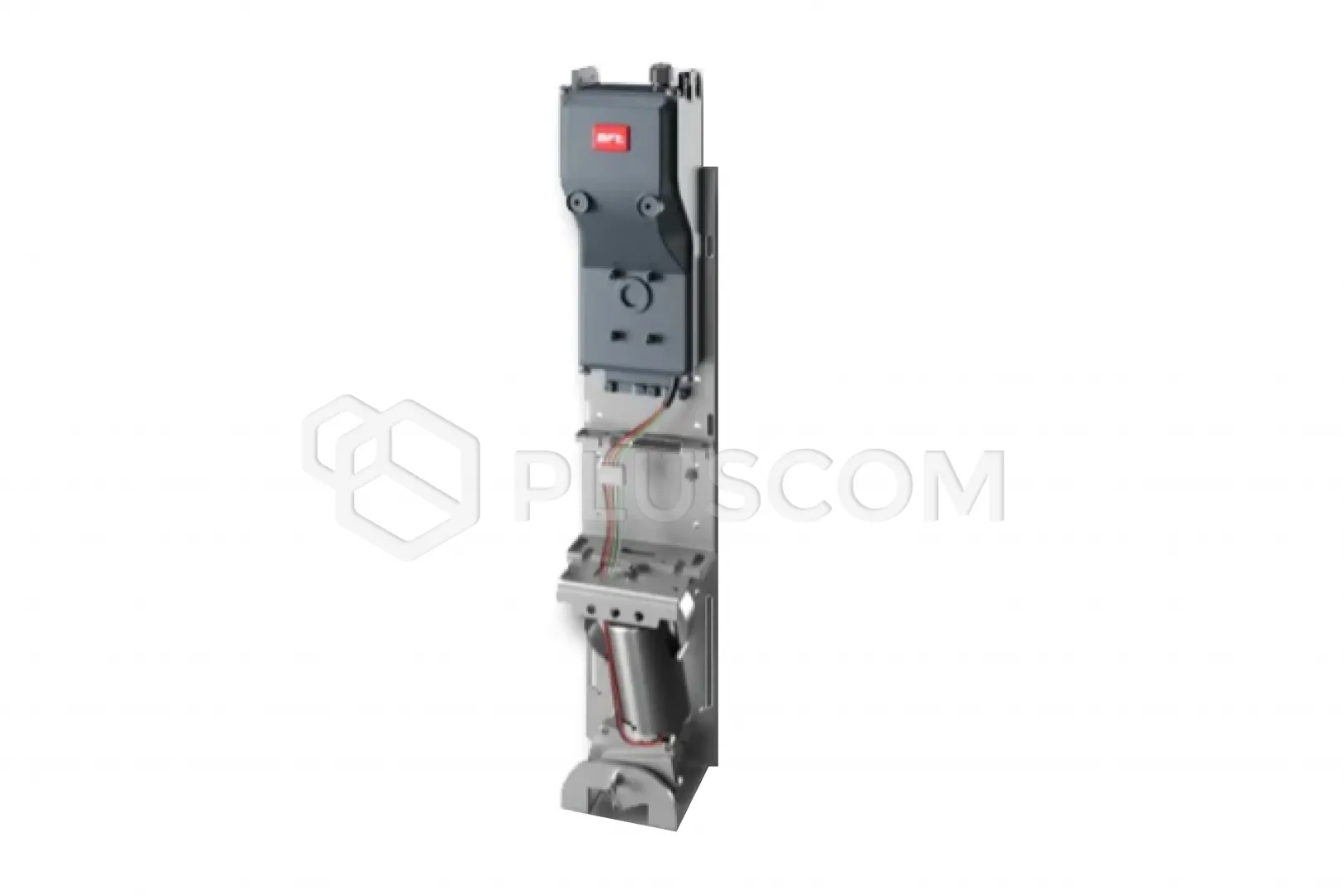

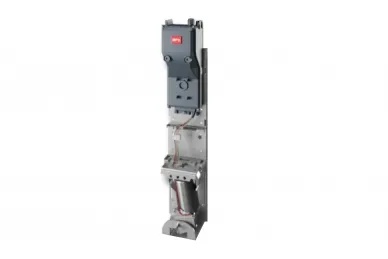

BFT 2601466 HIDE SL SMART BT A300 sliding gate actuator

BFT 2601466 HIDE SL SMART BT A300 Sliding Gate Operator

24 V operator with control unit for sliding gates up to 300 kg, which can be installed inside the gate post. D-Track and U-Link. Gate panel speed 11 m/min. For steel and aluminum posts.

FEATURES:

• Smaller size: the aesthetics and elegance of the solution are enhanced by the possibility of incorporating the gear motor, control unit and accessories into the gate structure, allowing the automation to be completely hidden
• Easy-to-use release mechanism: if necessary, simply use the special release key on the outside of the specially machined post to disconnect the gate from the rack, then manually open and close the gate
• D-TRACK: dynamic movement, providing the necessary traction for safe operation. This intelligent torque control system is based on microprocessor technology used in BFT control units. Collects data from multiple sensors, updating the level of traction required to move the gate

Precise, direct and reliable technology BFT technology powered by 24V current ensures optimal performance with punctual adjustment of the slowdown during closing and opening. Its fundamental aspect is safety, guaranteeing immediate stopping and reversing of the movement in the event of encountering obstacles. The efficiency of the technology is a guarantee of the reliability of the product.

Technical data:

• Limit switch type Encoder
• Use frequency 30 c/h
• Operating environment (max.) -20 ÷ 50 °C
• Gear module 4
• Board power supply 230 V
• Connectivity YES
• Slowdown YES
• Motor voltage 24 V
• Mechanical lock
• Power consumption 50 W
• Unlocking Hexagonal head key
• Max. door/gate weight 300 kg
• D-Track impact response
• Wing speed 11 m/min
• VENERE BT A HIDE SL control unit
• IP24 protection class
