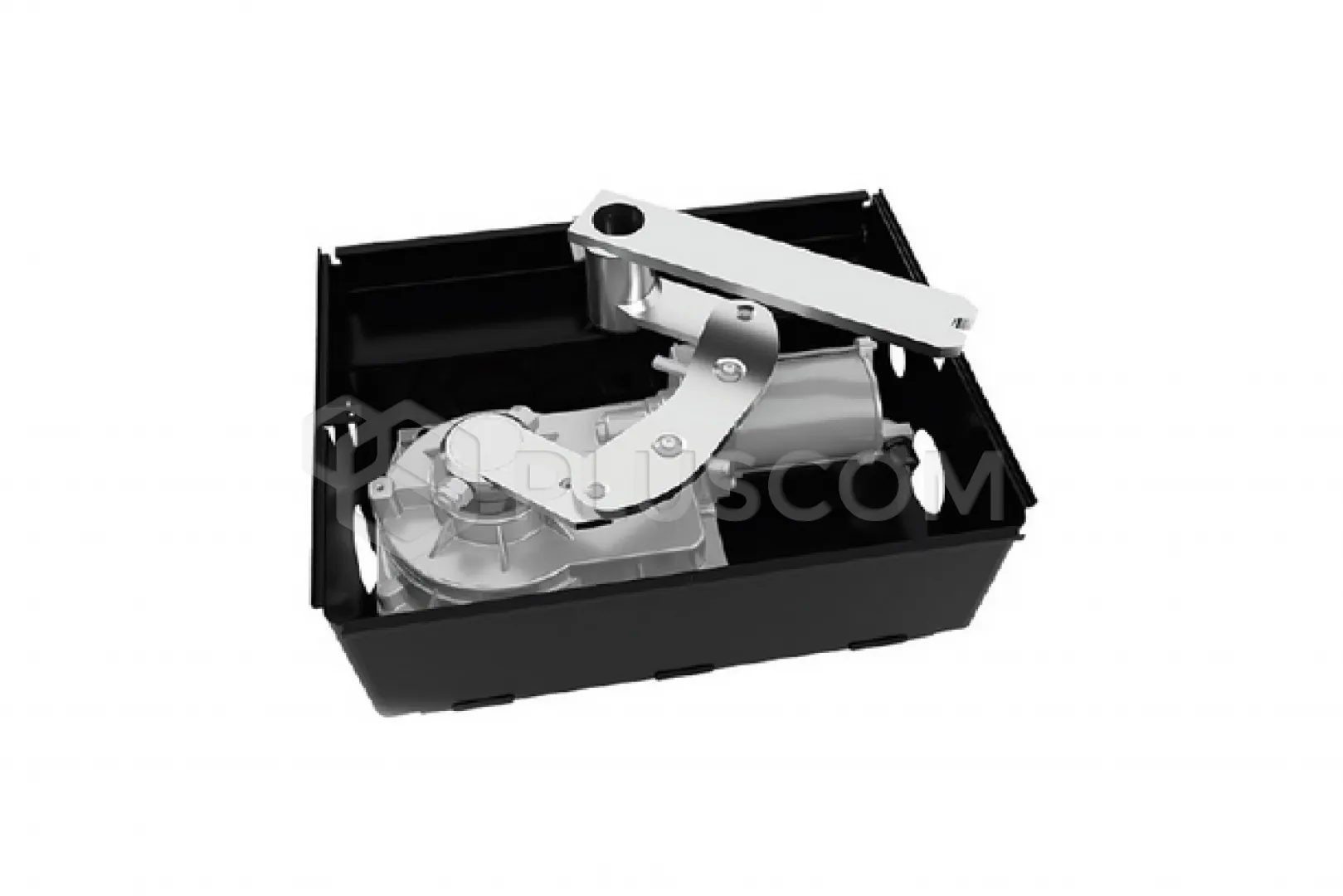

BFT 2601455 Underground swing gate operator ELI BT A40

BFT 2601455 Underground swing gate operator ELI BT A40

BFT 2601455 ELI BT A40 is an advanced swing gate operator designed to provide reliable and safe entrance automation. This underground electromechanical actuator is the ideal solution for gates weighing up to 500 kg and with a leaf length of up to 4 meters.

FEATURES:

• Underground actuator: Aesthetic and discreet installation that does not disturb the appearance of the surroundings
• High efficiency: Powerful engine ensures smooth and fast opening and closing of the gate
• Safety: Advanced security systems, including obstacle detection, protect both users and property
• Easy installation: Intuitive installation and configuration, thanks to which the drive can be quickly started
• Durability: Solid construction and high-quality materials guarantee long service life
• Quiet operation: Minimal noise level during operation

Technical data:

• Control unit: THALIA, THALIA POWER
• Power supply voltage: 230 V
• Motor supply voltage: 24 V
• Max. torque: 350 NM
• Max. door/gate wing width: 4m (2.5m without electric lock)
• Max. door/gate wing weight: 500 kg
• Max. opening angle: 120 degrees
• Opening time to 90 degrees: 14 (with slowdown)
• Limit type: Encoder
• Limit type (optional): Magnetic
• Slowdown: YES
• Lock: Mechanical (on opening and closing, limiters)
• Unlocking: Personalized key
• Obstacle response: D-Track
• Mechanical limiters: On opening and closing
• Speed: 2.20 RPM(rev./mic)
• Use frequency: Intensive
• Tightness class: IP67
• Operating temperature range: -20 +55 degrees Celsius
