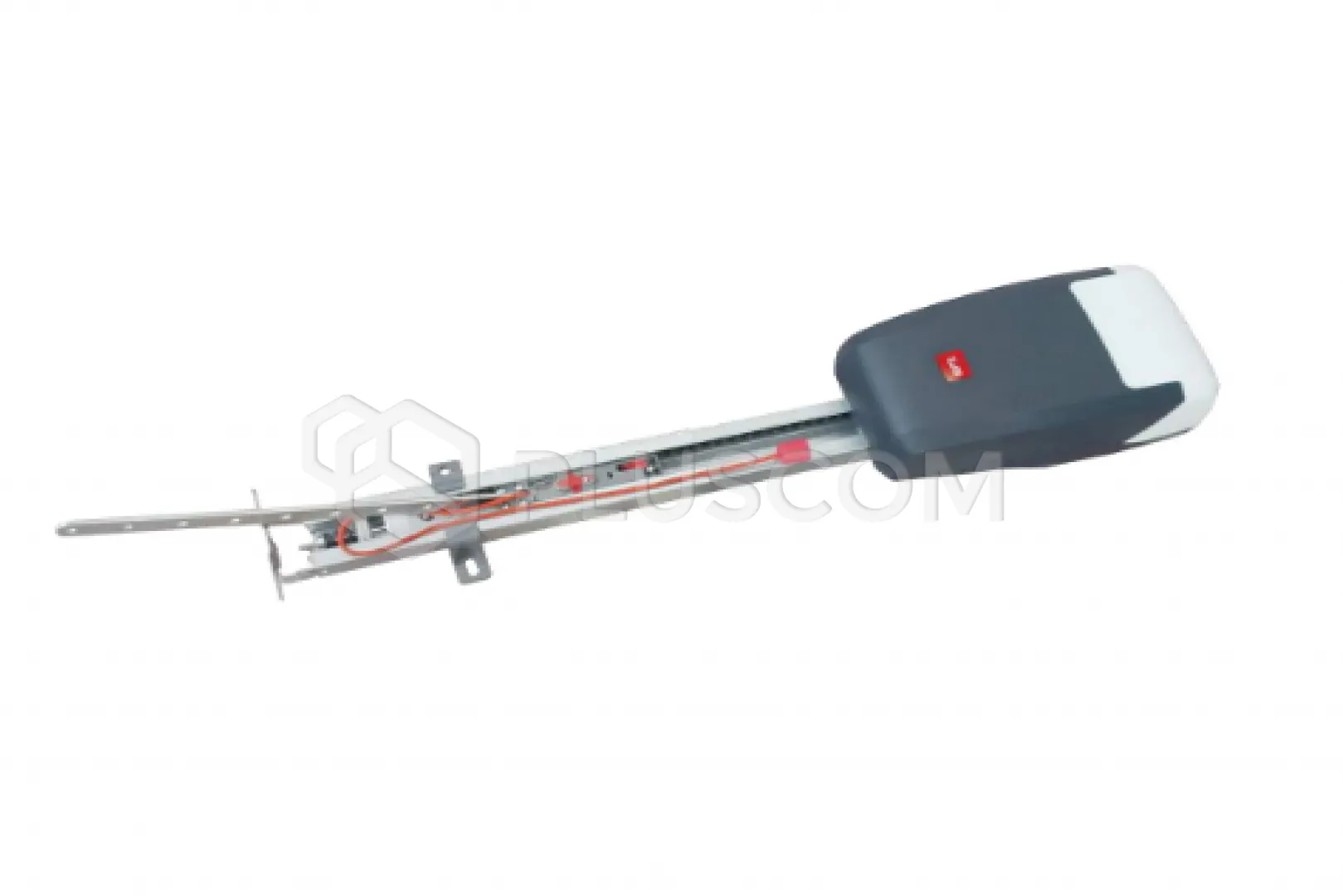

BFT 2601449 Garage door operator TIZIANO B GDA 260 S01

BFT 2601449 TIZIANO B GDA 260 S01 garage door operator

WITHOUT GUIDE RAIL

With a thickness of just 13 centimetres, TIZIANO is one of the most compact operators available on the market, which allows it to be installed in any architectural setting.
Thanks to the built-in radio receiver of the control unit, TIZIANO can memorise the codes of 10 MITTO or KLEIO remote controls and/or wireless control systems such as MIMEPAD or T-BOX.

FEATURES:

• Anti-burglary locking system: The exclusive track-carriage system allows the door/gate to be locked in the closed position even after manual movement in emergency conditions.
• D-TRACK: Safety above all. This is the fundamental principle on which all BFT brand actuators, including TIZIANO, are based. The intelligent D-Track movement control system allows the microprocessor to know the exact position and speed of the gate at any time, guaranteeing absolute movement perfection, the safest and most reliable control and protection against crushing in the market, and automatic adjustment of movement to changes in climatic conditions and the gate's degree of wear
• Limit switch with encoder: Encoder and D-Track combined in a single actuator The high level of technology and reliability of the system allow the elimination of limit switch edges, while still guaranteeing maximum precision in stopping and positioning the gate in the desired position
• New coding system for direct cloning of remote controls Based on microprocessor technology, the system allows any MITTO remote control to be cloned and converted into a PITTO REPLAY remote control. The first radio remote control will "transmit" the correct code to the second remote control for automatic storage in the receiver upon first use. And thanks to the use of the Rolling Code secure data transfer system, maximum safety is ensured during all these procedures
• Precise, direct and reliable technology BFT technology powered by 24 V current ensures optimum performance with punctual adjustment of the slowdown during closing and opening. Its fundamental aspect is safety, guaranteeing immediate stopping and reversal of travel in the event of encountering obstacles. Efficiency of technology is a guarantee of product reliability

Technical data:

• Gate surface - 10 m²
• Wing speed - 6.6 m/min
• Limit switch type - Encoder
• Slowdown - YES
• Mechanical lock
• Unlocking - Steel rope or cable
• Impact response - D-Track
• Use frequency - Semi-intensive
• IPX0 protection class
• Working environment (max.) - -20 ÷ 60 °C
• Connectivity - no
• Control unit - VENERE B GDA
• Nominal voltage - 24 V
• Power consumption - 100 W
• Max. door/gate weight - 60 kg
